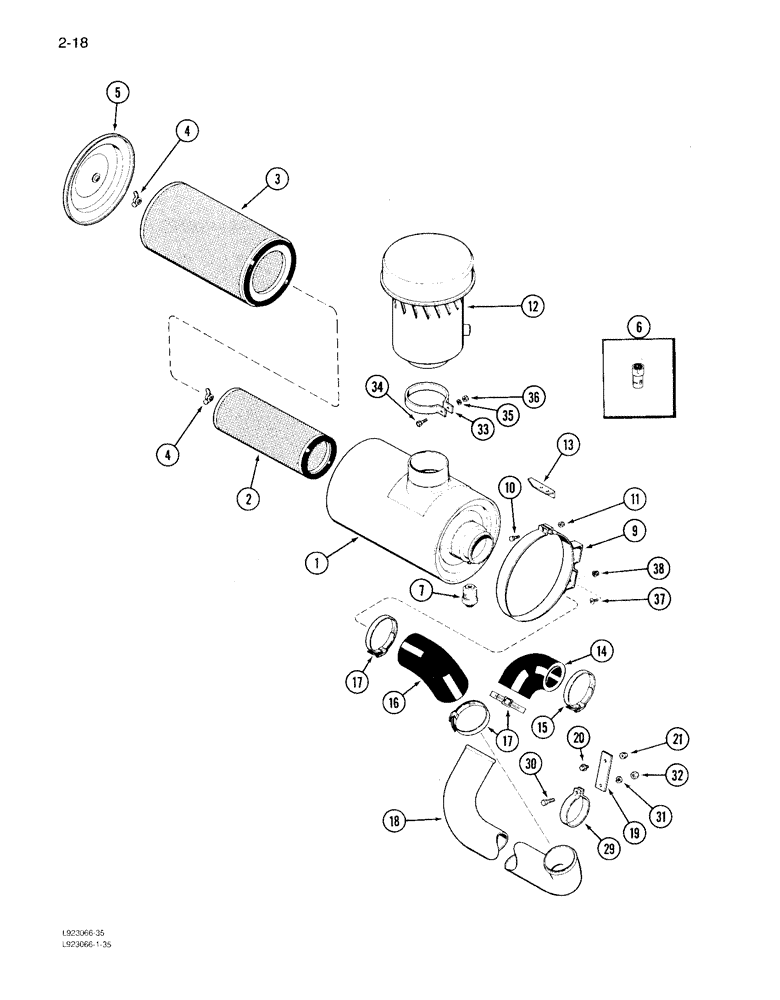

Запчасти Case IH 1640 (2-18) - AIR CLEANER (01) - ENGINE

1541611C1

AIR CLEANER

CLEANER ASSEMBLY - air , engine (Used with 1541610C1 indicator), Includes: Ref. 1 - 5

1шт.

A184799

AIR CLEANER

CLEANER ASSEMBLY - air, engine (Used with 582214C1 indicator) (Shown), Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner (Order Assembly)

1шт.

2

932390C1

AIR FILTER

ELEMENT - safety, secondary

1шт.

3

932391C2

AIR FILTER

ELEMENT - primary

1шт.

4

L35499

NUT

ASSEMBLY - retainer, element

2шт.

ref 4 WING NUT IS L37977 AND SEAL A44187 bp

1шт.

5

A189038

COVER

ASSEMBLY - air cleaner

1шт.

Ref 5: WINGNUT FOR END OF COVER IS D37977 (AFTER CROSSING DONALDSON NO. P10-2144).....D37977 SUBS TO D78354. GASKET FOR THE WINGNUT IS D37976 PER QUALITY COMMENTS ON A189038 7/25/01 BW CAM

1шт.

6

582214C1

INDICATOR

- air restriction

1шт.

7

1541610C1

INDICATOR

- air restriction

1шт.

9

259922C91

BAND

- air cleaner mounting, Air Induction System

2шт.

10

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Air induction system Hex, 5/16"-18 x 2", G5

3шт.

11

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Air induction system

3шт.

12

1275728C1

PRECLEANER

- air induction (Includes Ref 33 through 36), system

1шт.

13

1970448C1

SUPPORT

- air cleaner, induction system

1шт.

14

548222R1

INTAKE AIR HOSE,3.00" ID, 4.00" ID x 4.25"

ELBOW - inlet engine, air induction system

1шт.

15

146569C1

CLAMP

- hose, No. 56 shoe, Type F, air induction system

1шт.

16

218899R1

ELBOW

- air cleaner outlet, induction system

1шт.

17

146570C1

CLAMP

- hose, No. 72 shoe, Type F, air induction system

3шт.

18

1970446C2

AIR INTAKE TUBE

TUBE - air cleaner outlet, induction system

1шт.

19

187509C1

BAR

BRACKET - tube support, air induction system

1шт.

20

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch, air induction system

1шт.

21

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC, air induction system

1шт.

29

1970473C1

CLAMP

- inlet tube retaining, air induction system

1шт.

30

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, air induction system

1шт.

31

492-11038

LOCK WASHER,3/8"

air induction system 3/8"

1шт.

32

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Air induction system 3/8"-16, G5

1шт.

33

650986C1

CLAMP,69.85mm - 82.55mm

- precleaner retaining, air induction system

1шт.

34

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, air induction system

1шт.

35

492-11038

LOCK WASHER,3/8"

air induction system 3/8"

1шт.

36

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Air induction system 3/8"-16, G5

1шт.

37

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch, air induction system

4шт.

38

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC, air induction system

4шт.
