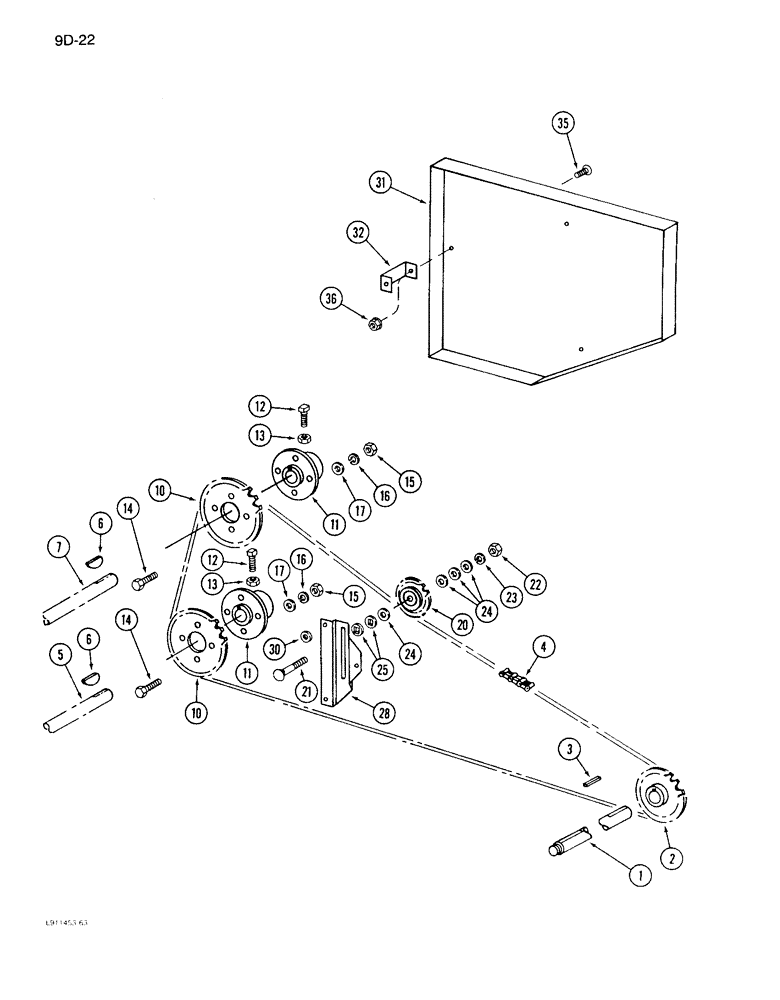

Запчасти Case IH 1640 (9D-22) - TAILINGS ELEVATOR DRIVE (16) - GRAIN ELEVATORS & AUGERS

1

1321347C1

SHAFT

- drive, jackshaft

1шт.

2

192139C2

SPROCKET

- drive 25T

1шт.

3

581306R1

KEY,5/16" Sq x 1 1/4", Par

1шт.

4

REF

INSTRUCTION

CHAIN ASSEMBLY - tailings drive

1шт.

Use 155 links of No. 50 chain, two connecting links 1310D, one offset link 1315D and one roller link 1309D.

1шт.

5

REF

INSTRUCTION

AUGER - delivery (See Figure 9D-16)

1шт.

6

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

7

191785C1

SHAFT

- head, elevator

1шт.

10

1345472C1

SPROCKET

ASSEMBLY - elevator drive (27 tooth) (Replaces 1979808C1)

2шт.

10

1979808C1

SPROCKET ASSY.

SPROCKET - chain drive, with hub (Replaces 188188C1)

2шт.

11

1302217C1

HUB

- sprocket

2шт.

12

26202R1

SET SCREW

- square head set, 3/8 NC x 1-1/4 inch

4шт.

12

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

SCREW - set, square head, 3/8 NC x 1 inch

4шт.

13

425-146

JAM NUT,3/8" - 16, Gr 5

- hex jam, 3/8 inch NC

4шт.

14

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

8шт.

15

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

16

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

17

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

8шт.

20

631905R91

SPROCKET

- idler

1шт.

21

411-1040

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT - round head square neck, 5/8 NC x 2-1/2 inch, Grade 2

1шт.

22

425-1010

NUT,5/8"-11, G5

1шт.

23

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

24

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

4шт.

25

N11720

WASHER

- square hole flat, 21/32 x 1-1/4 x 3/32 inch

2шт.

25

498-81009

SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole

- square hole flat, 21/32 x 1-1/2 x 3/32 inch

2шт.

28

1302069C2

SUPPORT

BRACKET - support, sprocket

1шт.

30

495-81113

WASHER,0.34" ID x 0.75" OD x 0.18" Thk

- flat, 11/32 x 3/4 x 5/32 inch

3шт.

31

195099C1

SHIELD

- sprocket (If equipped)

1шт.

32

191775C1

CHANNEL

SUPPORT - shield

3шт.

35

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

BOLT - slotted truss head, 5/16 NC x 1 inch

3шт.

36

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

6шт.
