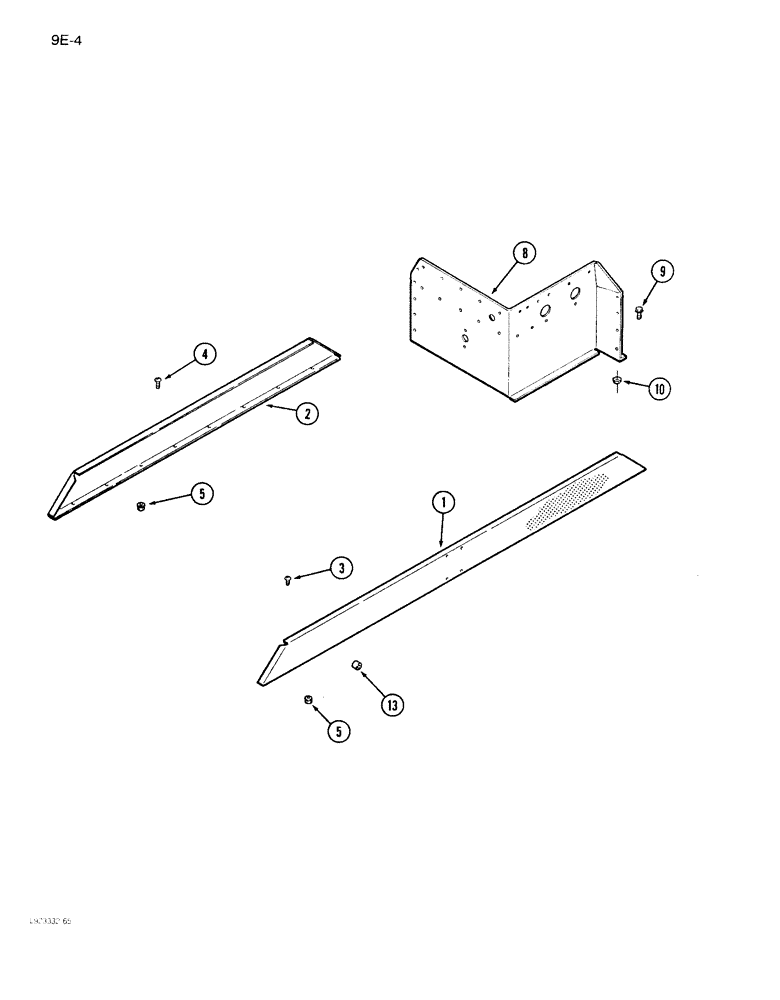

Запчасти Case IH 1640 (9E-04) - GRAIN TANK EXTENSIONS (17) - GRAIN TANK & UNLOADER

1

183157C2

SUPPORT

- grain tank, front extension

1шт.

2

183276C2

SUPPORT

- grain tank, rear extension

1шт.

3

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 1/2 inch

11шт.

4

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

1шт.

5

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

22шт.

6

33847A

SPACER,1/4" Pipe x 1 13/16"

- tank extension

4шт.

8

1317644C2

SUPPORT

- extension, left center

1шт.

9

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

6шт.

10

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

6шт.
