(9E-16) - GRAIN TANK UNLOADER BELT DRIVE, P.I.N. JJC0097103 AND AFTER (CONTD)

Запчасти Case IH 1640 (9E-16) - GRAIN TANK UNLOADER BELT DRIVE, P.I.N. JJC0097103 AND AFTER (CONTD) (17) - GRAIN TANK & UNLOADER

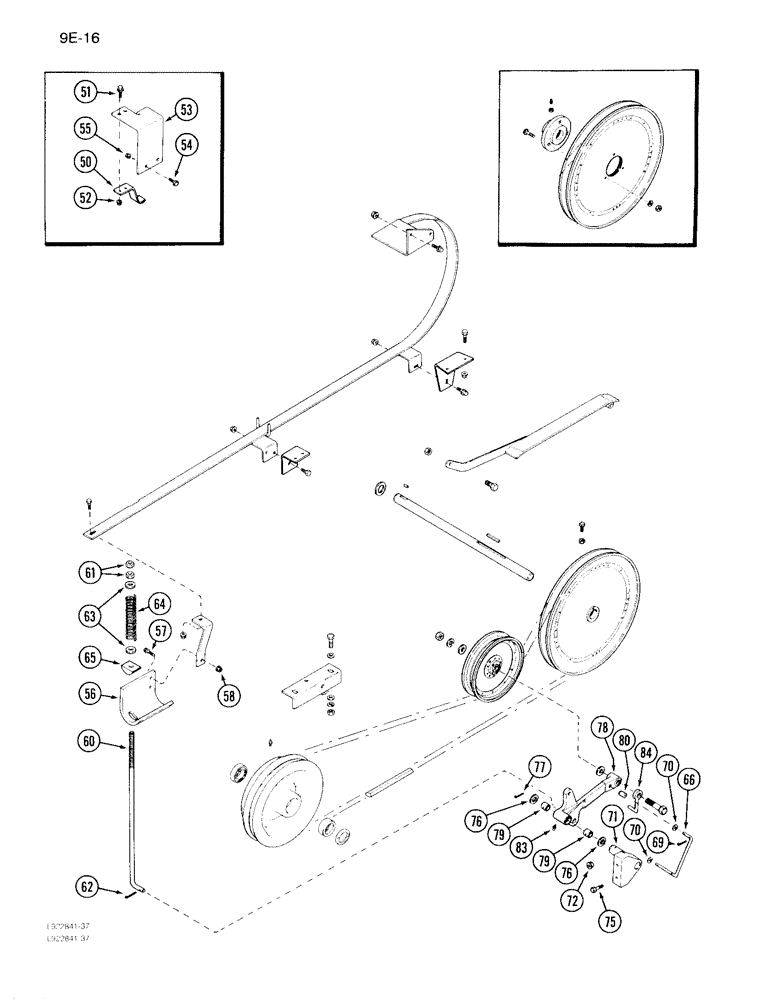

Схема запчастей Case IH 1640 - (9E-16) - GRAIN TANK UNLOADER BELT DRIVE, P.I.N. JJC0097103 AND AFTER (CONTD) (17) - GRAIN TANK & UNLOADER
51
71
50
52
58
70
53
76
78
60
75
69
72
63
64
79
76
79
83
62
65
55
77
84
57
56
61
80
70
54
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

50

193627C1

SUPPORT

- trap, belt (Prior to P.I.N. JJC0097190)

1шт.

51

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW - lock, 3/8 NC x 1 inch (Prior to P.I.N. JJC0097190)

2шт.

52

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC (Prior to P.I.N. JJC0097190)

2шт.

53

1989208C1

CHANNEL

- inner, belt guide (Prior to P.I.N. JJC0097190)

1шт.

54

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

(Prior to P.I.N. JJC0097190) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

55

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC (Prior to P.I.N. JJC0097190)

2шт.

56

185062C1

SUPPORT

- spring

1шт.

57

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

2шт.

58

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

60

185061C1

ROD

- tightener

1шт.

61

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

62

432-1216

COTTER PIN,3/16" x 1"

1шт.

63

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

64

391745R1

SPRING

- arm, tightener

1шт.

65

194652C1

PIVOT

- rod

1шт.

66

193820C1

ROD

- retainer

1шт.

69

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

69

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

4шт.

70

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch

4шт.

71

191464C1

SUPPORT

- arm, tightener

1шт.

72

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

75

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

- hex flange, 5/16 NC x 1-1/4 inch

2шт.

76

495-81039

WASHER,25/32" x 1 1/4" x .120"

- flat, 25/32 x 1-1/4 x 7/64 inch

3шт.

77

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

78

185059C93

LEVER ASSY.

ARM ASSEMBLY - tightener, Includes: Ref. 79 - 83

1шт.

79

382638R2

BUSHING,19.07mm ID x 22.24mm OD x 19.05mm L

- arm

2шт.

80

1302225C1

BUSHING

- arm

1шт.

83

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

84

194894C1

ROD

- belt, upper

1шт.
