(9E-26) - LOWER GRAIN TANK UNLOADER AUGER, PRIOR TO P.I.N. JJC0097103

Запчасти Case IH 1640 (9E-26) - LOWER GRAIN TANK UNLOADER AUGER, PRIOR TO P.I.N. JJC0097103 (17) - GRAIN TANK & UNLOADER

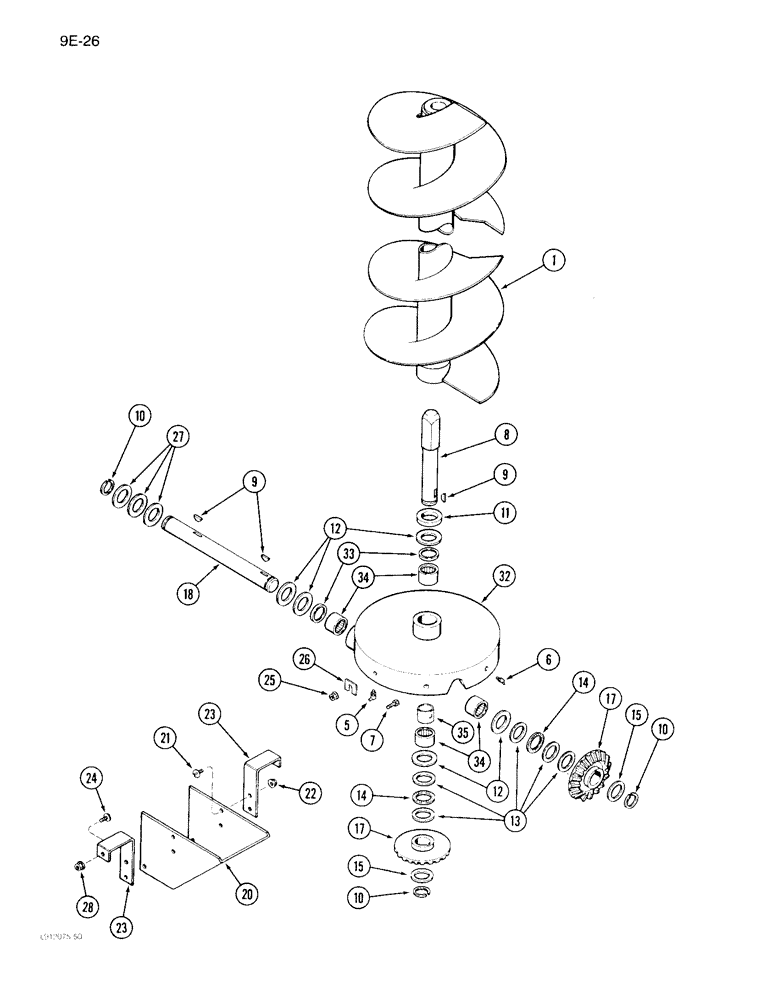

Схема запчастей Case IH 1640 - (9E-26) - LOWER GRAIN TANK UNLOADER AUGER, PRIOR TO P.I.N. JJC0097103 (17) - GRAIN TANK & UNLOADER
13
34
12
27
23
6
9
23
15
32
17
33
5
34
11
12
10
8
24
1
28
18
14
9
21
7
14
10
20
10
15
17
25
35
22
26
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

192835C1

AUGER

- unloader, vertical

1шт.

5

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

1шт.

6

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING - 45 degree lube, 1/4 inch taper drive

1шт.

7

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch

7шт.

8

1327739C1

SHAFT

- auger, upper

1шт.

9

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

2шт.

10

A21619

CIRCLIP

RING - snap, shaft

3шт.

11

183490C1

WASHER

WASHER - shaft, upper

1шт.

12

188354C1

WASHER,35.71mm ID x 57.15mm OD x 3.05mm Thk

- shaft

1шт.

13

1327732C1

THRUST WASHER,34.92mm ID x 52.37mm OD x 2.42mm Thk

- flat, 1-13/32 x 2 x 3/32 inch

1шт.

14

607146R91

THRUST BEARING,35.04mm ID x 51.99mm OD x 1.98mm W

- thrust

2шт.

15

188446C1

WASHER,35.71mm ID x 50.8mm OD x 0.76mm Thk

- flat, 1-13/32 x 2 x 1/32 inch

1шт.

17

186517C1

GEAR-SET

GEAR SET - auger (Set of 2)

1шт.

18

1327738C2

SHAFT

- horizontal, unloader

1шт.

19

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex flange lock, 3/8 NC x 1-1/4 inch

2шт.

20

186137C2

SUPPORT

SHIELD - drive gear

1шт.

21

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

4шт.

22

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

23

186138C1

SUPPORT

- shield

2шт.

24

937875R1

SCREW,Serr, 1/4" - 20

- slotted truss head, 1/4 NC x 3/4 inch

2шт.

25

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

14шт.

26

151670C1

SHIM

- unloader housing lower

5шт.

27

162679C1

WASHER

WASHER - spacer, flat

3шт.

28

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

2шт.

32

1327976C92

HOUSING

ASSEMBLY - drive, auger, Includes: Ref. 33 - 35

1шт.

33

157724C91

OIL SEAL

- oil, bearing

2шт.

34

188126C91

NEEDLE BEARING,Needle, 34.91mm ID x 44.46mm OD x 25.4mm W

BEARING - needle

4шт.

35

1347172C1

SPACER

- unloader vertical bearing

1шт.
