Запчасти Case IH 1640 (7-02) - MASTER BRAKE CONTROLS (5.1) - BRAKES

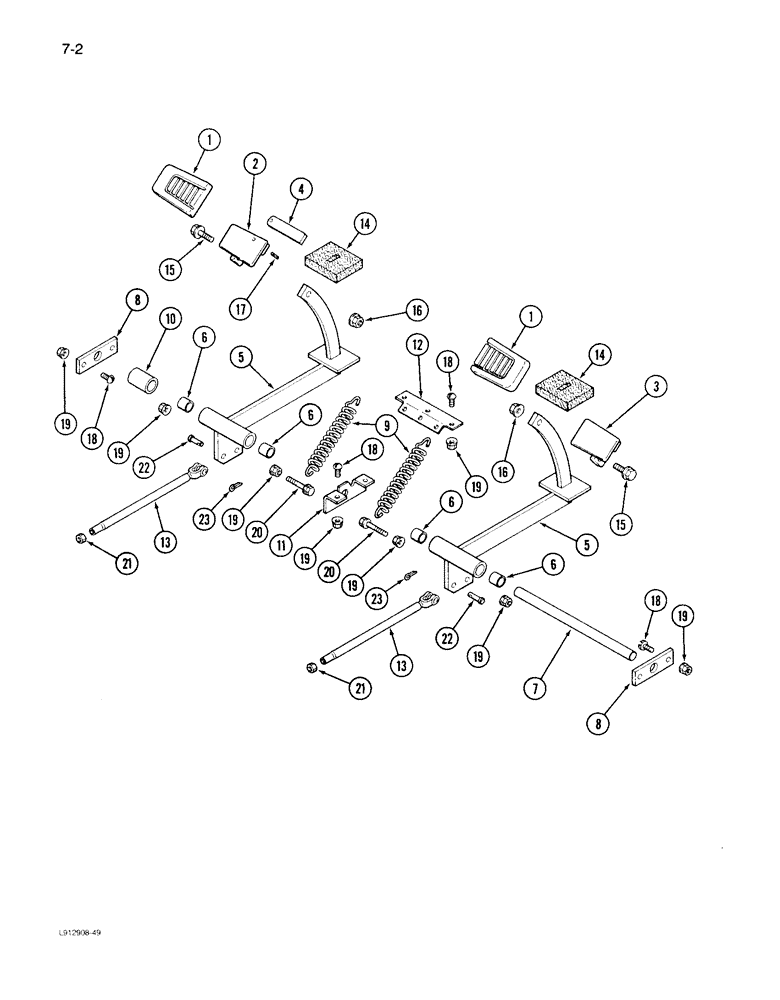

Схема запчастей Case IH 1640 - (7-02) - MASTER BRAKE CONTROLS (5.1) - BRAKES
4
18
6
8
5
19
13
23
7
16
3
12
20
2
9
6
18
1
19
1
6
19
20
23
22
21
19
21
10
15
19
6
19
14
17
18
15
14
22
11
19
18
8
13
5
19
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

863426R1

PAD

- pedal

2шт.

2

1321926C1

PEDAL

- brake, left

1шт.

3

1321927C1

PEDAL

- brake, right

1шт.

4

614251R1

BAR

- brake locking

1шт.

5

1321925C91

SUPPORT

ASSEMBLY - brake pedal, Includes: Ref. 6

2шт.

6

1280291C1

BUSHING,19.13mm ID x 22.3mm OD x 19.05mm L

- support assembly

2шт.

7

1280117C1

SHAFT

- support pivot

1шт.

8

1281794C1

PLATE

BAR - pivot shaft support

2шт.

9

398763R2

SPRING

- pedal return

2шт.

10

1280116C1

SPACER

- support pivot

1шт.

11

1321383C1

ANGLE

- pivot shaft support

1шт.

12

1327560C1

ANGLE

- spring hook

1шт.

13

1281882C2

LINK ASSY.

LINK - brake

2шт.

14

1321935C1

SEAL

- pedal

2шт.

15

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex lock, 3/8 NC x 1-1/4 inch

2шт.

15

1327764C1

BOLT,Hex Wshr Hd, 3/8" - 16 x 1 1/4"

BOLT - hex, 3/8 NC x 1-1/4 inch, black

2шт.

16

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

16

1327765C1

LOCK NUT

- hex flange lock, 3/8 inch NC, black

2шт.

17

19372R1

PIN,3.17mm OD x 22.23mm L, Coiled

1шт.

18

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

9шт.

19

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

13шт.

20

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

21

829-1310

NUT,M10, Cl 10

2шт.

22

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

23

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.
