(3-10) - FUEL INJECTION NOZZLE, 6TA-590 ENGINE, 7 MM NOZZLE TIP

Запчасти Case IH 1640 (3-10) - FUEL INJECTION NOZZLE, 6TA-590 ENGINE, 7 MM NOZZLE TIP (02) - FUEL SYSTEM

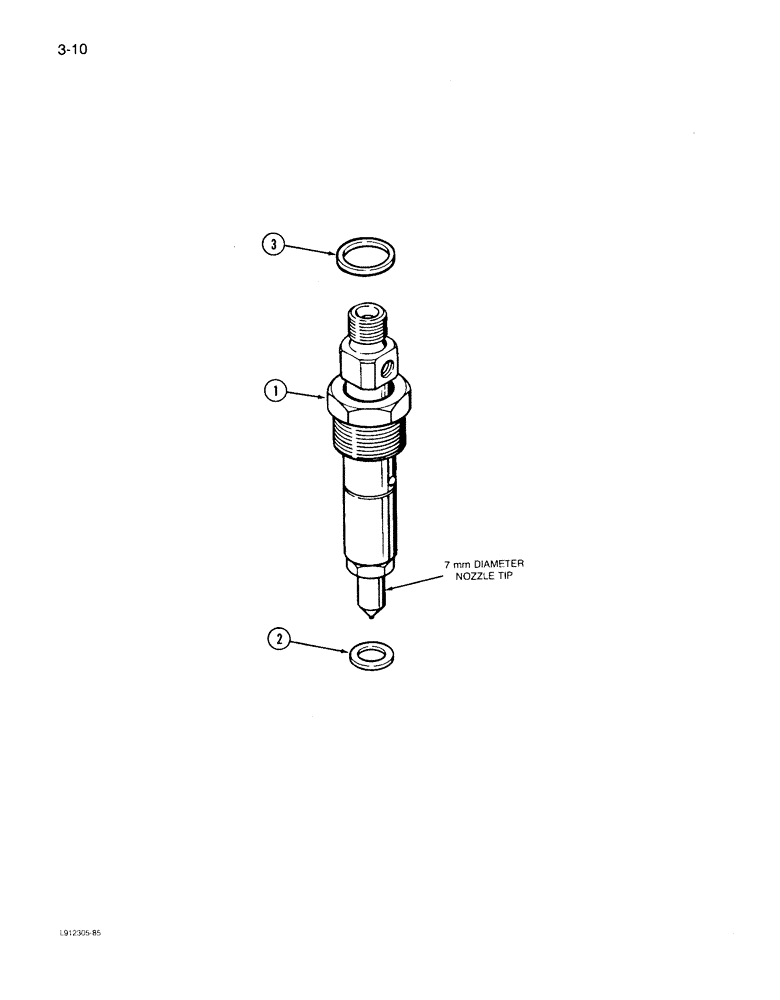

Схема запчастей Case IH 1640 - (3-10) - FUEL INJECTION NOZZLE, 6TA-590 ENGINE, 7 MM NOZZLE TIP (02) - FUEL SYSTEM
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J919332

INJECTOR ASSY.

NOZZLE ASSEMBLY - fuel injection

6шт.

2

J920174

PACKING RING

SEAL - injector

1шт.

Whenever a nozzle is removed from the cylinder head, J920174 seal must be replaced before nozzle is installed in cylinder head.

1шт.

3

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

- rectangular

6шт.
