(3-16) - FUEL TANK

Запчасти Case IH 1640 (3-16) - FUEL TANK (02) - FUEL SYSTEM

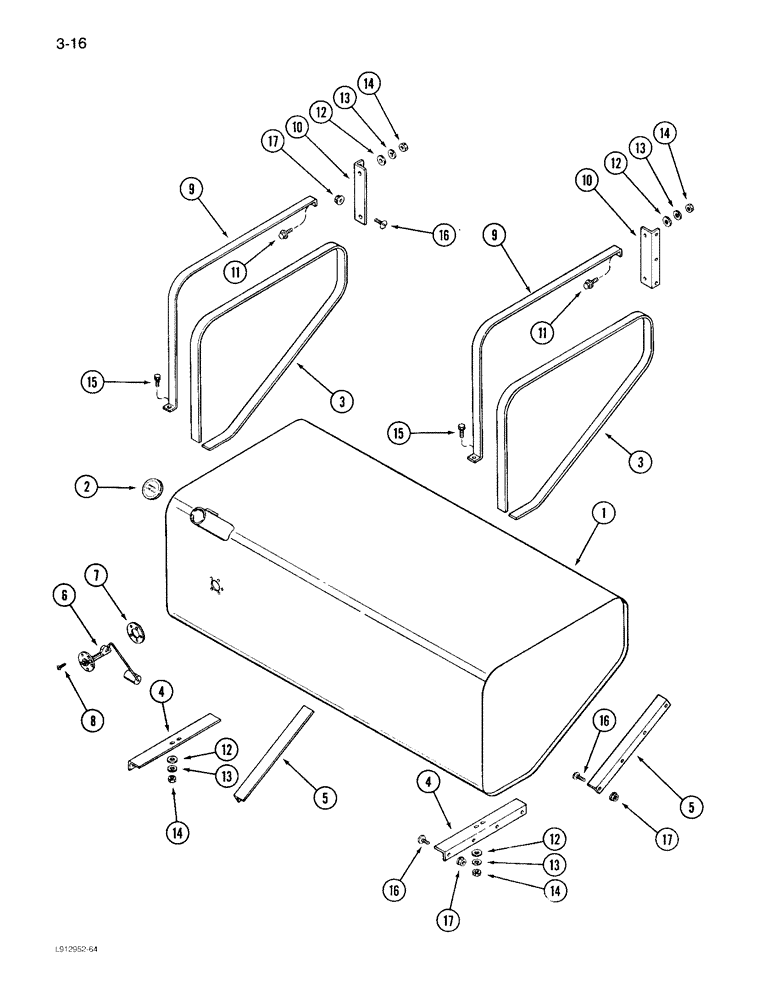

Схема запчастей Case IH 1640 - (3-16) - FUEL TANK (02) - FUEL SYSTEM
11
5
15
13
9
12
3
14
14
12
2
7
17
6
16
1
13
4
10
10
17
9
13
15
12
12
14
11
4
16
5
13
14
3
16
17
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

193550C95

FUEL TANK

TANK ASSEMBLY - fuel, Includes: Ref. 2

1шт.

2

104781C1

CAP

- fuel tank, nonvented

1шт.

2

23995DC

FILLER CAP

CAP - fuel tank, vented, extra dirty condition

1шт.

3

NSS

NOT SOLD SEPARAT

STRIP - fuel tank support, lining, 72 inch (Order 990541R1, Serial Range: cut-length)

2шт.

990541R1

FIXING STRIP

STRIP - lining, 50 foot roll

1шт.

4

192381C3

SUPPORT

ANGLE - fuel tank bottom support

2шт.

5

1302029C1

SUPPORT

ANGLE - fuel tank forward support

2шт.

6

198024C1

FUEL GAUGE

GAUGE ASSEMBLY - fuel tank (Sending Unit)

1шт.

7

168515C1

GASKET,3.05mm Thk

- fuel tank sending unit

1шт.

8

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, LOCK, , Sending unit mounting Sltd Truss Hd, #10-24 x 3/4", w/nylon LW

5шт.

9

1302031C1

STRAP

SUPPORT - fuel tank retainer (Strap)

2шт.

10

1302030C1

ANGLE

ANGLE - fuel tank front

2шт.

11

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

- hex head flange, 5/16 NC x 1-1/4 inch

2шт.

12

21496R1

WASHER

- 11/32 x 3/4 x 7/64 inch

4шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

15

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

16

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

21шт.

16

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

BOLT - slotted truss head, 5/16 NC x 1 inch

1шт.

17

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch

27шт.
