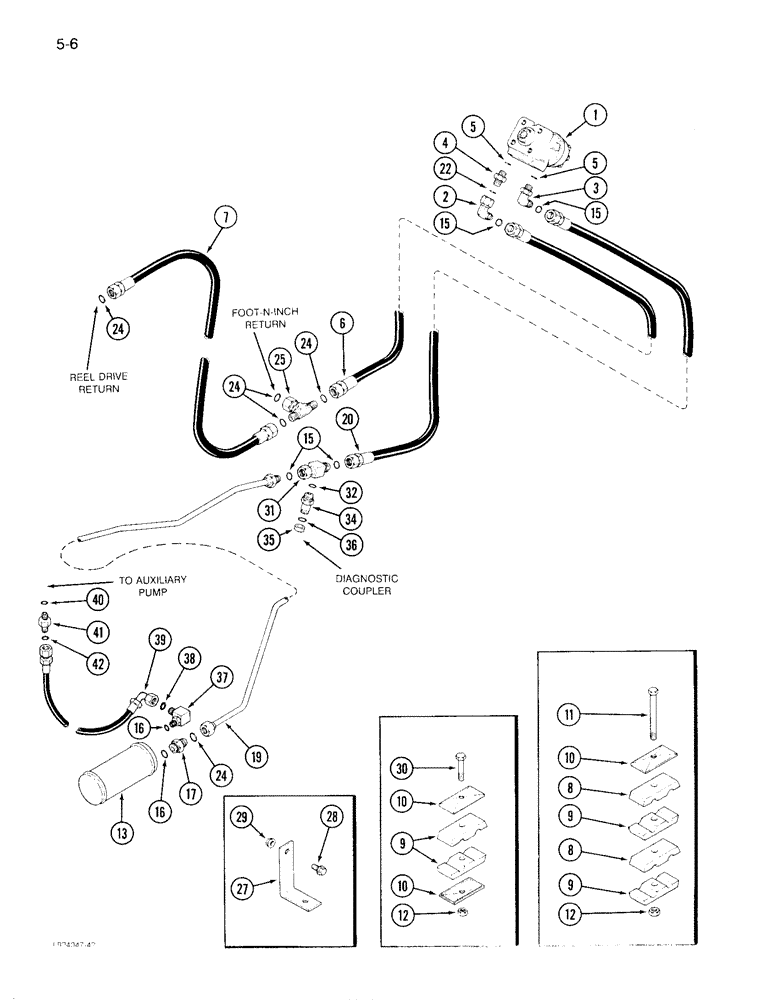

Запчасти Case IH 1640 (5-06) - STEERING SYSTEM, SUPPLY AND RETURN, SERIAL NO. JJC0097190 AND AFTER (04) - STEERING

1

REF

INSTRUCTION

PUMP ASSEMBLY - steering (See Figure 5-10)

1шт.

2

201-319

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

- 90 degree, 11/16-16 inch face x swivel face seal

1шт.

3

201-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

- 90 degree, 11/16-16 face x 3/4-16 inch adj O-ring

1шт.

4

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

ADAPTER - straight, 11/16-16 face seal x 3/4-16 inch O-ring

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

6

1989505C1

HOSE

ASSEMBLY - steering hand pump return

1шт.

7

1989506C1

HOSE

ASSEMBLY - steering return

1шт.

8

1347072C1

CLAMP

- tube retaining, 1 x 3/4 inch

2шт.

9

1989362C1

CLAMP

- tube

3шт.

10

1347127C1

PLATE

- hose clamp

4шт.

11

424-564

BOLT,Hex, 5/16" - 18 x 4", Gr 2

- hex, 5/16 x 4 inch

2шт.

12

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

3шт.

13

1994631C2

LIMITER, TRAVEL

ATTENUATOR - 0.7 liter

1шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

17

201-126

HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB

ADAPTER - straight, 13/16-16 face seal x 9/16-18 inch O-ring

1шт.

19

1989287C2

HYD TUBE

TUBE ASSEMBLY - steering pressure

1шт.

20

1989504C1

HOSE

ASSEMBLY - steering hand pump, supply

1шт.

22

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

24

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

5шт.

25

201-411

TEE,13/16"-16 ORFS x 13/16"-16 Sw Br

- 13/16-16 inch swivel face branch x face x face

1шт.

27

1989343C1

ANGLE BAR

ANGLE - tube support

1шт.

28

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

2шт.

29

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

30

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

1шт.

31

1541791C1

TEE

- steering diagnostic, Includes: Ref. 32

1шт.

34

1541849C1

COUPLING

COUPLER - diagnostic, Includes: Ref. 35, 36

1шт.

35

H434163

DUST CAP

CAP - coupler, dust

1шт.

37

1541627C1

ELBOW

- restrictor

1шт.

38

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

39

1989363C2

HOSE

ASSEMBLY - steering pressure

1шт.

40

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

41

201-126

HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB

ADAPTER - straight, 13/16-16 face seal x 9/16-18 inch O-ring

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

32

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

36

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

42

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
