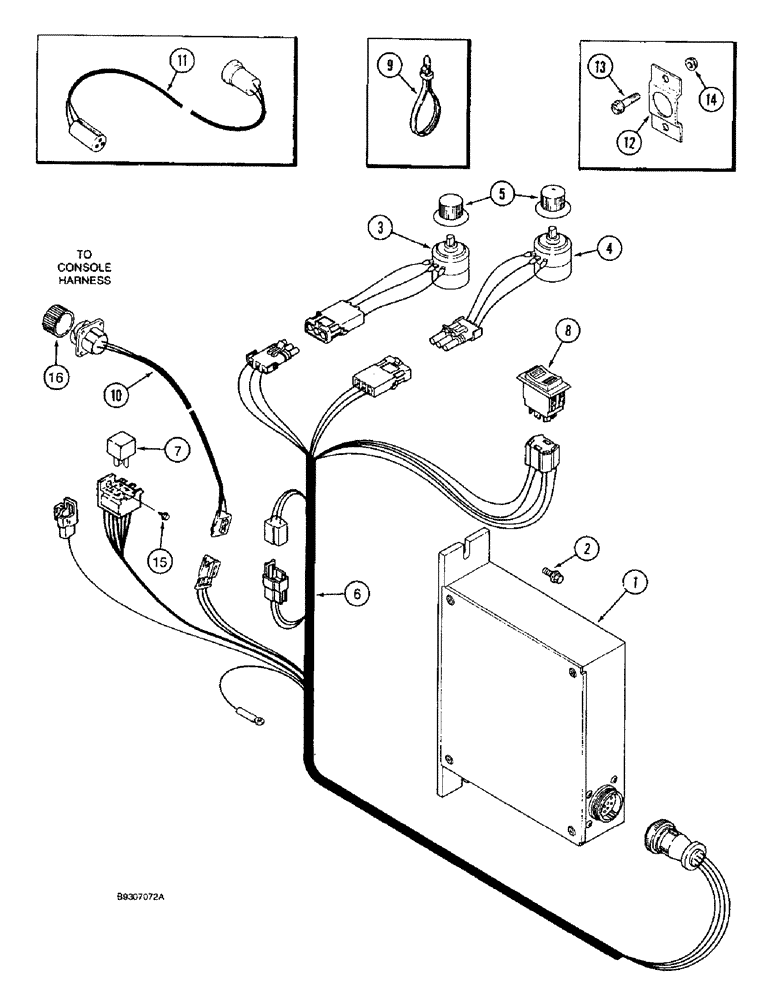

Запчасти Case IH 1644 (4-34) - AUTOMATIC HEADER HEIGHT CONTROL (06) - ELECTRICAL

1

91479C2

CASE

KIT module, automatic header height control

1шт.

2

281-1476

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

self-tapping, hex washer head 1/4 NC x 3/8 inch

2шт.

3

245385C1

POTENTIOMETER,1000 Ohm

Single, Header Height Control

1шт.

4

245925C1

POTENTIOMETER,1000 Ohm

Single, Sensitivity Control

1шт.

5

1301036C1

BUTTON

KNOB control without pointer

2шт.

5

1345235C1

BUTTON

KNOB control without pointer

2шт.

6

113513A1

HARNESS

automatic header height

1шт.

7

1983394C2

RELAY

electrical 12 volt

1шт.

8

245012C1

SWITCH

rocker automatic header control, on-off

1шт.

9

702093C1

CABLE TIE

CABLE STRAP

1шт.

10

1994842C1

HARNESS

automatic header height control hose

1шт.

11

1331312C1

WIRE HARNESS

extension automatic header height control, if equipped

1шт.

12

91795C1

SUPPORT

BRACKET connector mounting

1шт.

13

363-31016

SCREW,Hex Wash Hd, #10-24 x 1"

machine, hex washer head No. 10 NC x 1 inch

2шт.

14

231-51409

SERRATED NUT,Flg, USR, #10-24

(Replaces 174097C1)

2шт.

15

281-6456

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

self-tapping, hex washer head No. 10 NF x 3/4 inch

1шт.

16

225290C1

DUST CAP

COVER plug

1шт.
