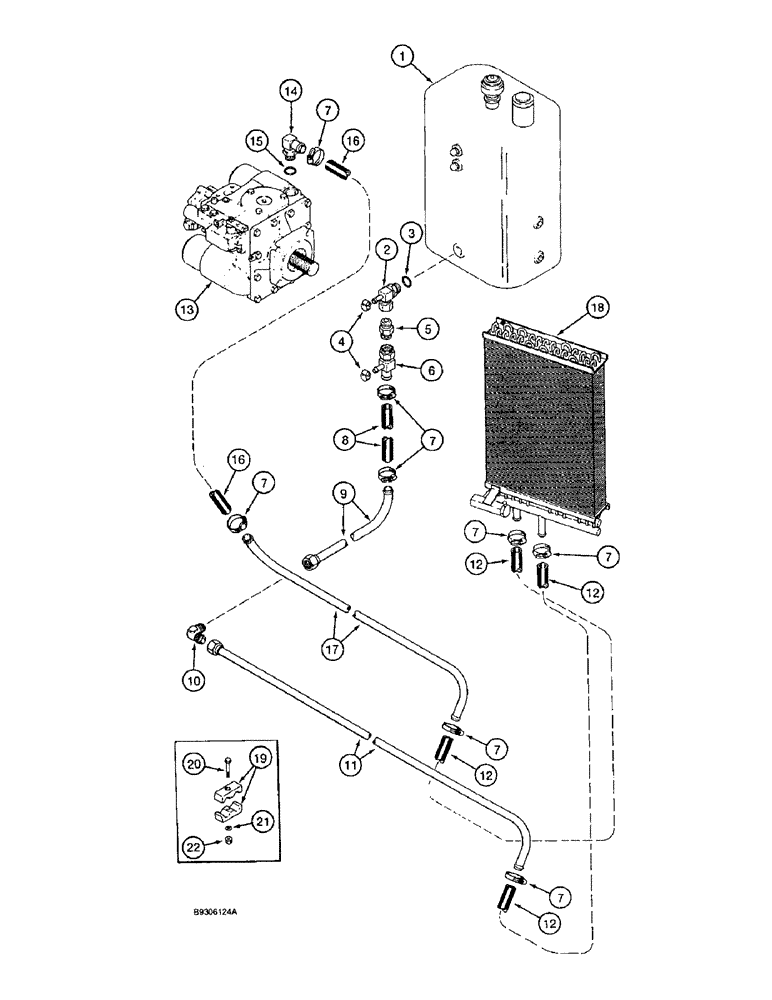

Запчасти Case IH 1644 (8-14) - OIL COOLER SYSTEM, CORN AND GRAIN COMBINE (07) - HYDRAULICS

1

1343660C1

RESERVOIR

ASSY., hydraulic oil, 10 gallon, see Figures 8-02 and 8-02(1)

1шт.

2

1979760C1

TEE

return, at reservoir

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

Adj

2шт.

5

1343558C1

VALVE

bypass, power guide axle

1шт.

6

1979655C1

TEE

return, hose to bypass valve

1шт.

7

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

Adjustable

8шт.

8

1979764C2

HOSE

cooler return, 10-1/2 in (267 mm) long, cut from 364361C1 bulk hose, see below

1шт.

9

1979731C1

TUBE

coler return

1шт.

10

218-478

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC

ELBOW, 90 deg., 1-5/16-12 in. flare x flare

1шт.

11

1324941C1

HYD TUBE,1" OD, 1790.5, 127 mm Length

TUBE, oil cooler return

1шт.

12

121298A1

HYDRAULIC HOSE,25.40 mm ID x 890.00 mm, SAE 16

Cooler, Cut from 364361C1 bulk hose, See below

2шт.

13

1330477C2

PUMP, HYDROSTATIC

HYDROSTATIC PUMP ASSY., see Figures 6-14 through 6-18

1шт.

14

178995C1

ELBOW

special, 90 deg., 1 in. barb end x 1-1/16 in. PT, Includes: Ref. 15

1шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

16

1979762C2

HOSE

cooler to pump, 24-1/4 in. (610 mm) long, cut from 364361C1 bulk hose, see below

1шт.

17

1979658C1

HYD TUBE,1" OD

oil cooler supply

1шт.

18

111078A1

COOLER

ASSY., hydraulic oil, see Figure 8-16

1шт.

19

1347071C1

CLAMP

CLAMP retaining, 1 in. OD tube

2шт.

20

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

If used

2шт.

21

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

2шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

364361C1

HOSE

bulk, 1 (25) ID x 600 (15240MM) long, used for Ref. 8, 12 and 16

1шт.
