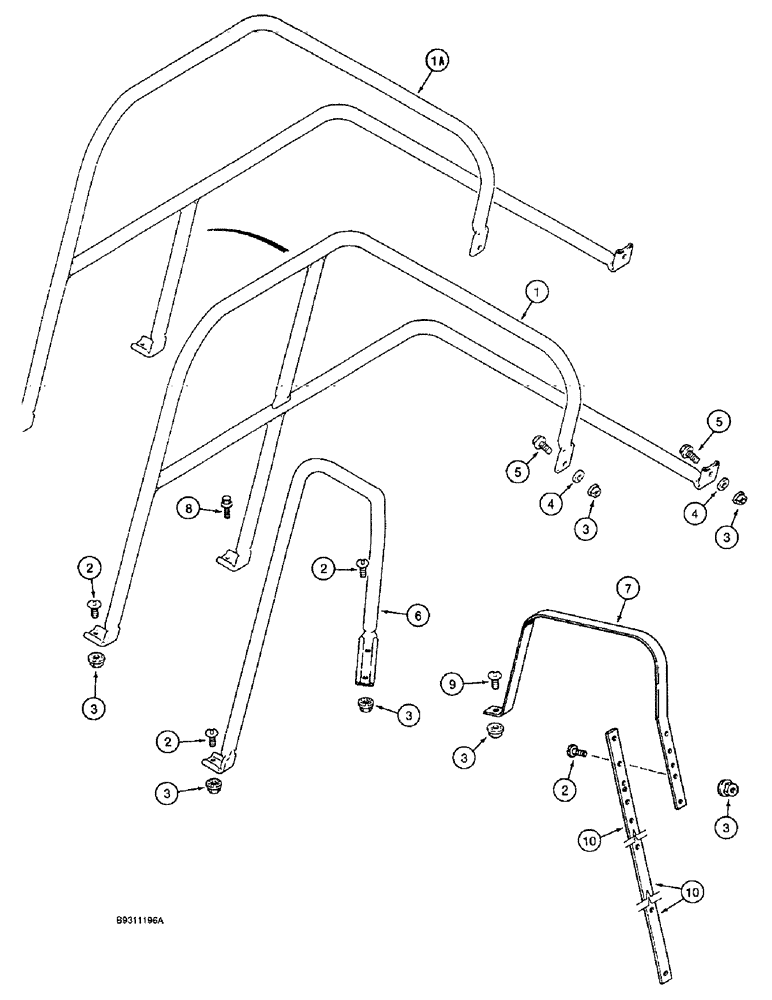

Запчасти Case IH 1644 (9H-12) - SERVICE DECK HAND RAILS (12) - CHASSIS

1

193089C1

RAIL ASSY.

hand, service deck, left hand if used

1шт.

1a

193089C2

GRAB RAIL

hand, service deck, left hand if used

1шт.

2

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head 5/16 NC x 3/4 inch

7шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

4

495-81121

WASHER,.344" x 1 1/2" x .060"

flat 11/32 x 1-1/2 x 1/16 inch

2шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

6

1541843C2

GRAB RAIL

hand service deck, right hand

1шт.

7

1338059C2

RAIL

hand, service deck

1шт.

8

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

9

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

slotted truss head 5/16 NC x 1 inch

1шт.

10

1338058C3

BAR

engine deck support

1шт.
