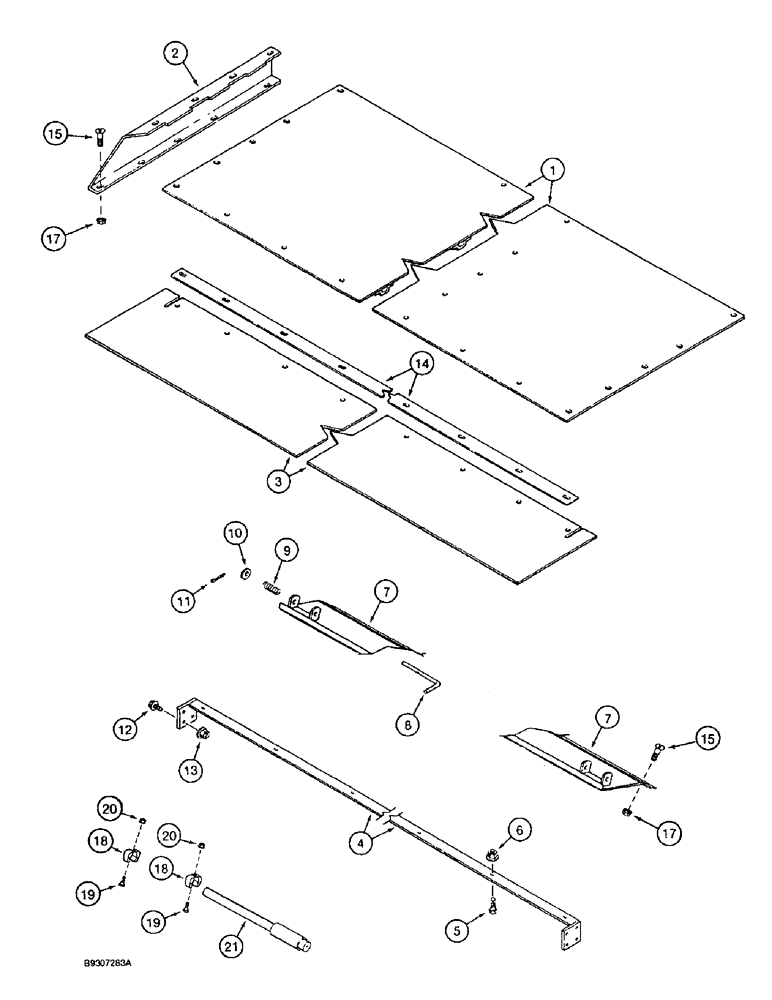

Запчасти Case IH 1644 (9D-20) - TAILINGS AUGER TROUGH PANEL (16) - GRAIN ELEVATORS & AUGERS

1

1970519C1

SHEET ASSY.

PANEL tailings return

1шт.

2

1346963C1

SUPPORT

tailings pan

1шт.

3

1347000C1

SEAL

tailings panel

1шт.

4

1970532C1

SUPPORT

tailings door

1шт.

5

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

7

186909C2

HOOD

GATE trough

1шт.

8

186736C3

ROD

PIN latch tailgate, replaces 186736C1

2шт.

9

540815R1

SPRING

lock pin

2шт.

10

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.

11

432-616

COTTER PIN,3/32" x 1"

2шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

14

122850A1

STRAP

retainer, panel seal

1шт.

15

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

14шт.

15

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

13шт.

16

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

Not shown

4шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

34шт.

18

106744A1

CLIP

retainer handle extension

2шт.

19

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

machine, pan Phillips No. 10 NC x 1/2 inch

2шт.

20

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

21

106743A1

HANDLE

extension

2шт.
