(9E-04) - GRAIN TANK EXTENSIONS

Запчасти Case IH 1644 (9E-04) - GRAIN TANK EXTENSIONS (17) - GRAIN TANK & UNLOADER

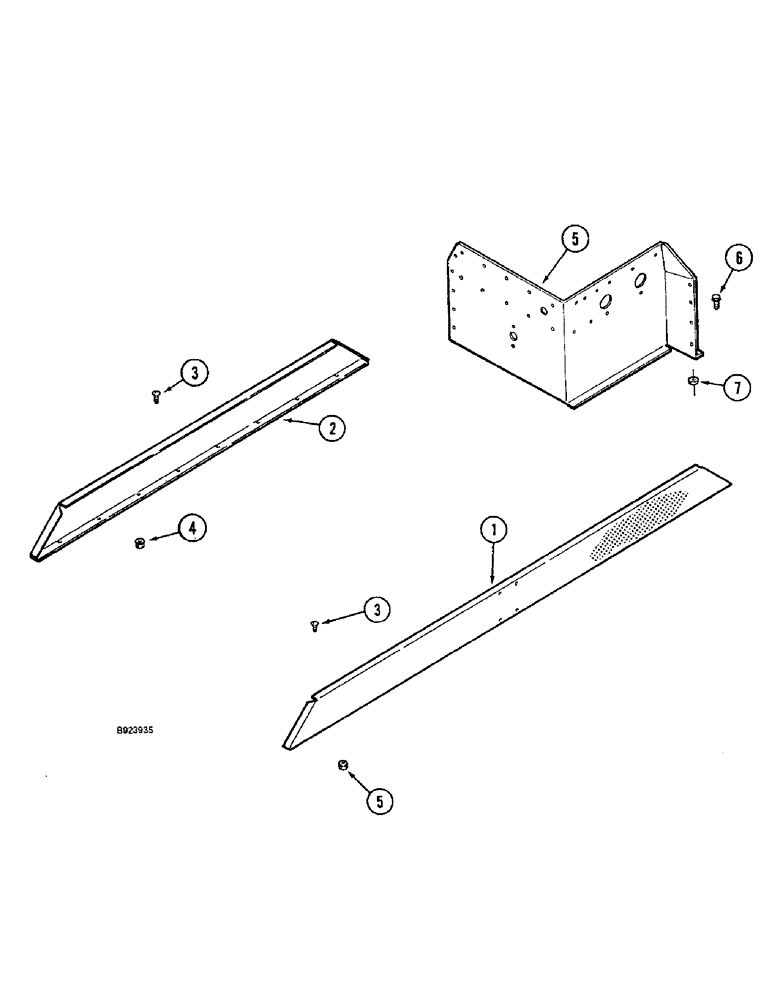

Схема запчастей Case IH 1644 - (9E-04) - GRAIN TANK EXTENSIONS (17) - GRAIN TANK & UNLOADER
1
4
5
5
2
3
7
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

183157C2

SUPPORT

front extension grain tank

1шт.

2

183276C2

SUPPORT

rear extension grain tank

1шт.

3

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

19шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

19шт.

5

1317644C2

SUPPORT

center extension, left

1шт.

6

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

6шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.
