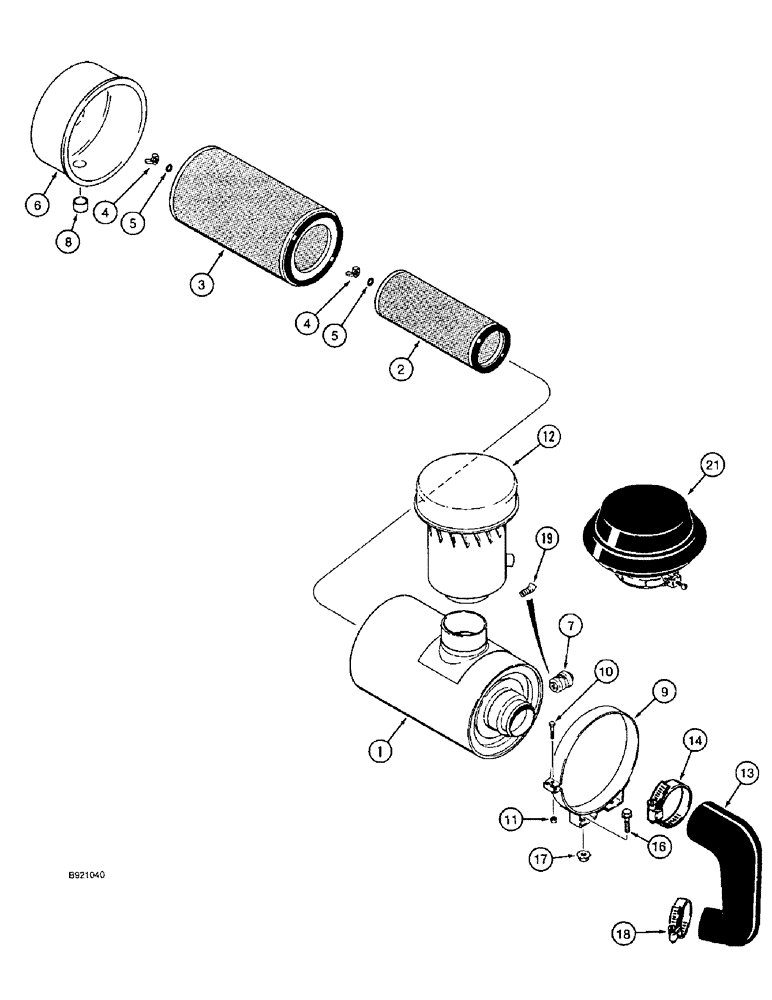

Запчасти Case IH 1644 (2-16) - AIR CLEANER, AIR INDUCTION SYSTEM (01) - ENGINE

1547900C2

AIR CLEANER

ASSEMBLY engine, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

BODY air cleaner

1шт.

2

A171256

AIR FILTER

secondary

1шт.

3

A171255

AIR FILTER

primary

1шт.

4

1547947C1

WING NUT

element retainer

2шт.

5

1547948C1

SEALING WASHER

WASHER sealing, retainer nut

2шт.

6

1547910C1

COVER

air cleaner, includes wing nut

1шт.

7

1541610C1

INDICATOR

air restriction

1шт.

8

353-174

PLUG

CAP end, 1-3/4 tube OD x 1 inch

1шт.

9

1998899C1

SUPPORT

BRACKET air cleaner mounting, includes hardware, induction system

2шт.

10

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Air induction system

2шт.

11

425-105

NUT,5/16"-18, G5

Air induction system

2шт.

12

117407A1

PRECLEANER

air induction, includes clamp and hardware, system

1шт.

During transport only, remove 117407A1 precleaner and replace with 9-128 cap to meet height regulations.

1шт.

13

1541864C2

LARGE HOSE

HOSE,LARGE turbo inlet, air induction system

1шт.

14

214-3296

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm, W/ Liner

Adjustable, Air cleaner outlet, Induction system

1шт.

16

409-7612

BOLT,3/8"-16 x 1.09" OAL

Air induction system

4шт.

17

231-5146

FLANGE NUT,3/8"-16

Air induction system

4шт.

18

214-3264

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm, W/ Liner

Turbocharger Inlet, Air Induction System

1шт.

19

217-15

ELBOW,45 Degree, 1/8"-27 NPTF, Fem x 1/8"-27 NPTF Male

ELBOW street, 45 degree, 1/8 inch PT x female PT, air induction system

1шт.

21

9-128

CAP

air cleaner for transport only, induction system

1шт.

During transport only, remove 117407A1 precleaner and replace with 9-128 cap to meet height regulations.

1шт.
