(2-30) - CYLINDER HEAD AND VALVE MECHANISM, 6TA-590 ENGINE

Запчасти Case IH 1644 (2-30) - CYLINDER HEAD AND VALVE MECHANISM, 6TA-590 ENGINE (01) - ENGINE

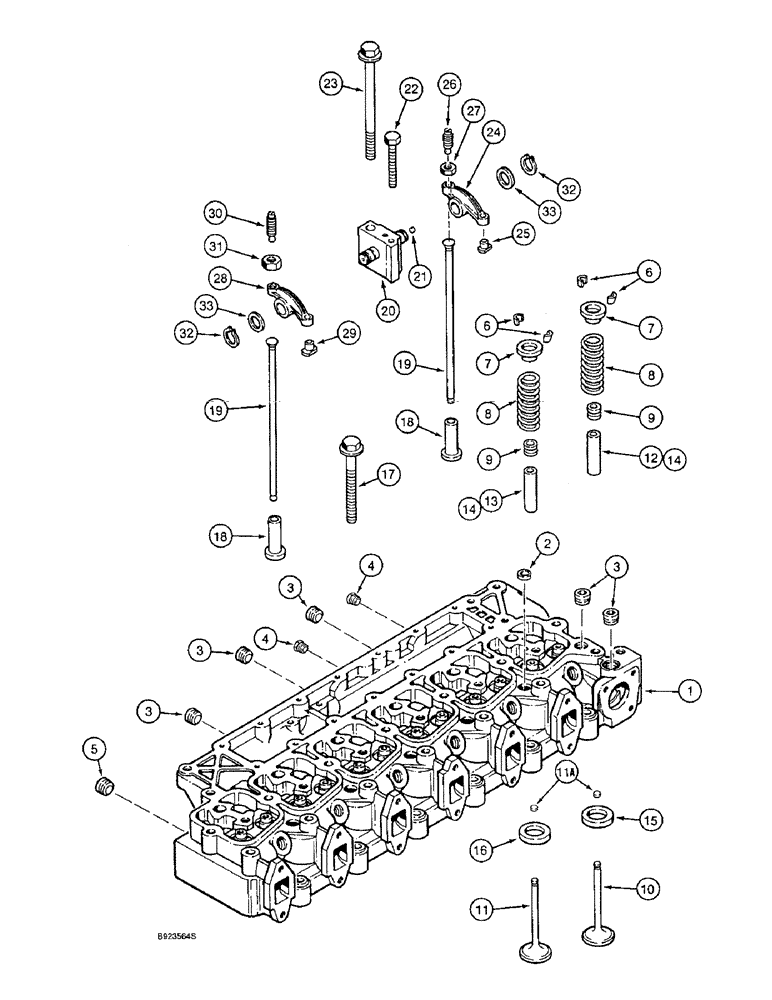

Схема запчастей Case IH 1644 - (2-30) - CYLINDER HEAD AND VALVE MECHANISM, 6TA-590 ENGINE (01) - ENGINE
6
3
3
14
9
7
16
3
25
10
29
6
14
4
21
11a
7
18
13
1
31
8
3
27
2
17
24
22
19
15
4
8
19
33
11
32
28
5
12
9
18
33
26
32
23
20
30
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

JR929735

HEAD (CYLINDER)

ASSEMBLY remanufactured, North America only, component parts shown in this Figure do not apply to the remanufactured assembly, Replaces JR920612 head assembly, Includes: Ref. 1 - 11

1шт.

JC929735

CORE-CYLINDER HEAD

RETURN NUMBER use this part number to return cylilnder head core for credit when using a remanufactured assembly, Replaces JC920612, Includes: Ref. 1 - 11

1шт.

J929735

HEAD (CYLINDER)

ASSEMBLY new, with valves, Replaces J920612, Includes: Ref. 1 - 11

1шт.

1

J917287

HEAD (CYLINDER)

ASSEMBLY 7 mm, injector, without valves, Includes: Ref. 2

1шт.

2

A77783

PLUG

expansion, 21 mm OD

5шт.

3

A77429

PLUG

hex socket, 1/2 inch PT

5шт.

4

J906619

PLUG,1/8" - 27

hex, 1/8 inch PT

2шт.

5

A77505

PLUG

hex socket, 3/4 inch PT

1шт.

6

CASJ900250

RETAINER

KEEPER valve

24шт.

7

J900299

RETAINER

valve spring

12шт.

8

J900276

VALVE SPRING

12шт.

9

J901097

SEAL

valve

12шт.

10

J920867

VALVE

intake

6шт.

11

J920868

VALVE

exhaust

6шт.

11a

J280911

WEAR PAD

service repair only for valve stem tip

12шт.

12

J904408

GUIDE

valve, intake, service repair only, 14 mm OD

6шт.

These parts are semi-finished valve guides.

1шт.

13

J904409

GUIDE

valve, exhaust, service repair only, 14 mm OD

6шт.

These parts are semi-finished valve guides.

1шт.

14

J906206

GUIDE

valve, intake and exhaust, service repair only, 11 mm OD

6шт.

These parts are semi-finished valve guides.

1шт.

15

J906854

SEAT, VALVE

insert, intake valve, service repair only

6шт.

16

J904105

SEAT, VALVE

insert, exhaust valve, service repair only

6шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

Cylinder head, 70 mm long

6шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

Cylinder head, 120 mm long

14шт.

18

J925031

TAPPET

valve, push rod, Replaces J907240

12шт.

19

J923262

PUSH ROD

rocker arm

12шт.

20

J910814

SUPPORT

SHAFT ASSEMBLY rocker arm, Includes: Ref. 21

6шт.

21

J907555

PLUG

rocker arm shaft

1шт.

22

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

6шт.

23

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

Rocker arm and cylinder head, 180 mm long

6шт.

24

J910811

ROCKER

ARM ASSEMBLY intake, Includes: Ref. 25 - 27

6шт.

25

NSS

NOT SOLD SEPARAT

INSERT rocker arm

1шт.

26

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

slotted set, adjusting, special

1шт.

27

425-116

NUT,3/8" - 24, Gr 5

Hex

1шт.

28

J910810

ROCKER

ARM ASSEMBLY exhaust, Includes: Ref. 29 - 31

6шт.

29

NSS

NOT SOLD SEPARAT

INSERT rocker arm

1шт.

30

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

slotted set, adjusting, special

1шт.

31

425-116

NUT,3/8" - 24, Gr 5

Hex

1шт.

32

J900242

SNAP RING

retaining, rocker arm

12шт.

33

J900245

WASHER

thrust, rocker arm

12шт.
