(2-34) - CYLINDER BLOCK, 6TA-590 ENGINE

Запчасти Case IH 1644 (2-34) - CYLINDER BLOCK, 6TA-590 ENGINE (01) - ENGINE

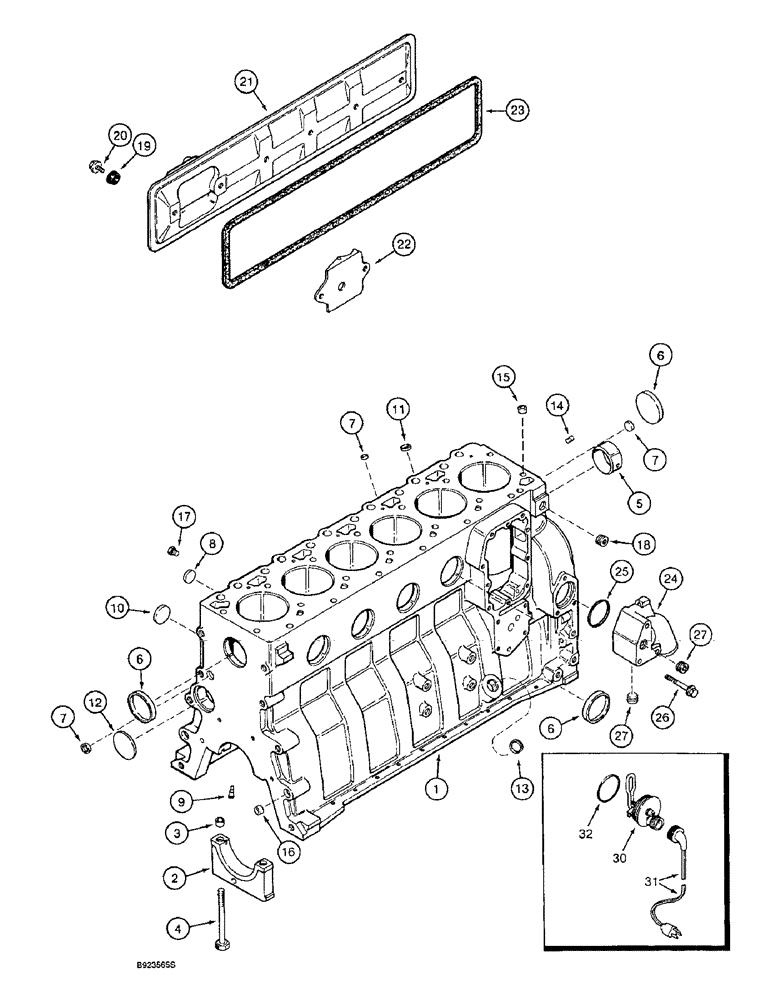

Схема запчастей Case IH 1644 - (2-34) - CYLINDER BLOCK, 6TA-590 ENGINE (01) - ENGINE
4
14
6
32
20
22
17
19
24
15
18
26
6
10
7
2
1
27
31
7
6
12
23
5
11
13
3
8
25
9
27
7
21
30
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1989148C2

ENGINE ASSEMBLY

ENGINE ASSY complete, 6TA-590, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, for service order basic engine below, Replaces 1989141C1

1шт.

196099A1R

REMAN-REPLACEMENT EN

Reman complete, 6TA-590, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe.

1шт.

6TA-590C

CORE-REPLACEMENT ENG

Return Part Number

1шт.

1989097C3

BASIC ENGINE

ASSEMBLY includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel & housing, oil fill & dipstick, fuel injection pump, injectors & lines, front pulley, belt tensioner, turbocharger & aftercooler

1шт.

1989097C4R

REMAN-BASIC ENGINE

Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

1989097C4C

CORE-BASIC ENGINE

Return Part Number

1шт.

Order J920399 hardware kit when ordering J927311 block assembly or J916255 stripped block.

1шт.

J927311

SKELETON ENGINE

BLOCK ASSEMBLY short, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, Replaces J920388, Includes: Ref. 1 - 8

1шт.

JR933184

REMAN-SHORT ENGINE

Remanufactured

1шт.

JC933184

CORE-SHORT ENGINE

Return Part Number

1шт.

1

J916255

CYLINDER BLOCK

ASSEMBLY stripped, engine, Includes: Ref. 2 - 8

1шт.

Order J920399 hardware kit when ordering J927311 block assembly or J916255 stripped block.

1шт.

2

J900967

BEARING CAP

CAP main

7шт.

3

J900068

BEARING WASHER

RING dowel, 18 mm OD

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

main bearing cap, special

14шт.

5

REF

INSTRUCTION

BUSHING camshaft, front, see Figure 2-32, Ref. 2

1шт.

6

A77782

PLUG

expansion, 58 mm OD

6шт.

7

J900956

PLUG

expansion, 18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

Replaces 23624R1

4шт.

PJ920399

SHIN

KIT block hardware, Includes: Ref. 9 - 18

1шт.

Order J920399 hardware kit when ordering J927311 block assembly or J916255 stripped block.

1шт.

9

J919002

NOZZLE CAP

piston cooling

6шт.

10

J900958

PLUG

expansion 32 mm OD

1шт.

11

J900955

PLUG

expansion 10 mm OD

2шт.

12

172599

PLUG,Exp, 2 3/8"

expansion, Welch 60 mm OD

1шт.

13

J920706

PLUG

expansion, 22 mm OD, Replaces A77439

1шт.

14

J900257

PIN,10.01mm OD x 16mm L

dowel, 16 mm long

2шт.

15

J902343

DOWEL

RING 16 mm OD

2шт.

16

J900068

BEARING WASHER

RING dowel, 18 mm OD

2шт.

17

J906619

PLUG,1/8" - 27

hex, 1/8 inch PT

2шт.

18

A77429

PLUG

hex socket, 1/2 inch PT

1шт.

19

J900267

SEAL

cover bolt

4шт.

20

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

4шт.

21

J911822

COVER

tappet

1шт.

22

J907586

BAFFLE

tappet cover

1шт.

23

J907617

GASKET

tappet cover

1шт.

24

J903103

MANIFOLD

water inlet

1шт.

25

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING sealing 50 mm ID

1шт.

26

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

Heavy

3шт.

27

A77429

PLUG

hex socket, 1/2 inch PT

2шт.

A77634

KIT

engine block heater

1шт.

30

NSS

NOT SOLD SEPARAT

ELEMENT engine heater, 12 volt, block

1шт.

31

J905113

CABLE

engine block heater, 6 feet long

1шт.

32

J910517

O-RING

heater sealing, engine block

1шт.
