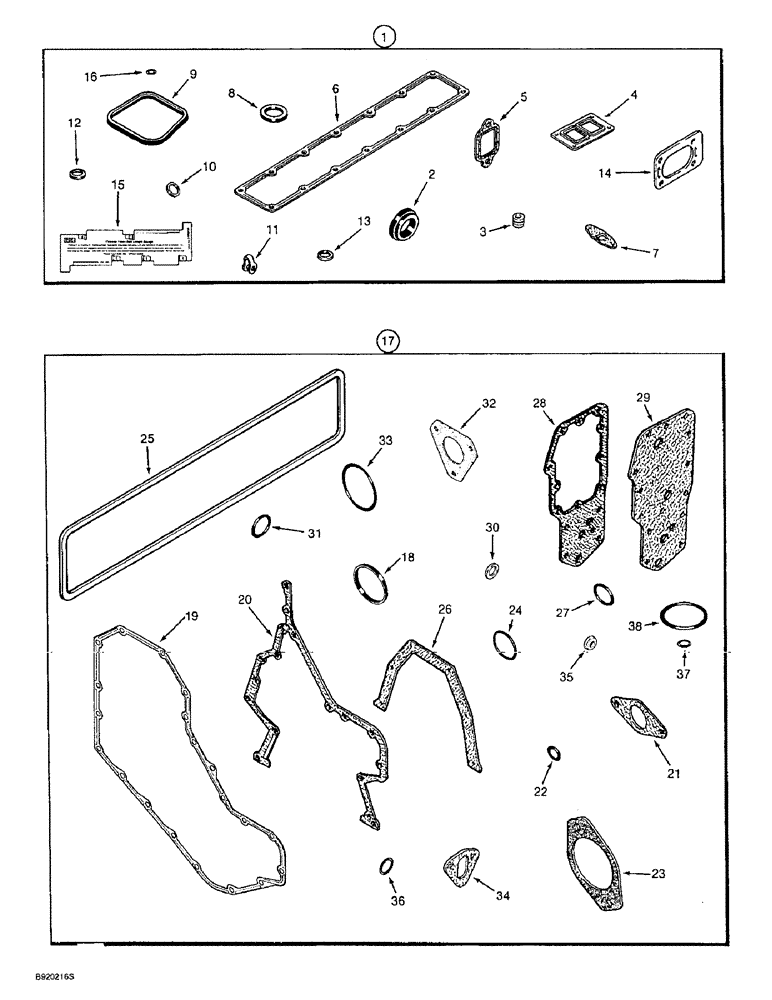

Запчасти Case IH 1644 (2-50) - GASKET KITS, 6TA-590 ENGINE, VALVE GRIND, CYLINDER BLOCK (01) - ENGINE

1

A77793

GASKET KIT

valve grind, Includes: Ref. 2 - 16

1шт.

When the valve grind gasket kit is used, also order the required cylinder head gasket, Ref. 6, Figure 2-28.

1шт.

2

J923331

GASKET

thermostat housing

1шт.

3

J901097

SEAL

valve

12шт.

4

J901356

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

5

J905443

MANIFOLD GASKET

exhaust manifold

6шт.

6

J914029

GASKET

mounting

1шт.

7

J914388

GASKET

turbo oil drain tube

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

oil fill cap not used in this application

1шт.

9

J902666

GASKET

SEAL rocker arm cover

6шт.

10

J900808

SEAL

injector nozzle, 9 mm injector tip not used in this application

6шт.

11

J903380

SEAL

connector

6шт.

12

J906659

SEAL

injector nozzle, 7 mm injector tip

6шт.

13

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING, Serial Range: body-nut

6шт.

14

J914856

GASKET,1.02mm Thk

air crossover connection not used in this application

1шт.

15

J823921

GAUGE

cylinder head, bolt length

1шт.

16

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt

6шт.

17

A77674

GASKET KIT

cylinder block, Includes: Ref. 18 - 38

1шт.

For complete engine overhaul, order (1) valve grind kit, (1) cylinder block kit, (1) oil pan kit, Figure 2-48, and the required cylinder head gasket, Ref. 6, Figure 2-28.

1шт.

18

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

front access cover, cylinder block

1шт.

19

J914385

GASKET,1.02mm Thk

front cover, cylinder block

1шт.

20

J916131

GASKET

gear housing, cylinder block

1шт.

21

J905595

GASKET

timing pin housing not used in this application, cylinder block

1шт.

22

J913994

O-RING

sealing, cylinder block

1шт.

23

J919601

GASKET

access cover plate, cylinder block

1шт.

24

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Water pump to block, cylinder

1шт.

25

J928832

GASKET

tappet cover, Replaces J907617, cylinder block

1шт.

26

J928493

GASKET

rear cover retainer, Replaces J914386, cylinder block

1шт.

27

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING 50 mm ID, water inlet connection, cylinder block

1шт.

28

J926760

GASKET

oil cooler core, Replaces J918256, cylinder block

1шт.

29

J918257

GASKET

filter head oil, cylinder block

1шт.

30

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug oil pan, cylinder block

1шт.

31

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING 38 mm ID, not used in this application, cylinder block

1шт.

32

J914389

GASKET

pump mounting fuel, cylinder block

1шт.

33

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING flywheel housing to block not used in this application, cylinder block

1шт.

34

J923054

GASKET

mounting, fuel transfer pump, Replaces J914304, cylinder block

1шт.

35

J900267

SEAL

cover bolt tappet, cylinder block

6шт.

36

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Flywheel backing plate plug, cylinder block

1шт.

37

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING sealing, 14 mm ID, fuel filter adapter, not used in this application, cylinder block

1шт.

38

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

SEALRING sealing, 70 mm ID, not used in this application, cylinder block

1шт.
