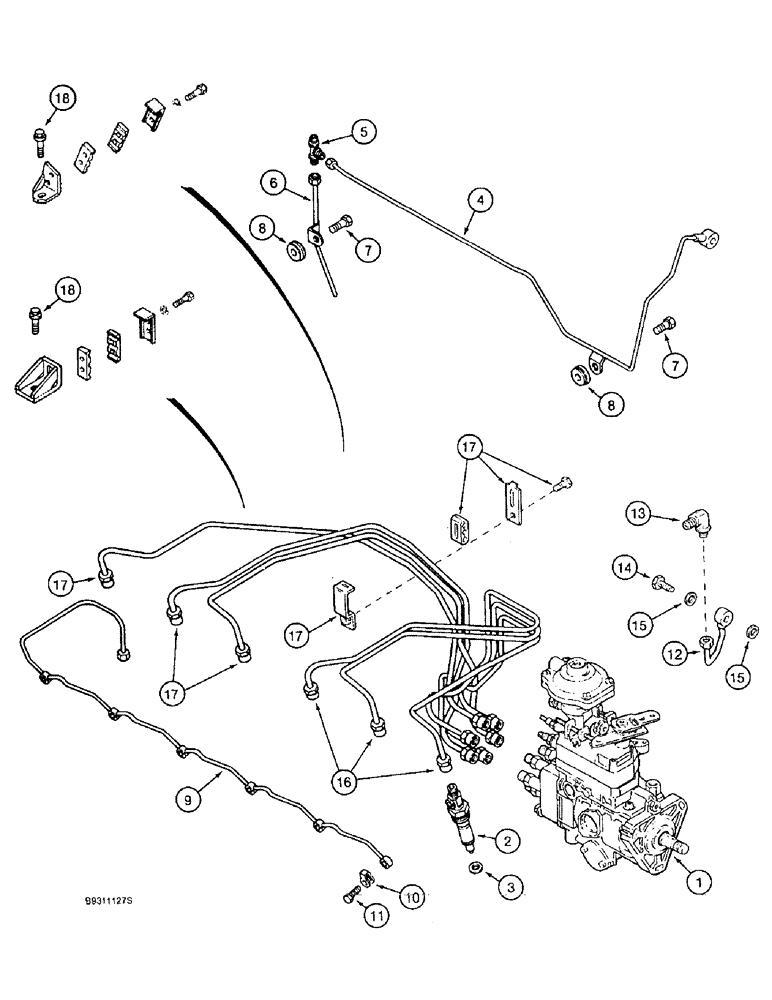

Запчасти Case IH 1644 (3-02) - FUEL INJECTION SYSTEM, 6TA-590 ENGINE, PRIOR TO ENGINE SERIAL NUMBER 44896558 (02) - FUEL SYSTEM

1

J924062

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY fuel, new, parts list Figure 3-6

1шт.

2

J919339

NOZZLE INJECTION

ASSEMBLY fuel, new, 7 mm tip, see Figure 3-8, Includes: Ref. 3

6шт.

2

JR919339

REMAN-FUEL INJECTOR

Remanufactured INJECTION NOZZLE

6шт.

2

JC919339

CORE-FUEL INJECTOR

Return Number, INJECTION NOZZLE

6шт.

3

J906659

SEAL

injector nozzle, 7 mm tip

1шт.

4

J905707

FUEL TUBE,4.76 mm OD

fuel drain, pump to tee

1шт.

5

222-121

TEE,3/16", Flex Tubing

1шт.

6

J905692

FUEL TUBE

fuel return

1шт.

7

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

8

J900267

SEAL

cover belt

2шт.

9

J909696

TUBE

TUBE manifold, fuel drain

1шт.

10

J903380

SEAL

connector

6шт.

11

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Drain, Special

6шт.

12

J910004

FUEL TUBE,4.76 mm OD x 101.9 mm L

TUBE injection pump aneroid

1шт.

13

J910265

ELBOW

male adapter

1шт.

14

J903729

BANJO BOLT,M8 x 1 x 17mm

BOLT banjo

1шт.

15

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

sealing

2шт.

16

J925505

FUEL TUBE

TUBE ASSEMBLY fuel injector, includes clamps and hardware Refs., components not serviced separately, No. 1, 2 , and 3 cylinder

1шт.

17

J925506

FUEL TUBE

TUBE ASSEMBLY fuel injector, includes clamps and hardware Refs., components not serviced separately, No. 4, 5, and 6 cylinder

1шт.

18

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

Special

2шт.
