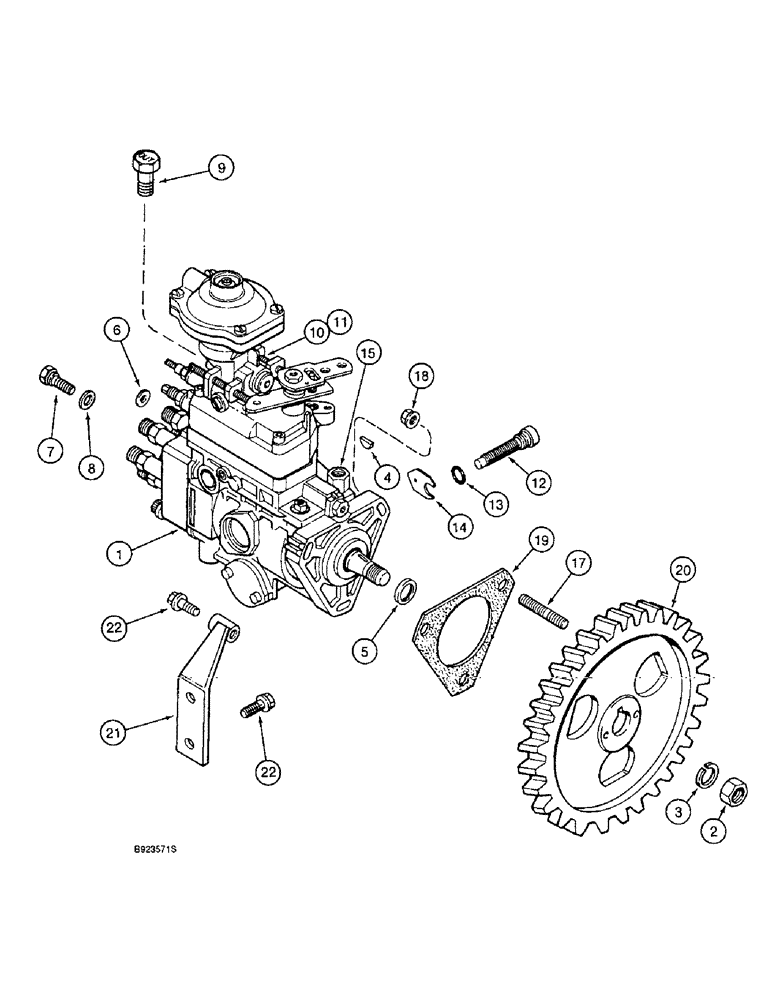

Запчасти Case IH 1644 (3-06) - FUEL INJECTION PUMP AND DRIVE, 6TA-590 ENGINE (02) - FUEL SYSTEM

JR924062

REMAN-INJECTION PUMP

ASSEMBLY fuel, remanufactured, North America only, compomemt parts shown in this Figure do not apply to the remanufactured assembly, Includes: Ref. 2 - 16

1шт.

JC917502

PUMP

RETURN NUMBER use this part number to return pump core for credit when using a remanufactured assembly, Includes: Ref. 2 - 16

1шт.

1

J924062

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY fuel, new, Includes: Ref. 2 - 16

1шт.

2

J903738

NUT

hex, special, 14 mm - 2.0

1шт.

3

92-11056

LOCK WASHER,9/16"

1шт.

4

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Replaces J902332

1шт.

5

J920393

SEAL

shaft

1шт.

6

J903570

GASKET,5.4mm ID x 12mm OD x 1mm Thk

delivery valve

6шт.

7

J903572

BLEED SCREW,M8 x 1 x 23.10mm

vent

1шт.

8

3053133R1

SEALING RING,M8 x 11.5 x 1

gasket, vent screw

1шт.

9

J905465

BANJO BOLT

BOLT banjo, overflow

1шт.

10

J904782

SET SCREW,Sl, M6 x 40mm, Half Dog Pt

low idle stop

1шт.

11

J904783

NUT

low idle screw

1шт.

12

J904784

SCREW,Hex Skt, M10 x 1 x 35mm

timing lock

1шт.

13

J904785

O-RING,8 mm ID x 2.5 mm

timing lock screw

1шт.

14

J904786

PLATE

timing lock

1шт.

15

J903382

ADAPTER,M12 x 1.5 x M14 x 1.5

tube

1шт.

16

J905697

SUPPORT

BRACKET pump

1шт.

17

J902501

STUD

STUD pump mounting, 8 - 1.25 x 48 mm, fuel pump to timing gear housing

3шт.

18

J900589

NUT

hex flange, special 8 mm, fuel pump to timing gear housing

3шт.

19

J914389

GASKET

pump mounting

1шт.

20

J920594

PINION

GEAR pump drive

1шт.

21

J905313

LEVER

BRACE fuel pump

1шт.

22

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.
