(3-14) - FUEL TANK AND SUPPORTS

Запчасти Case IH 1644 (3-14) - FUEL TANK AND SUPPORTS (02) - FUEL SYSTEM

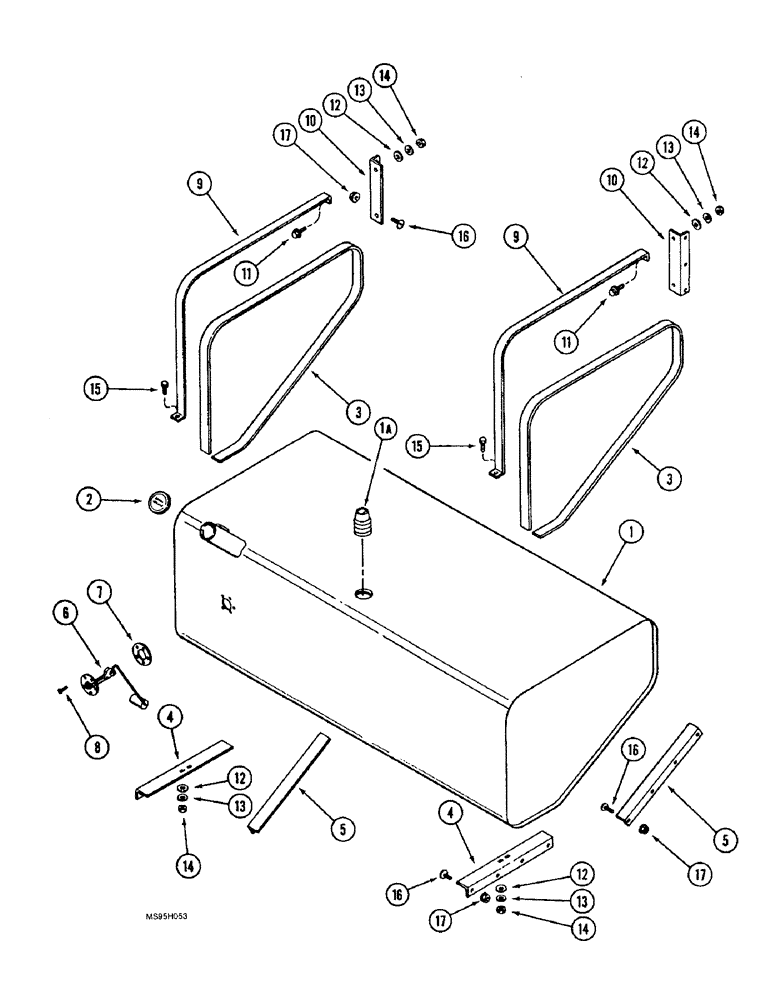

Схема запчастей Case IH 1644 - (3-14) - FUEL TANK AND SUPPORTS (02) - FUEL SYSTEM
4
11
16
10
10
9
17
14
14
15
14
1a
13
2
4
14
3
13
12
15
16
6
17
17
12
16
13
16
12
1
9
5
12
11
8
7
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

193550C95

FUEL TANK

ASSEMBLY 92-1/2 gallons without plug, Replaced by 197681A2, Includes: Ref. 1A and 2

1шт.

1

197681A2

FUEL TANK

ASSEMBLY with 217-87 plug, Replaces 193550C95, Includes: Ref. 1A and 2

1шт.

1a

217-87

PLUG,Hex Hd, 3/8"-18 NPTF, Brass

1шт.

2

104781C1

CAP

fuel tank, non vented

1шт.

3

1308798C1

STRIP

lining, 72 inch (1829 mm) long, cut for 990541R1 bulk, see this Figure, fuel tank support

2шт.

4

192381C3

SUPPORT

lower support

2шт.

5

1302029C1

SUPPORT

front support

2шт.

6

198024C1

FUEL GAUGE

SENSOR fuel level

1шт.

7

168515C1

GASKET,3.05mm Thk

fuel tank sending unit

1шт.

8

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

5шт.

9

1302031C1

STRAP

SUPPORT fuel tank retainer

2шт.

10

1302030C1

ANGLE

front

2шт.

11

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

BOLT hex flange, 5/16 NC x 1-1/4 inch

2шт.

12

495-81112

WASHER,.344" x 3/4" x .120"

flat, 11/32 x 3/4 x 7/64 inch

4шт.

13

492-11031

LOCK WASHER,5/16"

4шт.

14

425-105

NUT,5/16"-18, G5

4шт.

15

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

16

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

23шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

23шт.

990541R1

FIXING STRIP

bulk, lining, 1-1/4 (32) wide x 600 inch (15240 mm) long, see Ref. 3

1шт.
