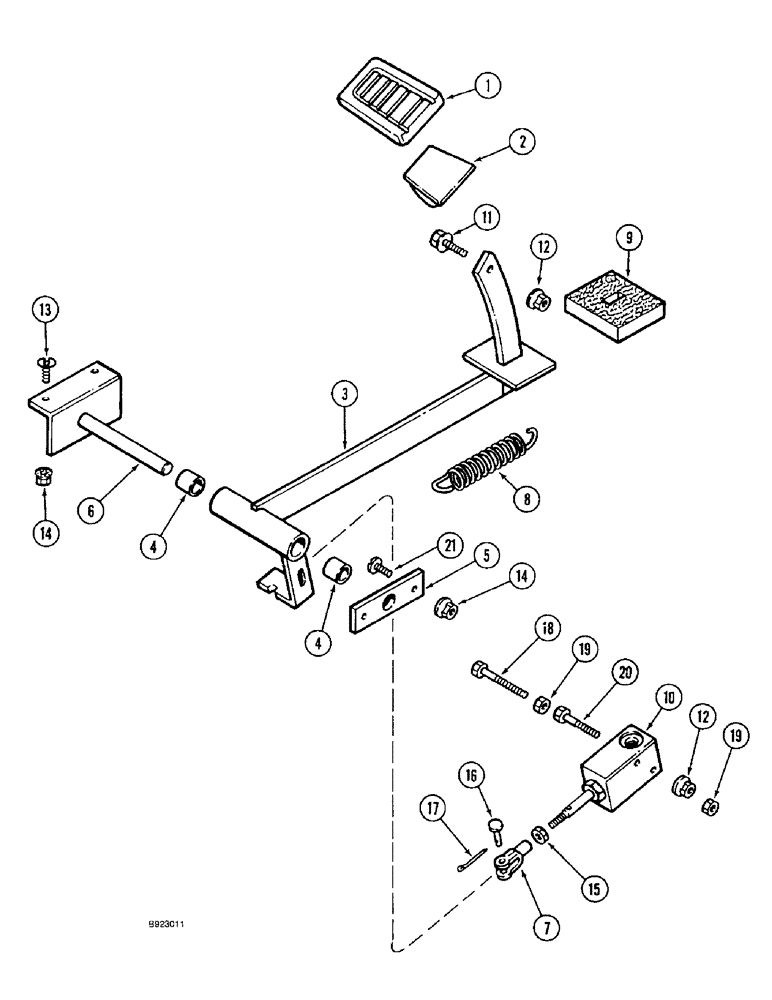

Запчасти Case IH 1644 (6-08) - FOOT-N-INCH PEDAL (03) - POWER TRAIN

1

863426R1

PAD

pedal

1шт.

2

163425C1

PEDAL

Foot-N-Inch

1шт.

3

1321960C92

SUPPORT

ASSY. pedal

1шт.

4

1280291C1

BUSHING,19.13mm ID x 22.3mm OD x 19.05mm L

support assy., 3/4 in., 19 mm, dia., Includes: Ref. 4

2шт.

5

1281794C1

PLATE

pivot shaft support

1шт.

6

1281816C3

SUPPORT

pivot shaft

1шт.

7

213-125

ADJUSTABLE CLEVIS,5/16" - 32

1шт.

8

398763R2

SPRING

pedal return

1шт.

9

1321935C1

SEAL

pedal

1шт.

10

REF

INSTRUCTION

VALVE ASSY., Foot-N-Inch, see Figure 6-10

1шт.

11

1327764C1

BOLT,Hex Wshr Hd, 3/8" - 16 x 1 1/4"

BOLT hex flange, polyseal, 3/8 NC x 1-1/4 in.

1шт.

12

1327765C1

LOCK NUT

hex flange, self locking, 3/8 in. NC

2шт.

13

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 in.

2шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

15

425-155

JAM NUT,Jam, 5/16"-24, G5

Hex

1шт.

16

327-5094

CLEVIS PIN,5/16" x .940"

clevis, 5/16 x 15/16 in.

1шт.

17

432-612

COTTER PIN,3/32" x 3/4"

1шт.

18

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

19

232-4136

LOCK NUT,3/8"-16, GC

2шт.

20

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

21

1330152C1

SCREW,Sl Serr Truss Hd, 5/16" - 18 x 3/4"

2шт.
