(6-28) - TRANSMISSION INPUT DRIVE SHAFT, PRIOR TO P.I.N. JJC0098060

Запчасти Case IH 1644 (6-28) - TRANSMISSION INPUT DRIVE SHAFT, PRIOR TO P.I.N. JJC0098060 (03) - POWER TRAIN

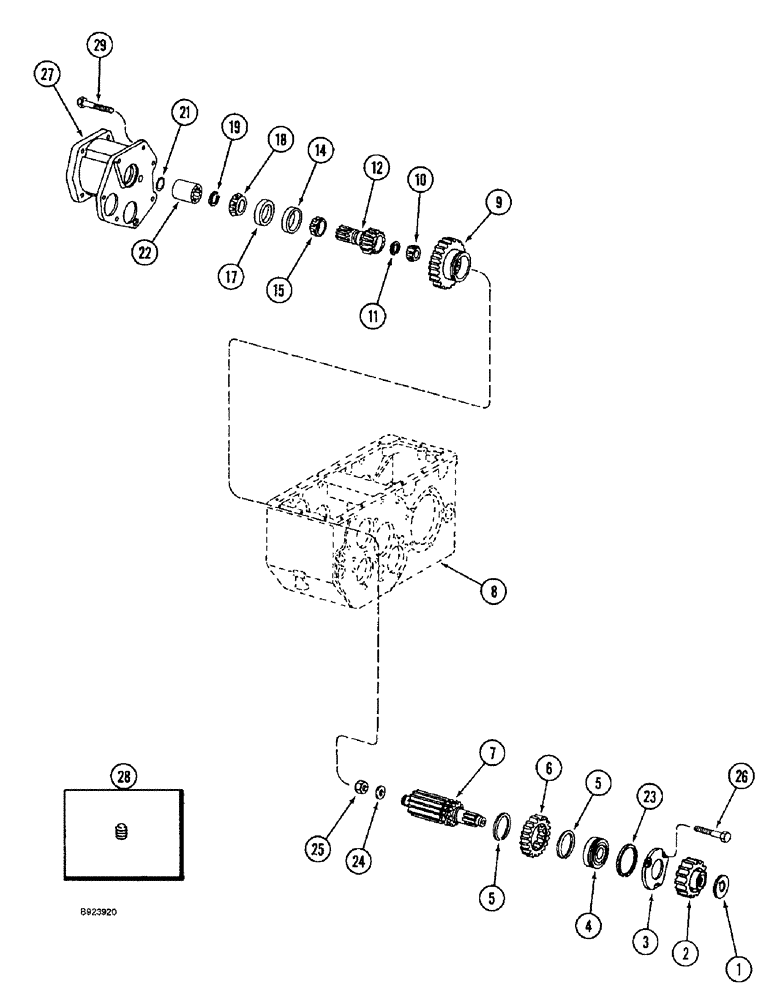

Схема запчастей Case IH 1644 - (6-28) - TRANSMISSION INPUT DRIVE SHAFT, PRIOR TO P.I.N. JJC0098060 (03) - POWER TRAIN
5
9
3
6
4
23
19
14
5
18
29
22
12
27
24
8
28
10
15
21
25
2
7
1
17
26
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

382900R1

LOCK WASHER

lock, input drive shaft

1шт.

2

402845R1

GEAR

change drive, 27 teeth

1шт.

3

379481R1

RETAINER

shaft bearing

1шт.

4

379438R91

ROLLER BEARING,34.99mm ID x 80mm OD x 21mm W

straight, roller, 3-5/32 in. OD, input shaft

1шт.

5

100070R1

RING

snap, input shaft, drive shaft

2шт.

6

402844R1

GEAR

driven, 30 teeth, second speed

1шт.

7

402842R3

SHAFT

input drive

1шт.

8

184079C1

CASE

HOUSING transmission, See Figure 6-36

1шт.

9

395652R1

GEAR

first and third sliding, 20 and 38 teeth

1шт.

10

358035R91

BEARING, ROLLER, CYL,25mm ID x 44.82mm OD x 20.64mm W

straight roller, 1-49/64 in. OD, input pinion shaft

1шт.

11

A32438

SNAP RING

RING snap, 57/64 in. ID, input pinion shaft

1шт.

12

402846R2

SHAFT

input pinion, snap

1шт.

671028R91

BEARING ASSY,38.1mm ID x 72.02mm OD x 20.64mm W

ASSY., tapered roller, inner pinion shaft, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

CUP bearing, inner pinion shaft, 2-27/32 in. OD

1шт.

15

NSS

NOT SOLD SEPARAT

CONE bearing, inner pinion shaft, 1-1/2 in. ID

1шт.

184076C91

BEARING ASSY,33.45mm ID x 69.04mm OD x 19.9mm W

ASSY., tapered roller, outer pinion shaft, Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

CUP bearing, outer pinion shaft, 2-23/32 in. OD

1шт.

18

NSS

NOT SOLD SEPARAT

CONE bearing, outer pinion shaft, 1-3/8 in. ID

1шт.

19

A21619

CIRCLIP

RING snap, pinion shaft bearing, 1-17/64 in. ID

1шт.

80644C91

SPLINED COUPLING

ASSY., input pinion shaft, Includes: Ref. 21 and 22

1шт.

21

402848R1

RING

retaining

1шт.

22

NSS

NOT SOLD SEPARAT

COUPLING, order 80644C91 coupling assy.

1шт.

23

934593R1

CIRCLIP,#80, 75.4 x 4.85 x 1.7

input drive shaft, bearing, treplaces ST419 ring

1шт.

24

382901R1

LOCK WASHER,26.16mm ID x 47.8mm OD x 3.18mm Thk

flat, input drive shaft

1шт.

25

382879R1

NUT

hex, input drive shaft

1шт.

26

310-1514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 8

BOLT hex, self locking, 5/16 NC x 7/8 in., grade 8

3шт.

27

402849R1

HOUSING

hydrostatic motor adapter

1шт.

28

700518C1

PLUG

magnetic, 1/4 in. PT

1шт.

29

326-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 8

7шт.
