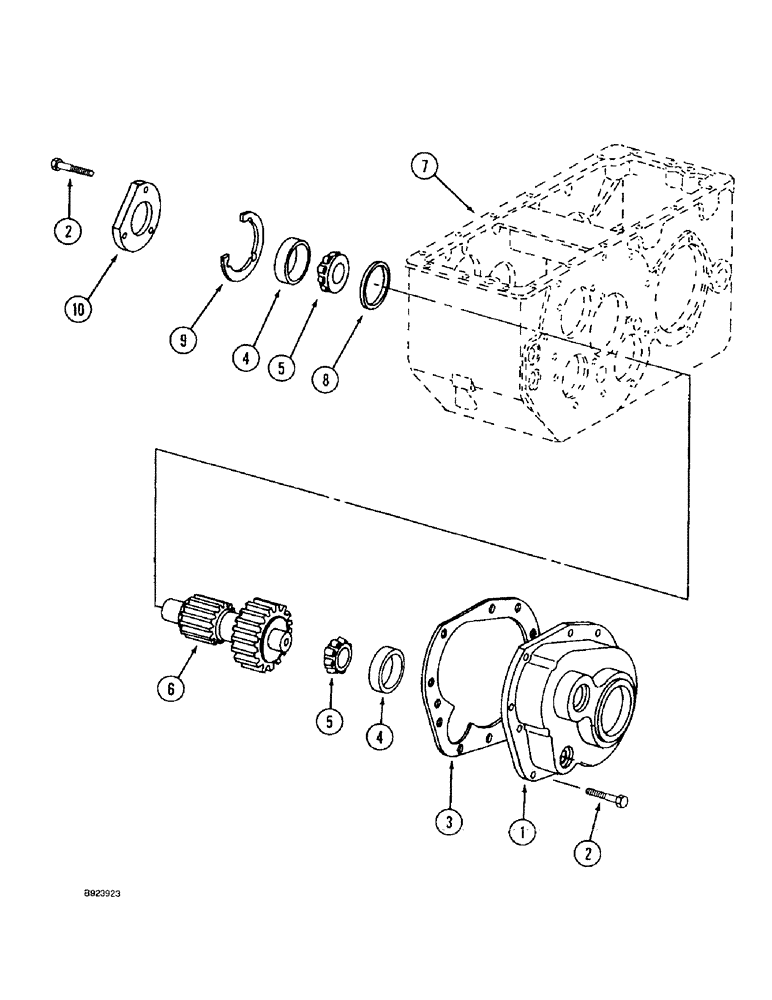

Запчасти Case IH 1644 (6-34) - TRANSMISSION PINION DRIVE SHAFT, PRIOR TO P.I.N. JJC0098060 (03) - POWER TRAIN

1

121811C2

COVER ASSY

gear

1шт.

2

326-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 8

13шт.

3

573997R3

GASKET,0.41mm Thk

cover, change gear

1шт.

4

50213V

BEARING CUP

tapered roller, pinion shaft, 2-3/4 in. OD

2шт.

5

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

tapered roller, pinion shaft, 1-5/16 in. ID

2шт.

6

395630R1

GEAR

SHAFT differential pinion, 13 and 23 teeth

1шт.

7

184079C1

CASE

HOUSING transmission, see Figure 6-36

1шт.

8

381222R1

SHIM

pinion bearing, 0.007 in. thick

1шт.

9

405626R1

SHIM

pinion bearing, 0.003 in. thick

1шт.

10

573971R2

CAP

pinion shaft

1шт.
