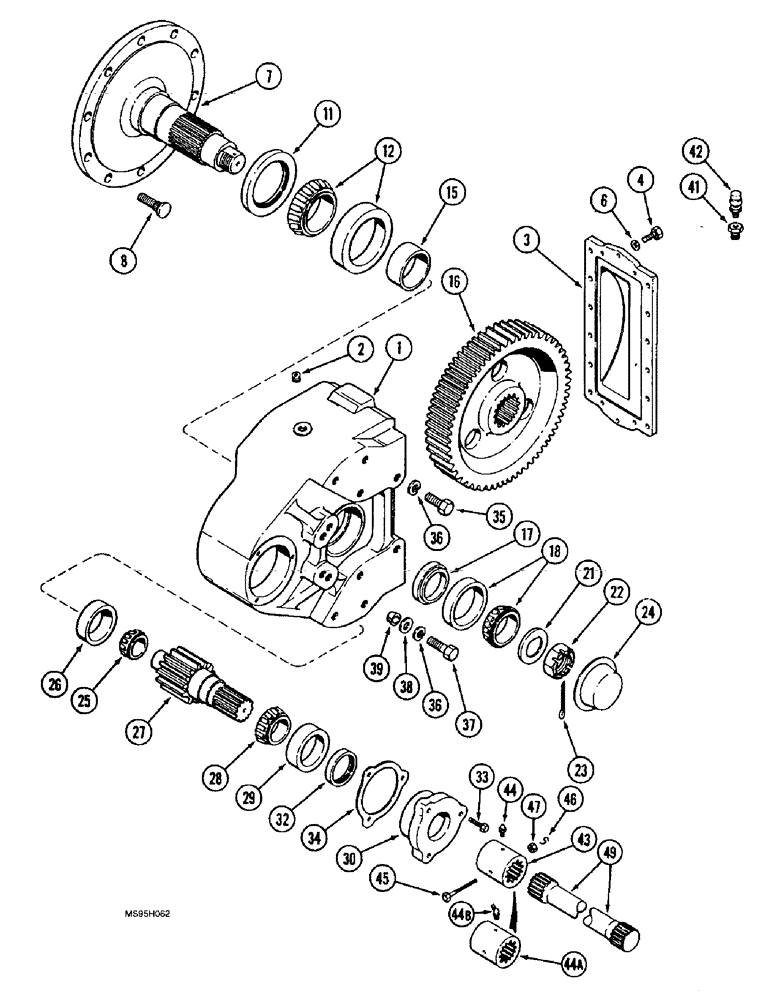

Запчасти Case IH 1644 (6-43A) - FINAL DRIVE, P.I.N. JJC0098060 AND AFTER (03) - POWER TRAIN

1342937C1

DRIVE ASSY.

final, Includes: Ref. 1 - 34

2шт.

1342937C1R

REMAN-GEAR ASSY

Final Drive; For N.A. only

2шт.

1342937C1C

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

1

86851C2

HOUSING

final drive

1шт.

2

217-442

PLUG,3/4" - 14

hex socket, 3/4 in. PT

2шт.

3

86839C2

COVER

housing

1шт.

4

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

12шт.

4

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

6шт.

6

396-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

12шт.

6

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

flat, hardened, 13/32 x 13/16 x 3/32 in.

6шт.

7

1315484C91

SHAFT

ASSY., final drive, Includes: Ref. 8

1шт.

8

565130R3

BOLT,3/4" - 16 x 2 5/8", Class 8

wheel, standard wheels only

10шт.

11

401905R91

OIL SEAL,98.93mm ID x 152.58mm OD x 15.88mm Thk

oil, outer bearing

1шт.

12

283445C91

BEARING ASSY,85.03mm ID x 150.09mm OD x 44.4.5mm W

ASSY., two piece, includes bearing and cup, outer

1шт.

15

130809C1

SPACER

gear

1шт.

16

1342906C1

GEAR

drive, 75 teeth

1шт.

17

130808C1

SPACER

gear

1шт.

18

66116R91

BEARING ASSY,66.67mm ID x 112.71mm OD x 30.16mm W

ASSY., two piece, includes bearing and cup, inner

1шт.

21

403896R1

WASHER

WASHER, final drive

1шт.

22

147030R1

SLOTTED NUT

hex, slotted, special

1шт.

23

432-840

COTTER PIN,1/8" x 2 1/2"

1/8" x 2 1/2"

1шт.

24

403895R1

COVER

CAP, main shaft

1шт.

25

401911R91

BEARING ASSY,44.45mm ID x 31.75mm W

tapered roller, 1-3/4 in. ID, outer

1шт.

26

61012R1

BEARING, CUP,93.66mm OD x 25.4mm W

CUP tapered roller, 3-11/16 in. OD, outer

1шт.

27

1342907C1

SHAFT

pinion

1шт.

28

196454C91

BEARING ASSY,57.15mm ID x 30.96mm W

tapered roller, 2-1/4 in. ID, inner

1шт.

29

360325R1

BEARING, CUP,104.775 mm OD x 23.812 mm

CUP tapered roller, 4-1/8 in. ID, inner

1шт.

30

94649C2

CAGE

inner bearing

1шт.

32

401914R91

OIL SEAL,54.28mm ID x 85.22mm OD x 11.13mm Thk

oil, double lip

1шт.

33

326-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

hex, 3/8 NC x 1-3/4 in., grade 8

3шт.

34

86895C1

SHIM,117.4mm ID x 136.2mm OD x 0.08mm Thk

inner pinion bearing, 0.003 in. thick

1шт.

34

86896C1

SHIM,117.4mm ID x 136.2mm OD x 0.13mm Thk

inner pinion bearing, 0.005 in. thick

1шт.

34

86897C1

SHIM,117.4mm ID x 136.2mm OD x 0.18mm Thk

inner pinion bearing, 0.007 in. thick

1шт.

34

86898C1

SHIM,117.4mm ID x 136.2mm OD x 0.76mm Thk

inner pinion bearing, 0.030 in. thick

1шт.

35

426-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

10шт.

36

392-21075

LOCK WASHER,3/4"

3/4"

14шт.

37

326-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

4шт.

38

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Flat

4шт.

39

163909C1

BUSHING,19.15mm ID x 28.57mm OD x 12.7mm L

tapered, end plate

4шт.

41

221-90

REDUCER,3/4" NPT x 1/8" NPT

REDUCER pipe, 3/4 male x 1/8 in. female

2шт.

42

61991R91

BREATHER,1/8"-27 NPT, Short, w/washer

FITTING housing, 1/8 in. PT

2шт.

43

184341C1

SLEEVE

COUPLING ASSY., axle drive shaft, replaced by 184341C2 coupling assy., Includes: Ref. 44

2шт.

44

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

grease, 45 deg., 1/4-28 special taper x 13/16 in.

2шт.

44a

184341C2

SPLINED COUPLING

ASSY., axle drive shaft, replaces 184341C1 coupling assy., Includes: Ref. 44B

2шт.

44b

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING grease, 65 deg., 1/4 drive type x 3/4 in.

2шт.

45

113-2293

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 8

2шт.

46

21864R1

COTTER PIN

retaining, S type

2шт.

47

654049R1

LOCK NUT

hex, self locking, 3/8 in. NC

2шт.

49

1309012C1

SHAFT

final drive, left hand

1шт.

49

402725R2

SHAFT

final drive, right hand

1шт.
