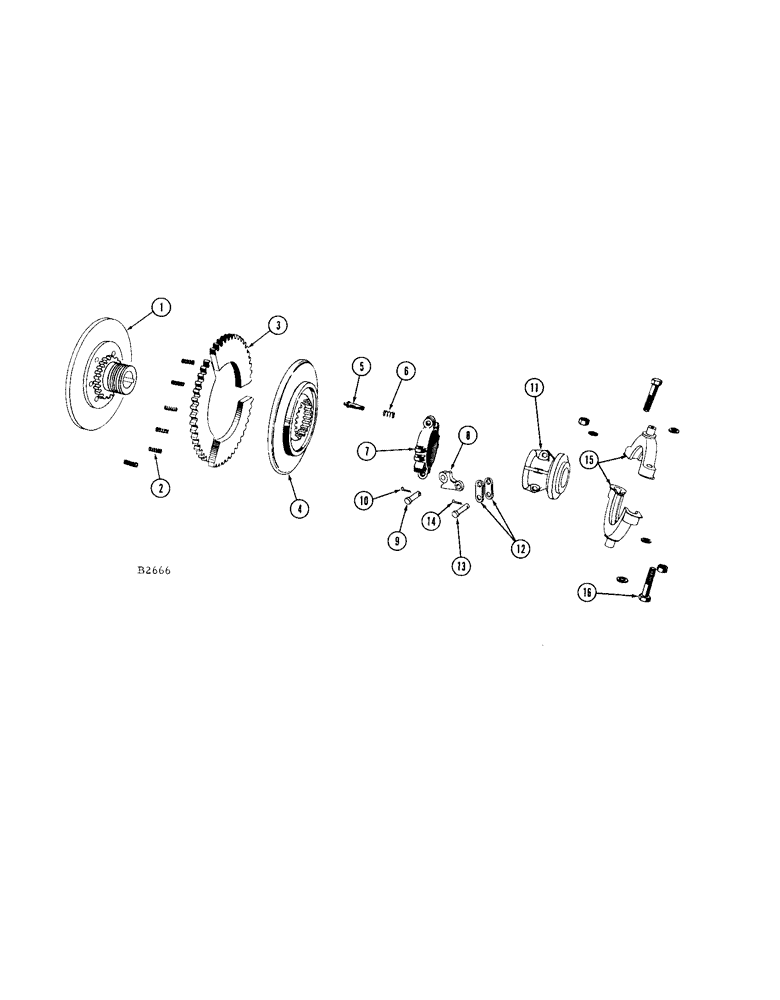

Запчасти Case IH 1660 (074[A]) - OVER CENTER CLUTCH, CLUTCH (60) - PRODUCT FEEDING

1

F2907

HUB and BACK PLATE

1шт.

2

F14639

DETENT

SPRING - release

6шт.

3

F14633

PLATE - driving (3 segments)

1шт.

4

A40198

PLATE ASSY.

PLATE - floating

1шт.

5

A31135

PIN

- lock, adjusting

1шт.

6

A40197

SPRING

- adjusting lock pin

1шт.

7

F3160

YOKE - adjusting

1шт.

8

A31134

LEVER

- toggle

4шт.

9

A40190

PIN

- headed, for Ref. 7 and 8

4шт.

10

132-66

COTTER PIN

PIN - cotter, 5/32" x 5/8" (for Ref. 9)

4шт.

11

F2908

SLEEVE - sliding

1шт.

12

A31137

DRAG LINK

LINK - lever

8шт.

13

A40192

AXLE PIN,8mm OD x 26.16mm L

PIN - lever link, for Ref. 11 and 12

8шт.

14

132-44

COTTER PIN,1/8" x 1/2"

Pin, Split (Cotter), (For Ref. 13) 1/8" x 1/2"

8шт.

15

F11936

X

COLLAR - (liner type - not furnished - use A31140)

1шт.

A31140

COLLAR

- (solid brass)

1шт.

16

O7129A

BOLT

2шт.

F88326

SLIDING SLEEVE ASSEMBLY - may be used in place of F2908 and A31140 when used with F88310 yoke (see P.75B)

1шт.
