(080) - RUB BAR CYL., CONCAVES, TINES, AND REMOV. FEED PLATE, CONCAVE FILLR. ATTACH., GRATE TINE COVER ATTAC

Запчасти Case IH 1660 (080) - RUB BAR CYL., CONCAVES, TINES, AND REMOV. FEED PLATE, CONCAVE FILLR. ATTACH., GRATE TINE COVER ATTAC (66) - THRESHING

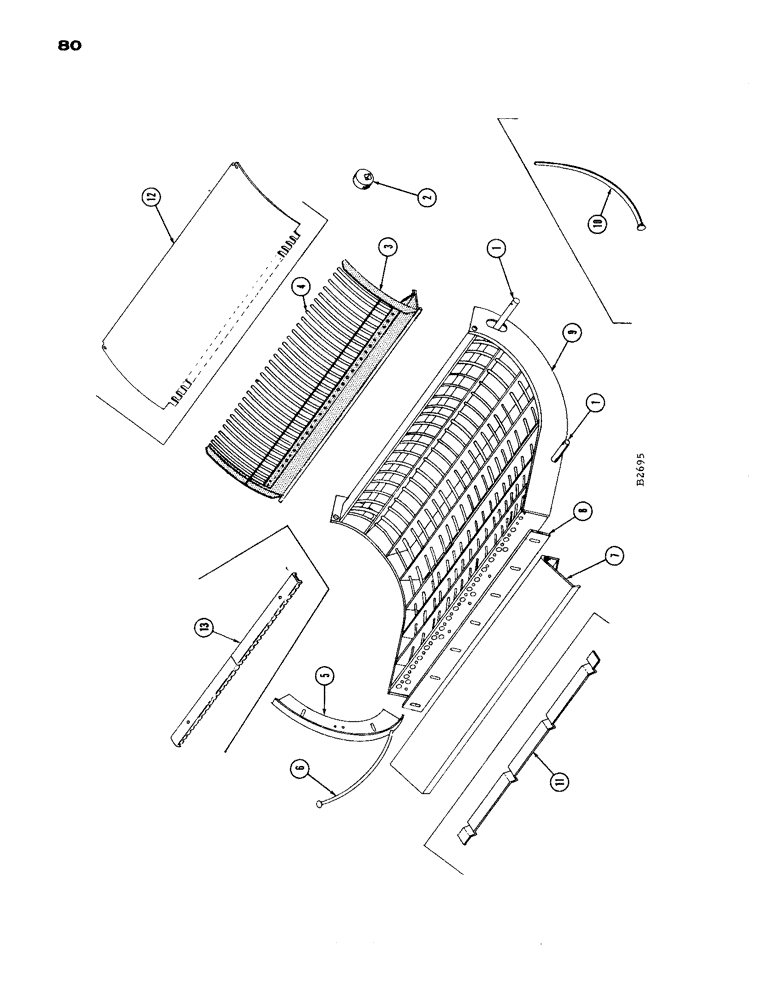

Схема запчастей Case IH 1660 - (080) - RUB BAR CYL., CONCAVES, TINES, AND REMOV. FEED PLATE, CONCAVE FILLR. ATTACH., GRATE TINE COVER ATTAC (66) - THRESHING
2
9
3
5
6
11
1
7
13
10
8
12
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F13757

SHAFT - concave support

2шт.

2

F1327

ECCENTRIC - grate tine

2шт.

11-628

BOLT,Short NK, 3/8"-16 x 1 3/4", G2

- 3/8" x 1-3/4" rhd. sq. nk.

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

F88675

GRATE TINE ASSEMBLY - (#8359001 and after) Replaces F87504 when stock is exh.

1шт.

F13740

TINE

- grate

32шт.

3

F87504

GRATE TINE ASSEMBLY - (Before #8359001) Replaced by F88675 when stocks are exh.

1шт.

4

F13740

TINE

- grate

33шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , For ref. 3 1/8" x 3/4"

2шт.

5

F13677

SCREW

SHIELD - cylinder

2шт.

77-410

BOLT (MACHINE)

SCREW - 1/4" x 5/8" tr. hd. mach.

6шт.

25-104

NUT,1/4"-20, G5

6шт.

6

F13756

ROD - grate tine (short) See Ref. 10

32шт.

7

F87513

FEED PLATE - cylinder (Regular)

1шт.

F87882

FEED PALTE - cylinder (Stone Trap)

1шт.

8

F13755

PLATE - wear

1шт.

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex.

7шт.

195-25

WASHER,3/8"

- SAE std. flat 3/8"

7шт.

131-528

LOCK NUT,3/8"-24

NUT - 3/8" N.F. flexloc

7шт.

9

F87515

CONCAVE ASSEMBLY

1шт.

10

F14063

ROD - concave (long) See Ref. 6

32шт.

11

F13470

FILLER BAR - concave filler attachment

3шт.

12

F14066

COVER - grate tine cover attachment before serial no. 8359001

1шт.

412-410

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 5/8", Gr 2

BOLT - 1/4" x 5/8" rhd. sq. nk., grate tine cover attachment before serial no. 8359001

2шт.

131-48

LOCK NUT,1/4"-20, GB

NUT - 1/4" N.C. Esna #42NE-040, grate tine cover attachment before serial no. 8359001

2шт.

F30009

COVER - grate tine cover attachment serial no. 8359001 and after

1шт.

111-342

BOLT - 3/8" x 1" rhd. sq. nk., grate tine cover attachment serial no. 8359001 and after

2шт.

131-52

NUT,3/8"-16, GC

NUT - 3/8" N.C. ESNA #21 NE-066, grate tine cover attachment serial no. 8359001 and after

2шт.

195-525

WASHER,3/8", SAE

grate tine cover attachment S/N 8359001 and after 3/8", SAE

2шт.

13

F88701

FILLER BAR ASSEMBLY - (magnetic) concave, magnetic filler bar attachment

3шт.
