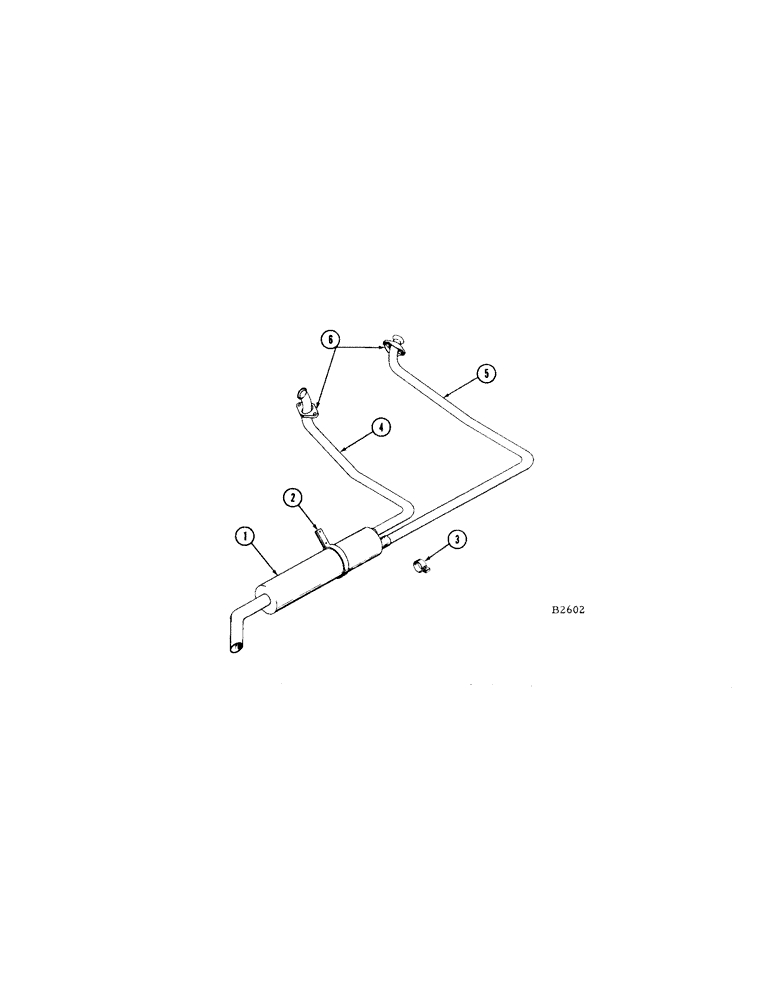

Запчасти Case IH 1660 (238[A]) - MUFFLER AND EXHAUST PIPES (10) - ENGINE

1

F86760

MUFFLER

ENGINE - muffler

1шт.

2

F12704

BRACKET - muffler

2шт.

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F. hex.

2шт.

92-5

LOCK WASHER,5/16"

2шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.

3

F13960

CLAMP - muffler

2шт.

4

F14176

PIPE - exhaust, rear

1шт.

5

F14175

PIPE - exhaust, front

1шт.

6

F14160

FLANGE

- exhaust pipe

2шт.

13-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

4шт.

92-7

LOCK WASHER,7/16"

4шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

4шт.
