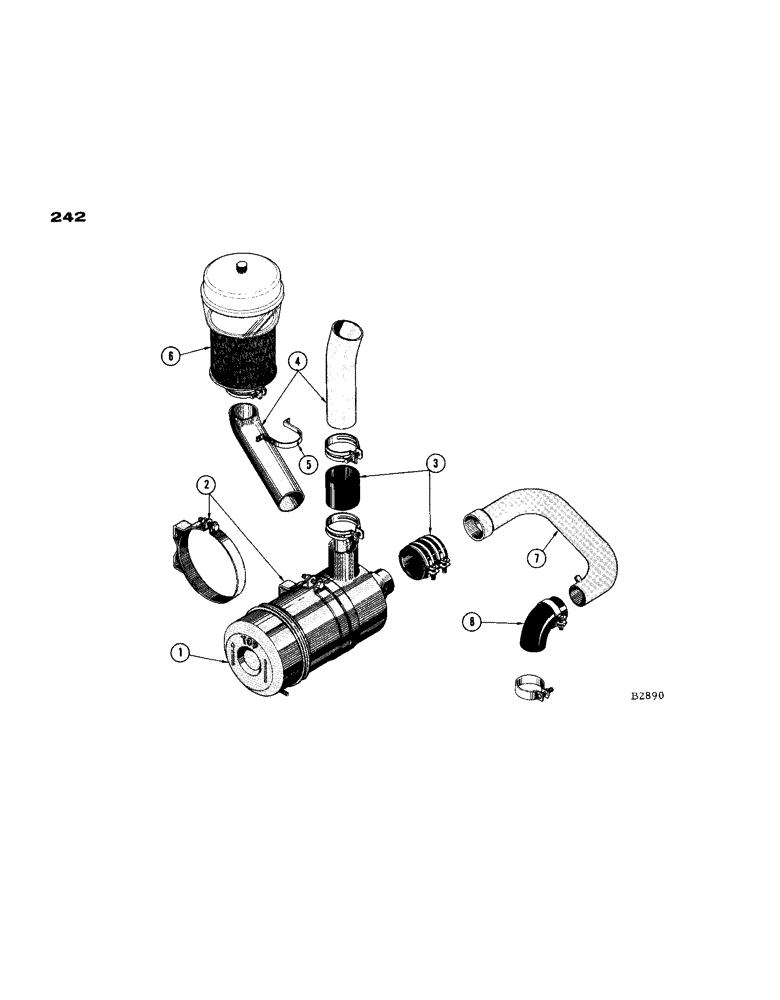

Запчасти Case IH 1660 (242) - AIR CLEANER AND STACK, S/N 8368001 AND AFTER (10) - ENGINE

1

D36261

CLEANER

AIR CLEANER - dry type

1шт.

2

F77624

X

BAND - mounting, air cleaner

2шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-24 x 5/8", G5, Full Thd

4шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

4шт.

92-5

LOCK WASHER,5/16"

4шт.

3

A23802

HOSE

2шт.

214-39

X

CLAMP - (for F23802 hoses)

4шт.

4

F30356

AIR STACK

1шт.

5

F30357

CLAMP - air stack

1шт.

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - 1/4" x 3/4" rhd. sq. nk.

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25-104

NUT,1/4"-20, G5

2шт.

6

F87566

PRE-SCREENER

1шт.

7

F98053

TUBE - air cleaner

1шт.

8

F13851

ELBOW - tube to carburetor (Gas)

1шт.

214-37

X

CLAMP - hose

2шт.
