(184[A]) - BATTERY TRAY, S/N 8368001 AND AFTER

Запчасти Case IH 1660 (184[A]) - BATTERY TRAY, S/N 8368001 AND AFTER (55) - ELECTRICAL SYSTEMS

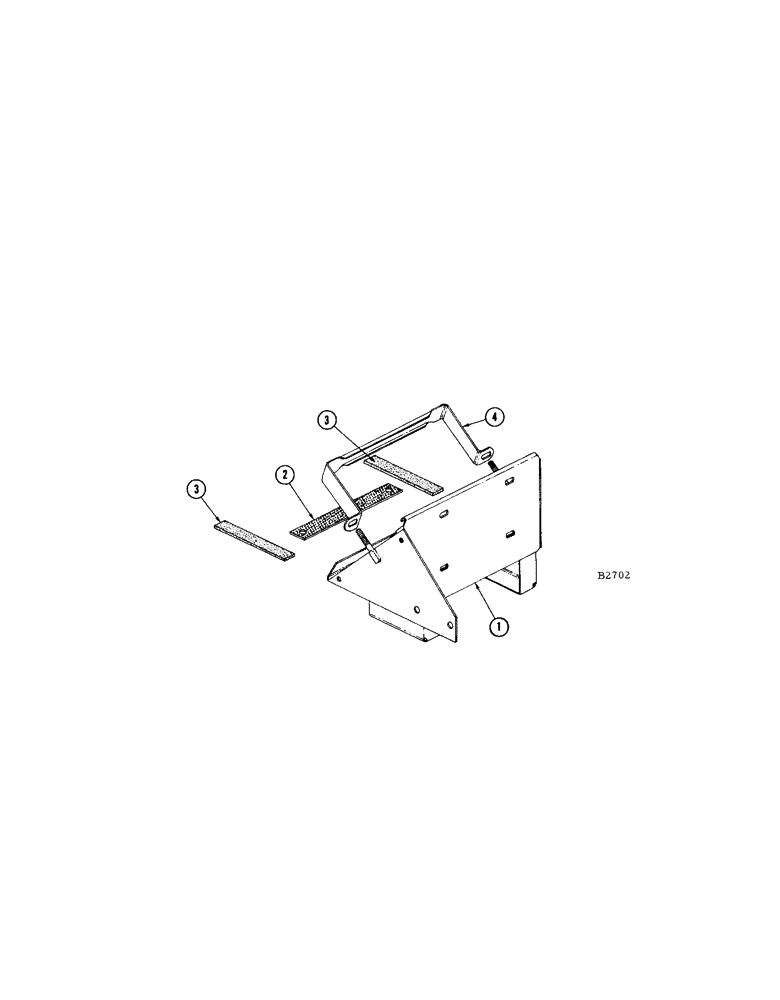

Схема запчастей Case IH 1660 - (184[A]) - BATTERY TRAY, S/N 8368001 AND AFTER (55) - ELECTRICAL SYSTEMS
3
4
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F88897

SUPPORT ASSY. - Battery and Oil Reservoir

1шт.

2

F10143

PAD - hyd. line protector

1шт.

3

A7390

PAD - rubber

2шт.

4

F30363

STRAP - battery hold down

1шт.

195-25

WASHER,3/8"

- flat SAE. Std. 3/8"

2шт.

131-6

LOCK NUT,3/8"-16, GC

NUT - 3/8" Esna N.C.

2шт.

D44175

DRY BATTERY

- 12 volt

1шт.

A7441

CABLE

- battery ground

1шт.

A20634

CABLE -, Serial Range: battery-starter

1шт.
