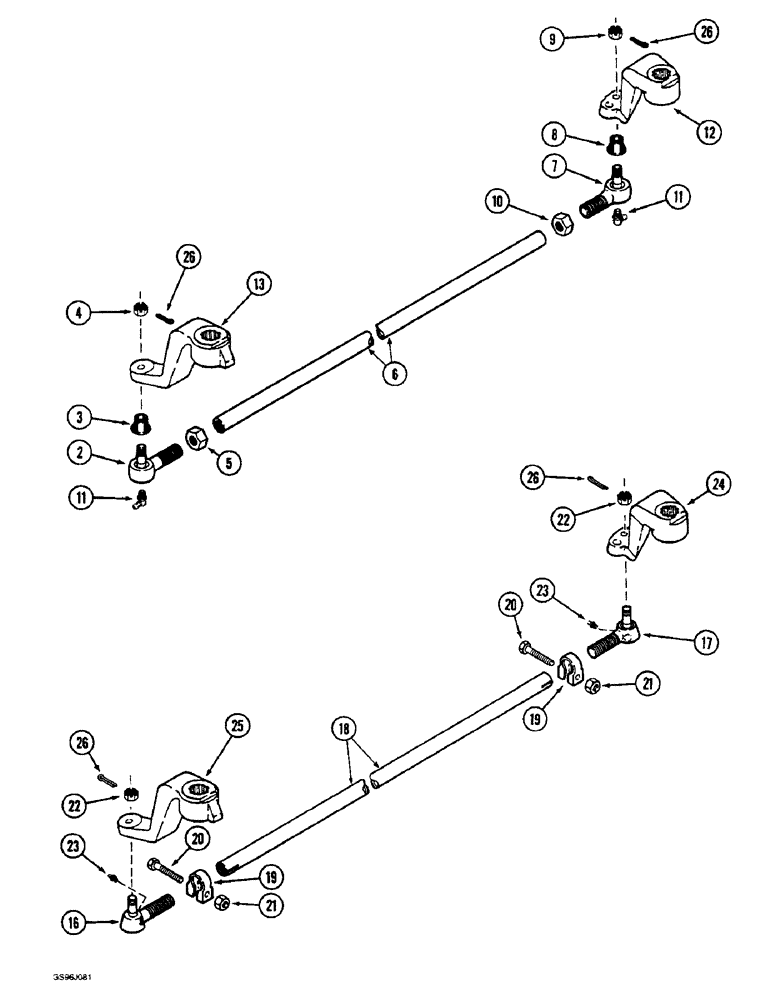

Запчасти Case IH 1660 (5-18) - STEERING TIE RODS, NONADJUSTABLE AXLE (04) - STEERING

177774C91

ROD

ASSEMBLY - tie, no longer available, order rod assembly 177772C91 below, Includes: Ref. 2 - 10

1шт.

O & S manufacture. Entire assembly is interchangeable with rod assembly 177772C91. Components of assemblies are not interchangeable. Order parts carefully. For service of complete tie rod, order rod assembly 177772C91.

1шт.

2

379551R92

END ASSY.

END ASSEMBLY - tie rod, right hand, Includes: Ref. 3 and 4

1шт.

3

A41424

SEAL

- tie rod end (Replaces seal 382562R1)

1шт.

4

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex slotted, 5/8 inch NF (Replaces nut 125267)

1шт.

5

374062R1

JAM NUT

NUT - hex lock, tie rod, right hand thread

1шт.

6

NSS

NOT SOLD SEPARAT

TUBE - tie rod, order rod assembly 177772C91

1шт.

7

180201C91

END

ASSEMBLY - tie rod, left hand, Includes: Ref. 8 - 10

1шт.

8

382562R1

SEAL

- tie rod end

1шт.

9

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex slotted, 5/8 inch NF (Replaces nut 125267)

1шт.

10

374061R1

JAM NUT

- hex lock, tie rod, left hand thread

1шт.

11

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4-28 taper x 3/4 inch (Replaces fitting 16964R91)

2шт.

12

REF

INSTRUCTION

ARM - steering, lef hand, see Fig. 5-17

1шт.

13

REF

INSTRUCTION

ARM - steering, right hand, see Fig. 5-17

1шт.

177772C91

ROD ASSY.

ROD ASSEMBLY - tie, Includes: Ref. 16 - 21

1шт.

Columbus manufacture. Entire assembly is interchangeable with rod assembly 177774C91. Components of assemblies are not interchangeable. Order parts carefully.

1шт.

16

180203C1

END ASSY.

END - tie rod, right hand

1шт.

17

180202C1

END ASSY.

END - tie rod, left hand

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - tie rod, order rod assembly 177772C91

1шт.

19

1300176C1

CLAMP,28.5mm ID

ASSEMBLY - tie rod, Includes: Ref. 20 and 21

2шт.

20

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

1шт.

21

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

1шт.

22

NLS

NO LONGER SERVICED

- hex slotted, 5/8 inch NF

2шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

24

REF

INSTRUCTION

ARM - steering, left hand, see Fig. 5-17

1шт.

25

REF

INSTRUCTION

ARM - steering, right hand, see Fig. 5-17

1шт.

26

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

4шт.
