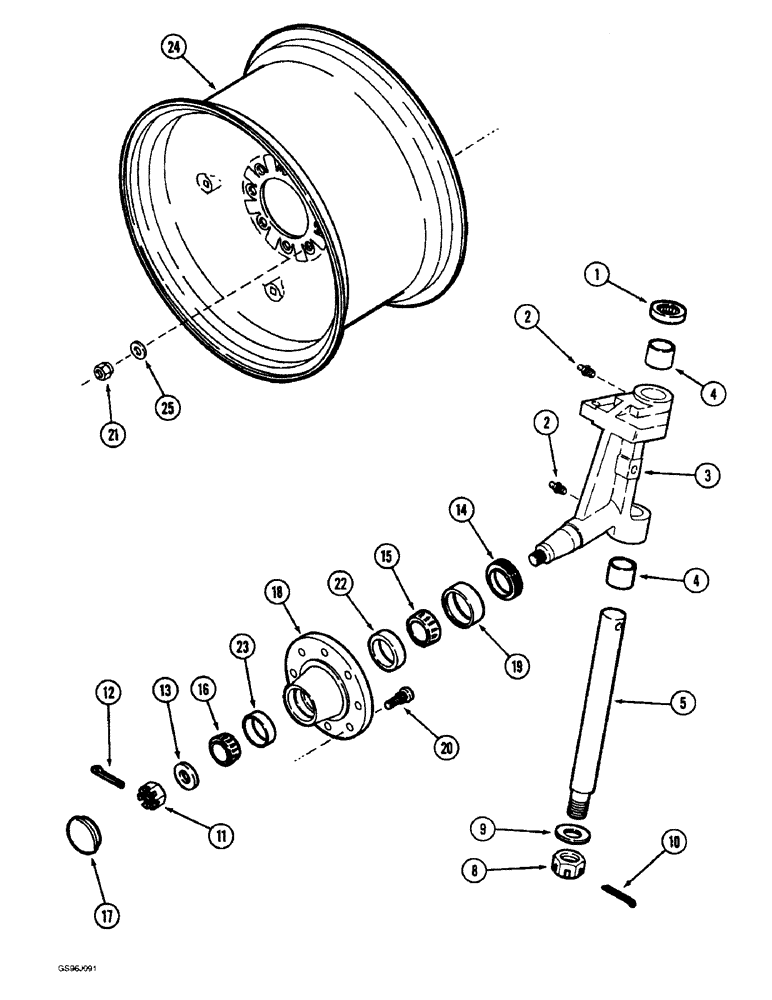

Запчасти Case IH 1660 (5-38) - STEERING KNUCKLE, HUB AND WHEELS, RICE COMBINE ONLY (04) - STEERING

1

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

BEARING - roller, steering knuckle

2шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

4шт.

3

185439C91

STEERING KNUCKLE

KNUCKLE ASSEMBLY - steering, left-hand, Includes: Ref. 4

1шт.

3

185440C91

STEERING KNUCKLE

KNUCKLE ASSEMBLY - steering, right-hand, Includes: Ref. 4

1шт.

4

186680C1

BUSHING,50.93mm ID x 55.56mm OD x 50.8mm L

- king pin

4шт.

5

186052C1

PIN,50.8mm OD x 508mm L

- king

2шт.

8

25-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - hex slotted, 1-1/2 inch NC (Replaces nut 272083)

2шт.

9

95-81041

WASHER,38.89mm ID x 76.2mm OD x 3.4mm Thk

- flat, 1-17/32 x 3 x 7/64 inch

2шт.

10

432-1648

COTTER PIN,1/4" x 3"

(Replaces pin 137318) 1/4" x 3"

2шт.

11

425-1316

NUT,1"-14, G5

NUT - hex, slotted, 1 inch NF

2шт.

12

432-1232

COTTER PIN,3/16" OD x 2" L

(Replaces pin 137258) 3/16" x 2"

2шт.

13

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

- flat, 1-1/32 x 2-1/4 x 1/4 inch

2шт.

14

169329C91

OIL SEAL,63.3mm ID x 95.81mm OD x 8mm Thk

- oil

2шт.

15

625742C91

BEARING

- tapered roller, 2-1/16 inch ID

2шт.

16

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING - tapered roller, 1-5/8 inch ID

2шт.

17

560950R1

HUB CAP

CAP - wheel hub

2шт.

18

169293C11

HUB

ASSEMBLY - wheel, Includes: Ref. 19 - 23

2шт.

19

169328C1

SLEEVE

RING - wear, oil seal

1шт.

20

366021R2

BOLT,Round, 5/8" - 18 x 2 1/4"

- fluted, 5/8 NF x 2-9/16 inch

8шт.

21

554480R1

WHEEL NUT

- hex, special, 5/8 inch NF

8шт.

22

625743C1

BEARING CUP,90mm OD x 18.5mm W

CUP - tapered roller bearing, 3-35/64 inch OD

1шт.

23

663558R1

BEARING CUP

CUP - tapered roller bearing, 2-57/64 inch OD

1шт.

24

186642C2

WHEEL

- 18.4-16 inch tire, for 16.1 x 16 tire

2шт.

24

188759C2

RIM

WHEEL - for 11.2 x 24 tire (Replaces wheel 188759C1)

2шт.

24

1541719C1

RIM

WHEEL - for 14.9 x 24 tire (Replaces wheel 376196R91)

2шт.

25

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

- flat, 21/32 x 1-1/2 x 3/16 inch, hardened, used with 186642C2 wheel only

16шт.
