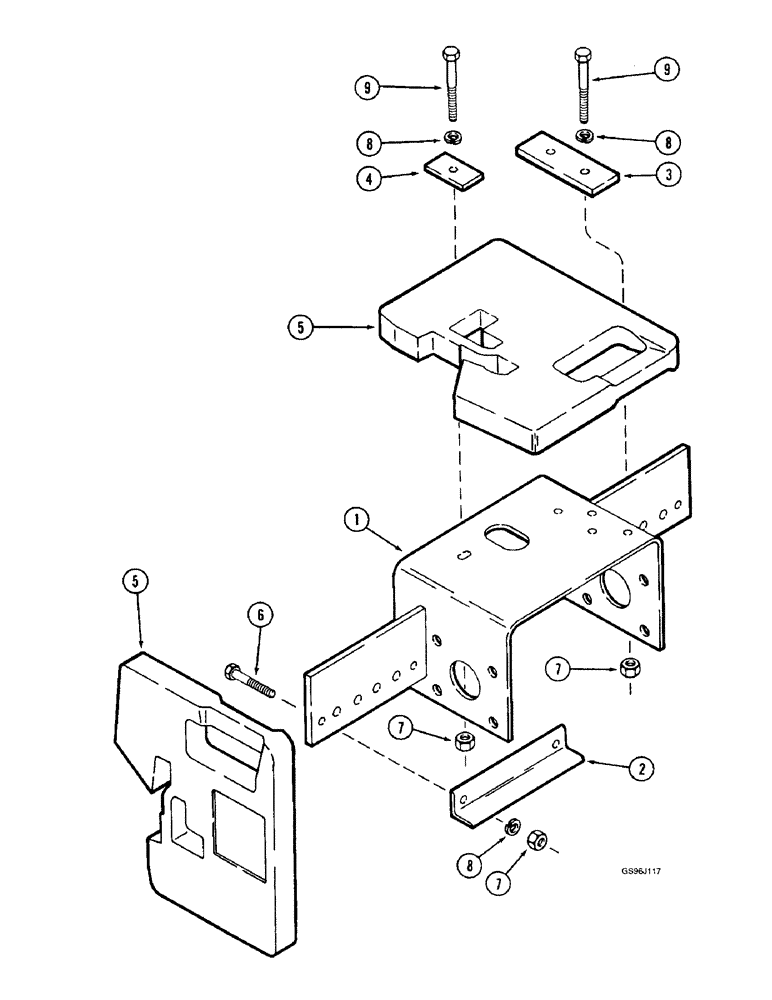

Запчасти Case IH 1660 (5-90) - STEERING AXLE WEIGHTS (04) - STEERING

1

185365C1

SUPPORT

- weight

1шт.

Do not use weights and brackets on combines equipped with power guide axles.

1шт.

2

1308872C1

BRACKET

ANGLE - weight retaining

2шт.

3

178434C1

CLAMP

- weight

1шт.

4

561838R1

PLATE

CLAMP - weight

1шт.

5

NSS

NOT SOLD SEPARAT

WEIGHT - 100 pounds, machinery item

1шт.

6

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch (Replaces bolt 180185)

4шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

7шт.

9

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

- hex, 1/2 NC x 5-1/2 inch (Replaces bolt 445608)

3шт.
