(4-24) - REAR LAMPS AND FUEL SENDER HARNESS

Запчасти Case IH 1660 (4-24) - REAR LAMPS AND FUEL SENDER HARNESS (06) - ELECTRICAL

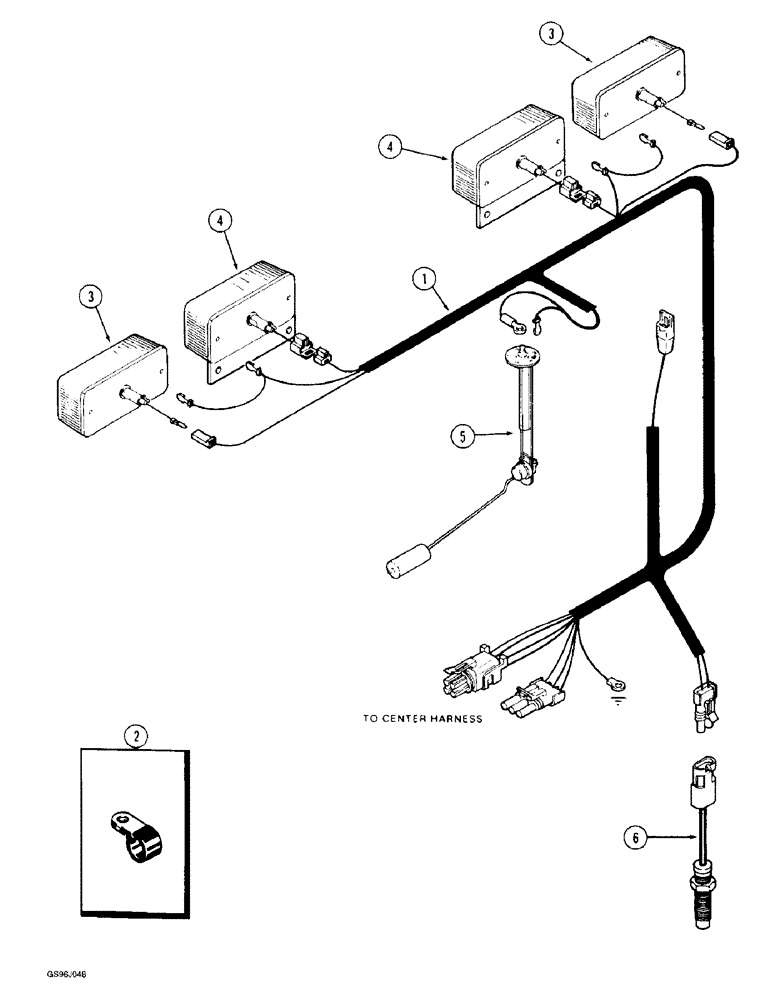

Схема запчастей Case IH 1660 - (4-24) - REAR LAMPS AND FUEL SENDER HARNESS (06) - ELECTRICAL
4
2
3
6
3
4
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

245228C2

HARNESS

- rear lamps and fuel sender

1шт.

2

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

P-type 1 1/4", Insul, 7/16" Bolt

1шт.

3

130882C91

LAMP

LAMP ASSEMBLY - warning rear, parts list, Includes: Fig. 4-36

2шт.

4

216044C92

LAMP

ASSEMBLY - tail, parts list, Includes: Fig. 4-36

2шт.

5

198024C1

FUEL GAUGE

GAUGE - fuel level sending unit, see Fig. 3-12

1шт.

6

1252494C2

TRANSMITTER

SENSOR - engine RPM

1шт.
