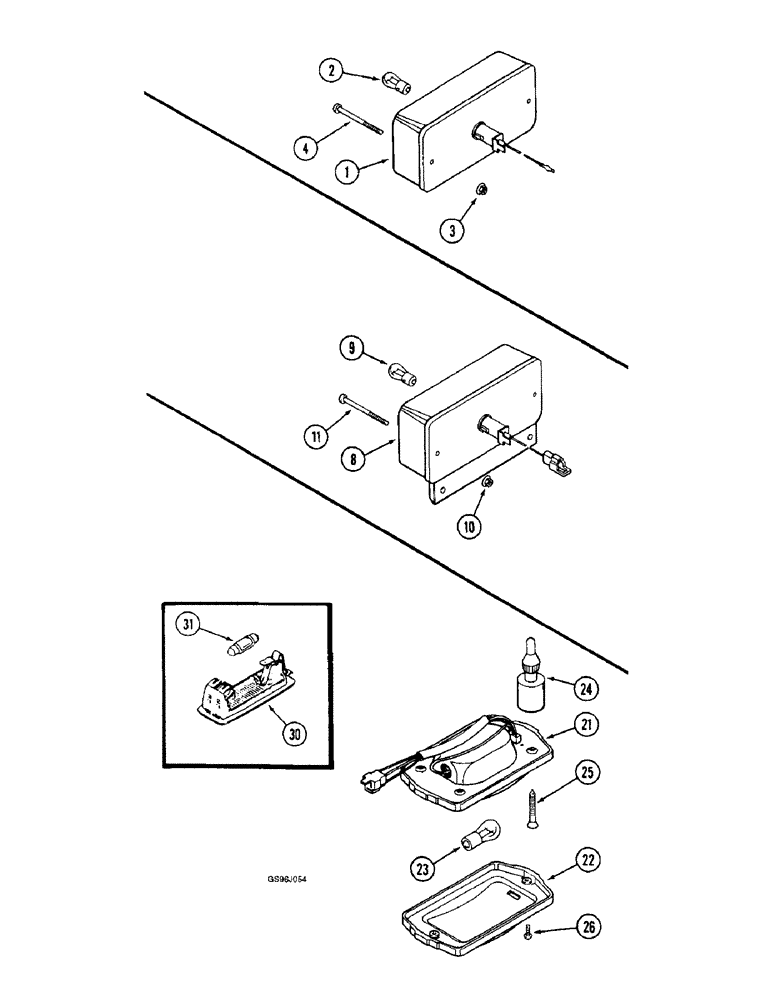

Запчасти Case IH 1660 (4-36) - LAMP ASSEMBLIES, FRONT AND REAR WARNING (06) - ELECTRICAL

130882C91

LAMP

LAMP ASSEMBLY - warning, Includes: Ref. 1 - 4

4шт.

1

130883C1

LENS

- amber

1шт.

2

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

3

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

4

26618R1

SCREW

- pan head machine, No. 10-24 NC x 1-1/2 inch

2шт.

216044C92

LAMP

ASSEMBLY - stop and tail, two wire

2шт.

92260C1

LAMP,12V, 27W, Red

ASSEMBLY - stop and tail, three wire, Includes: Ref. 8 - 11

2шт.

8

216045C1

LENS

- red, stop and tail

1шт.

9

T34857

BULB,C6, #1157, 12.8V

- lamp, No. 1157, stop and tail

1шт.

10

231-51409

SERRATED NUT,Flg, USR, #10-24

Stop and tail Flg, USR, #10-24

2шт.

11

26618R1

SCREW

- pan head machine, No. 10-24 NC x 1-1/2 inch, stop and tail

2шт.

21

245659C91

LAMP

ASSEMBLY - dome Fig. 22 and 23

1шт.

22

245679C1

LENS

- dome lamp

1шт.

23

142457

BULB,C6, #1142, 12.8V

LAMP - type C-6, No. 1142, dome

1шт.

117995C1

PACKAGE

KIT - fastener, package of five, dome, Includes: Ref. 24

1шт.

24

NSS

NOT SOLD SEPARAT

FASTENER - dome lamp, order kit 117995C1,dome

4шт.

25

27071R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 1/2"

SCREW - tapping, No. 8-18 x 1-1/2 inch, dome

4шт.

26

NSS

NOT SOLD SEPARAT

SCREW - lens mounting, order lamp assembly 245659C91, dome

2шт.

30

1983391C1

LAMP,12V, 10W

ASSEMBLY - dome (Replaces lamp assembly K303720), dome, Includes: Ref. 31

1шт.

31

3050958R1

BULB,K, 12V, 10W

- lamp (Replaces bulb 1094378R1), dome K, 12V, 10W

1шт.
