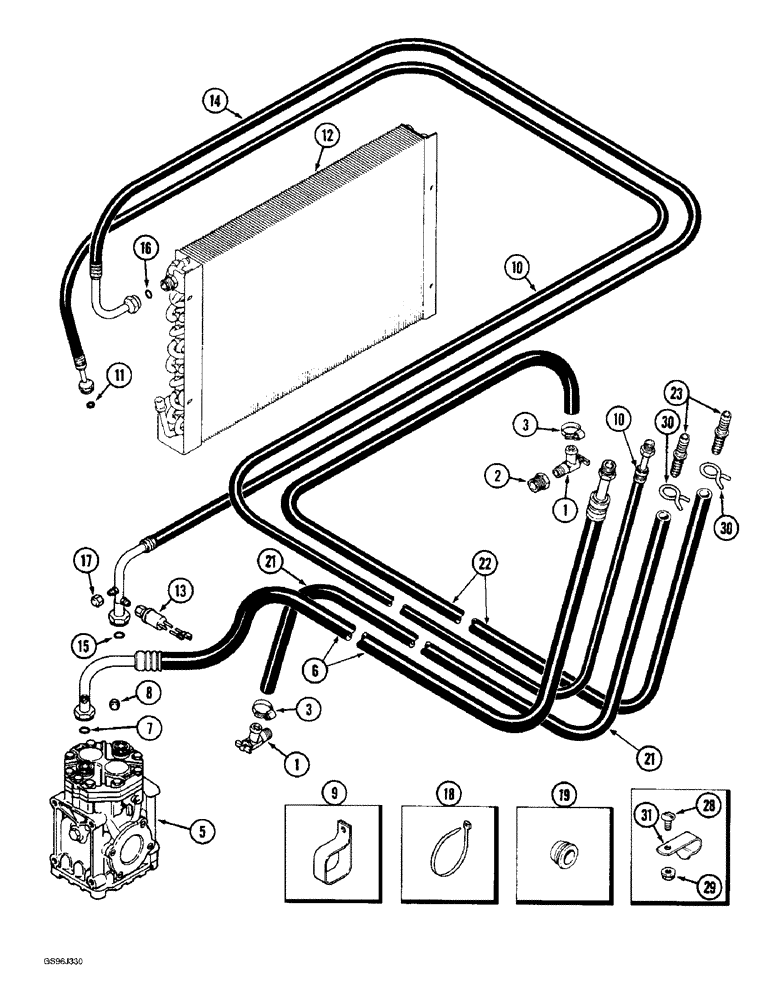

Запчасти Case IH 1660 (9G-40) - HEATER AND AIR CONDITIONING, CHASSIS CONNECTIONS (10) - CAB & AIR CONDITIONING

1

301803R1

SHUT-OFF VALVE

VALVE - shutoff

2шт.

2

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

1шт.

3

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

2шт.

5

1255750C91

COMPRESSOR

ASSEMBLY - air conditioning, parts list Fig. 9G-48

1шт.

6

1276165C1

HOSE

ASSEMBLY - compressor to cab, 201 inch (5105 mm) long, Includes: Ref. 7 and 8

1шт.

7

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

8

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, 7/16-20 inch female, 45 degree flare

1шт.

9

1301387C2

CLIP

CLAMP - square, 2 inch ID

1шт.

10

1276165C1

HOSE

ASSEMBLY - compressor to cab, 201 inch (5105 mm) long, Includes: Ref. 10

1шт.

10

1276162C3

HOSE

ASSEMBLY - condenser to cab, 240 inch (6096 mm) long, Includes: Ref. 10

1шт.

11

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

12

183901C2

CONDENSER

COIL - air conditioner condenser

1шт.

13

234920A1

SWITCH, PRESSURE

SWITCH - high pressure (Replaces switch 111266C1)

1шт.

14

1276161C2

HOSE

ASSEMBLY - compressor to condenser, Includes: Ref. 15 - 17

1шт.

15

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

16

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

17

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, 7/16-20 inch female, 45 degree flare

2шт.

18

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch, 4 inch maximum bundle

1шт.

18

702093C1

CABLE TIE

STRAP - tie, 3 inch maximum bundle

1шт.

19

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- 3/4 inch ID, hose

2шт.

19

198827C1

GROMMET,22.22mm ID x 41.1mm OD x 26.9mm Thk

- 7/8 inch ID, heater hose

2шт.

19

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

- 1 inch ID, hose

2шт.

21

NSS

NOT SOLD SEPARAT

HOSE - heater, red, 255 inch (5715 mm) long, cut from bulk hose 1255859C2 below

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - heater, 298 inch (7569 mm) long

1шт.

23

1301342C1

FITTING

ADAPTER - straight, special

2шт.

28

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

1шт.

29

231-5146

FLANGE NUT,3/8"-16

1шт.

30

214-1314

HOSE CLAMP,#14, 7/8", Spring

CLAMP, HOSE, (Replaces clamp 313318R1) #14, 7/8", Spring

2шт.

31

66498C1

CLIP

- retaining

1шт.

1255859C2

HOSE

- bulk, 50 foot (15240 mm) long, sold by the piece

1шт.
