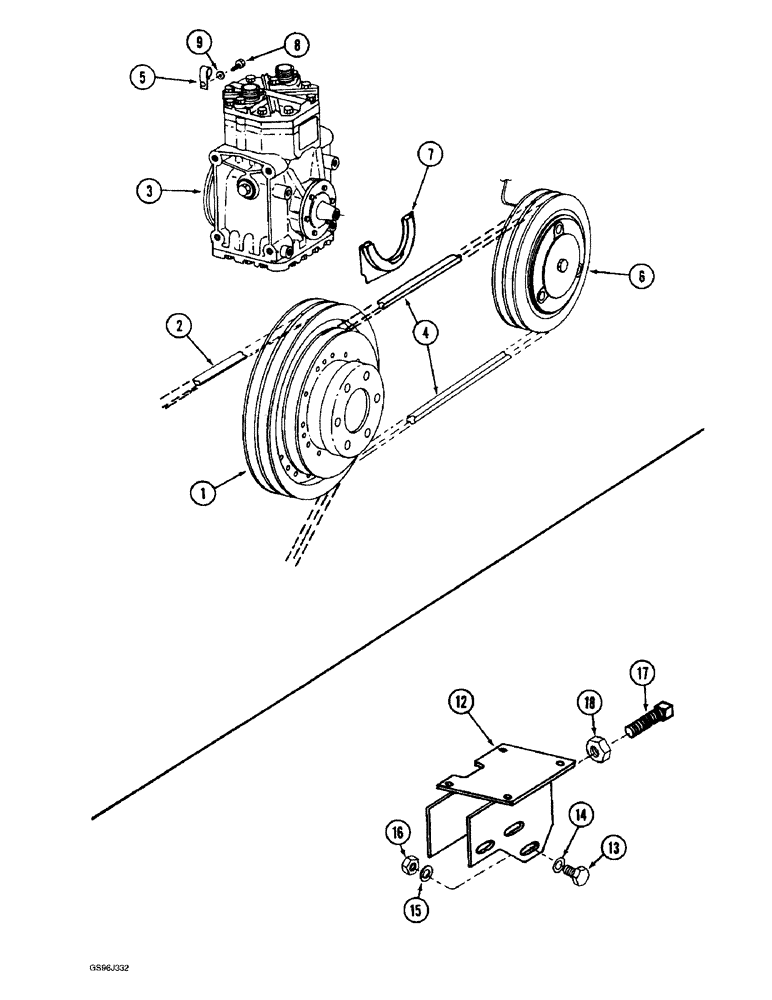

Запчасти Case IH 1660 (9G-44) - AIR CONDITONING COMPRESSOR PULLEYS, CLUTCH AND BELTS (10) - CAB & AIR CONDITIONING

1

691562C1

PULLEY

- fan and water pump, three belt grooves

1шт.

2

537072R91

SET OF BELTS

Matched, Drive, Fan

1шт.

3

1255750C91

COMPRESSOR

ASSEMBLY - air conditioning, parts list Fig. 9G-48

1шт.

492-11038

LOCK WASHER,3/8"

4шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

4

164550R2

V-BELT,42.50" L

Drive, Compressor 42.50" L

1шт.

5

362667R1

CLIP

CLAMP - retainer

1шт.

6

143405C91

PULLEY

CLUTCH ASSEMBLY - compressor, Includes: Ref. 7, parts list Fig. 9G-46

1шт.

7

245983C1

AIR CONDITIONER

WICK - compressor

1шт.

8

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

9

492-11038

LOCK WASHER,3/8"

1шт.

12

143140C1

BRACKET

SUPPORT - mounting, compressor, air conditioner

1шт.

13

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8 NC x 3-1/4 inch, air conditioner compressor mounting

3шт.

14

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened, Air conditioner compressor mounting

3шт.

15

492-11038

LOCK WASHER,3/8"

air conditioner compressor mounting 3/8"

3шт.

16

425-106

NUT,3/8"-16, Cl 5

Air conditioner compressor mounting 3/8"-16, G5

3шт.

17

485-13848

SET SCREW,Sq Hd, 3/8"-16 x 3"

SCREW - square head set, 3/8 NC x 3 inch, air conditioner compressor mounting

1шт.

18

329-146

JAM NUT,Jam, 3/8"-16, G5

Air conditioner compressor mounting Jam, 3/8"-16, G5

1шт.
