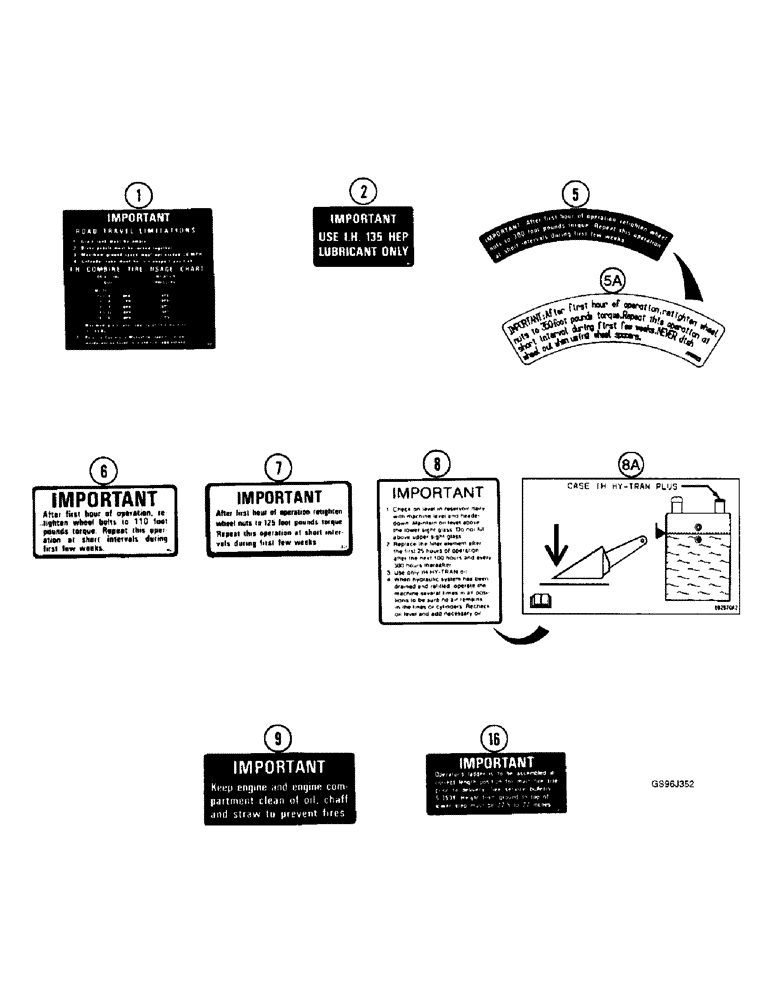

Запчасти Case IH 1660 (9H-32) - DECALS, IMPORTANT INSTRUCTIONS (12) - CHASSIS

1

1321318C4

DECAL

- tire chart, 180 bushel (Replaces decal 1321318C3)

1шт.

1

1321320C2

DECAL

- Important, road travel limitations, French

1шт.

1

1321319C2

DECAL

- Important, road travel limitations, Spanish

1шт.

2

186051C1

PRODUCT GRAPHIC

DECAL - Important, use I.H. 135 HEP lubricant only

1шт.

2

1300115C1

DECAL

- Important, use I.H. 135 HEP lubricant only, French

1шт.

2

1300347C1

DECAL

- Important, use I.H. 135 HEP lubricant only, Spanish

1шт.

5

180536C1

PRODUCT GRAPHIC

DECAL - wheel nut torque, 300 foot pound

2шт.

5

1300053C1

DECAL

- wheel nut torque, French, 300 foot pound, no longer available, order decal 1970415C2, item 5A

2шт.

5

1300361C1

DECAL

- wheel nut torque, Spanish, 300 foot pound, no longer available, order decal 1970416C2, item 5A

2шт.

5a

1970415C2

DECAL

- wheel nut torque, 350 foot pound, French

2шт.

5a

1970416C2

DECAL

- wheel nut torque, 350 foot pound, Spanish

2шт.

6

180409C1

DECAL

- Important, after first hour of operation, retighten wheel bolts to 110 foot pounds torque

2шт.

6

1300109C1

DECAL

- Important, after first hour of operation, retighten wheel bolts to 110 foot pounds torque, French

2шт.

6

1300329C1

DECAL

- Important, after first hour of operation, retighten wheel bolts to 110 foot pounds torque, Spanish

2шт.

7

185427C1

DECAL

- Important, after first hour of operation, retighten wheel bolts to 125 foot pounds torque

2шт.

7

1300112C1

DECAL

- Important, after first hour of operation retighten wheel bolts to 125 foot pounds torque, French

2шт.

7

1300351C1

DECAL

- Important, after first hour of operation, retighten wheel bolts to 125 foot pounds torque, Spanish

2шт.

8

180180C1

PRODUCT GRAPHIC

DECAL - Important, check on level in reservoir daily

1шт.

8

1300049C1

DECAL

- Important, check on level in reservoir daily, French

1шт.

8

1300393C1

DECAL

- Important, check on level in reservoir daily, Spanish, no longer available, order decal 182570A2, item 8A

1шт.

8a

182570A2

DECAL

- Important, check on level in reservoir daily

1шт.

9

173881C1

DECAL

- Important, keep engine and engine compartment clean

1шт.

9

1300039C1

DECAL

- Important, keep engine and engine compartment clean, French

1шт.

9

1300395C1

DECAL

- Important, keep engine and engine compartment clean, Spanish

1шт.

16

1095361R1

DECAL

- Important, operator\qs ladder is to be assembled in correct length position

1шт.

16

1300133C1

DECAL

- Important, operator\qs ladder is to be assembled in correct length position, French

1шт.

16

1300355C1

DECAL

- Important, operator\qs ladder is to be assembled in correct length position, Spanish

1шт.
