(2-14) - AIR CLEANER AND ATTACHING PARTS, DT466B ENGINE

Запчасти Case IH 1660 (2-14) - AIR CLEANER AND ATTACHING PARTS, DT466B ENGINE (01) - ENGINE

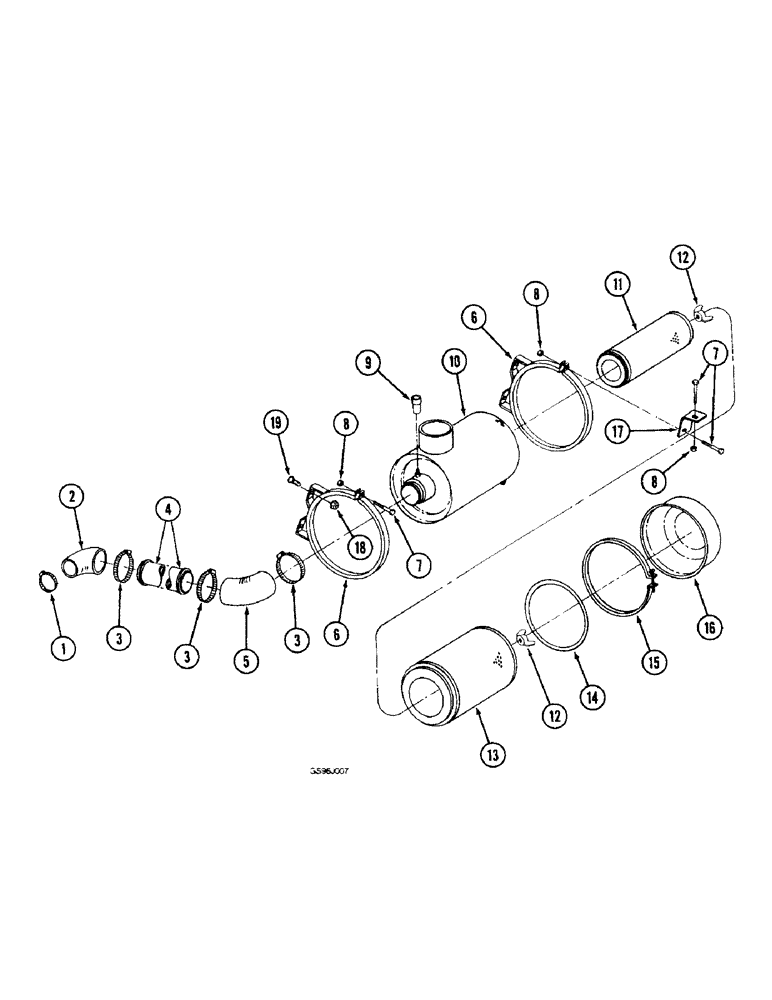

Схема запчастей Case IH 1660 - (2-14) - AIR CLEANER AND ATTACHING PARTS, DT466B ENGINE (01) - ENGINE
8
8
3
3
15
6
7
12
16
1
11
17
12
6
18
3
10
7
19
14
4
9
5
13
8
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

146569C1

CLAMP

- hose, No. 56 type F, retaining

1шт.

2

548222R1

INTAKE AIR HOSE,3.00" ID, 4.00" ID x 4.25"

ELBOW - inlet engine

1шт.

3

146570C1

CLAMP

- hose, No. 72 type F, retaining

3шт.

4

1275739C1

AIR INTAKE TUBE,4" OD, 360 mm Length

TUBE - air cleaner outlet

1шт.

5

218899R1

ELBOW

HOSE - elbow, air cleaner outlet

1шт.

6

A56089

SUPPORT

BAND - air cleaner

2шт.

7

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

3шт.

8

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

9

582214C1

INDICATOR

- air restriction

1шт.

10

84586C91

AIR CLEANER

CLEANER ASSEMBLY - air, no longer available, order cleaner assembly 1541611C1, parts list Fig. 2-16, Includes: 11 - 16

1шт.

11

932390C1

AIR FILTER

ELEMENT - safety

1шт.

12

L35499

NUT

- wing

2шт.

13

932391C2

AIR FILTER

ELEMENT - primary

1шт.

14

N6661

O-RING,10.62" ID x 0.27" Width

- dust cup

1шт.

15

L30936

CLAMP

- body

1шт.

16

1275837C1

HOUSING

CUP - air cleaner

1шт.

17

1321941C2

SUPPORT

- air cleaner

1шт.

18

231-5146

FLANGE NUT,3/8"-16

4шт.

19

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

4шт.
