(9D-14) - INCLINED GRAIN ELEVATOR HEAD, (CONTD)

Запчасти Case IH 1660 (9D-14) - INCLINED GRAIN ELEVATOR HEAD, (CONTD) (16) - GRAIN ELEVATORS & AUGERS

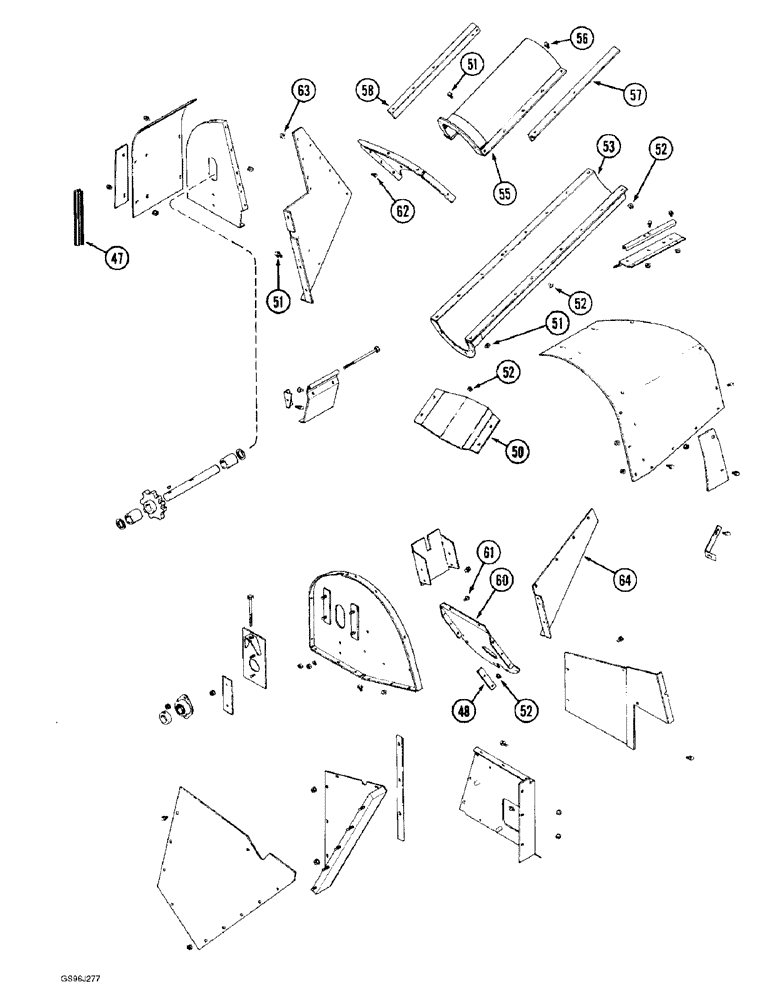

Схема запчастей Case IH 1660 - (9D-14) - INCLINED GRAIN ELEVATOR HEAD, (CONTD) (16) - GRAIN ELEVATORS & AUGERS
57
53
48
62
47
52
52
52
63
58
55
61
51
64
60
51
52
50
51
56
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

47

1321262C1

SEAL

- flanged, head

2шт.

48

1321554C1

PLATE

BAR - filler

1шт.

50

1321556C1

COVER

- U-joint, auger

1шт.

51

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

12шт.

52

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

18шт.

53

1321557C2

TUBE,887 mm Length

TROUGH - tube, lower

1шт.

55

1321560C2

TROUGH

- tube, upper

1шт.

56

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

7шт.

57

1321568C3

ANGLE

BRACKET - support, front

1шт.

58

1321569C3

ANGLE

BRACKET - support, rear

1шт.

60

1979134C1

SUPPORT

PLATE - support, auger bearing (Replaces plate 1321555C1)

1шт.

61

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

2шт.

62

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

6шт.

63

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

16шт.

64

1321552C2

SUPPORT

PLATE - side, front

1шт.
