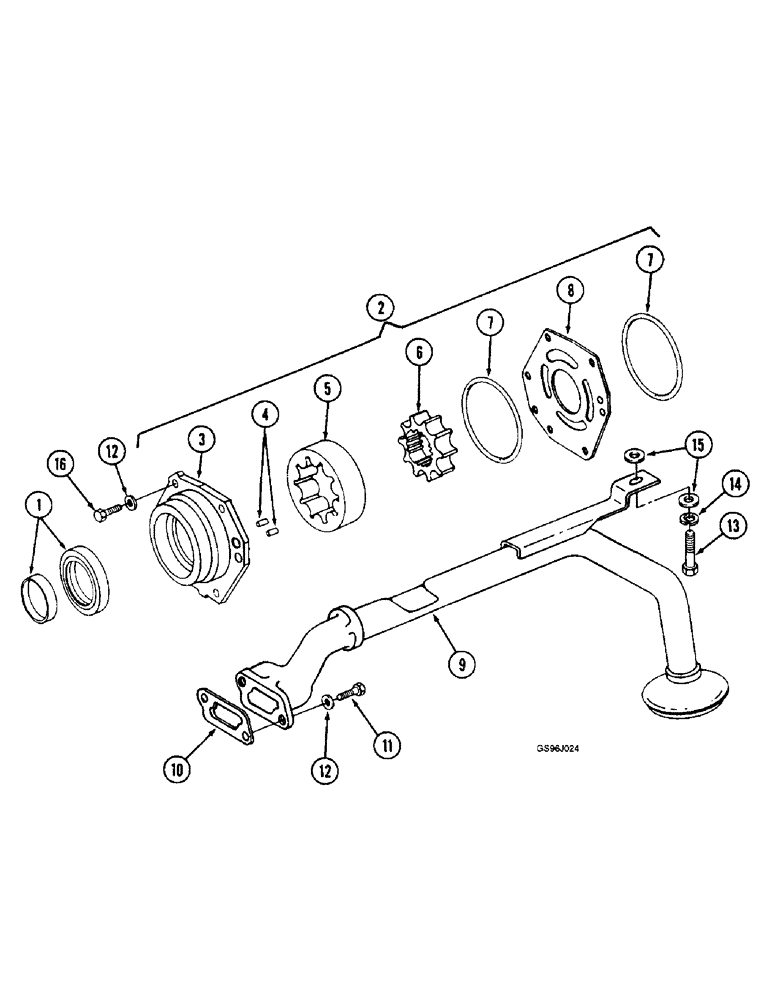

Запчасти Case IH 1660 (2-46) - OIL PUMP AND INLET TUBE, DT466B ENGINE (01) - ENGINE

1

690437C94

SEAL KIT

KIT - front oil seal and wear sleeve, Seal and Sleeve

1шт.

NSS

NOT SOLD SEPARAT

SEAL - oil, front, order kit 690437C94

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE - wear, order kit 690437C94

1шт.

2

1808832C91

PUMP

KIT - oil pump service, Includes: Ref. 3 - 8

1шт.

2

244645A1R

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

2

244645A1C

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

735249C91

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP PUMP - oil, remanufactured, North America only

1шт.

2

1928219C1

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - oil pump, order kit 1808832C91

1шт.

4

680482C1

PIN

PIN - dowel, 5/16 x 5/8 inch, hardened

2шт.

5

NSS

NOT SOLD SEPARAT

ROTOR - outer, order kit 1808832C91

1шт.

6

NSS

NOT SOLD SEPARAT

ROTOR - inner, order kit 1808832C91

1шт.

7

675860C1

RING

O-RING - oil pump housing

1шт.

8

1802879C1

PLATE

PLATE - oil pump housing

1шт.

9

1806843C1

TUBE

TUBE - oil pump inlet

1шт.

10

1802867C1

GASKET

GASKET - oil pump inlet tube

1шт.

11

326-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

BOLT, Hex, 5/16"-18 x 2", G8

2шт.

12

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

WASHER - flat, 11/32 x 11/16 x 3/32 inch, hardened

8шт.

13

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

BOLT, Hex, 3/8"-16 x 1 1/4", G8, Full Thd

1шт.

14

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

15

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

WASHER - flat, 13/32 x 13/16 x 3/32 inch, hardened

2шт.

16

27971R1

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 8

BOLT - hex, 5/16 NC x 1-1/8 inch, grade 8

1шт.
