(2-50) - OIL LEVEL GAUGE AND FILLER TUBE, DT466B ENGINE

Запчасти Case IH 1660 (2-50) - OIL LEVEL GAUGE AND FILLER TUBE, DT466B ENGINE (01) - ENGINE

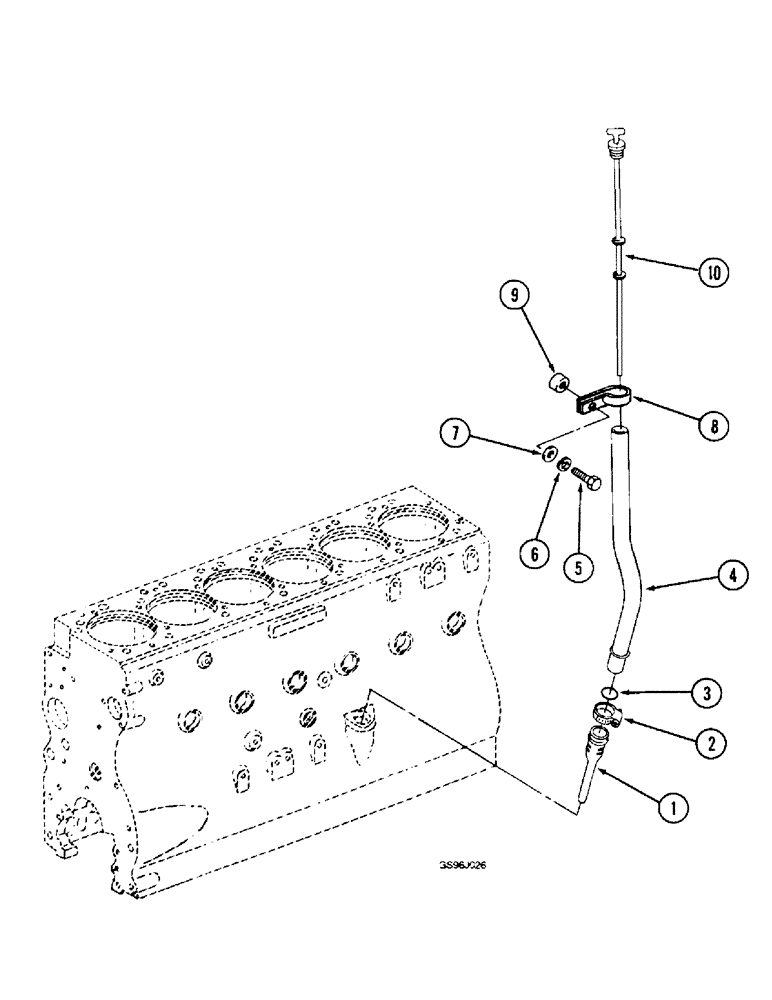

Схема запчастей Case IH 1660 - (2-50) - OIL LEVEL GAUGE AND FILLER TUBE, DT466B ENGINE (01) - ENGINE
9
5
3
7
2
6
1
10
8
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

691846C1

TUBE

- oil level gauge

1шт.

2

690835C1

CLAMP

- tube

1шт.

3

60352D

GASKET

- tube seal

1шт.

4

1808159C1

TUBE,1.50" OD

- oil filler and gauge

1шт.

5

326-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

1шт.

8

683823C1

CLAMP

- oil filler tube

1шт.

9

685605C1

SPACER

- clamp, oil filler tube

1шт.

10

691946C1

ELECTRICAL GAUGE

GAUGE - level, oil

1шт.
