(2-52) - ENGINE RAILS AND SUPPORTS, DT466B ENGINE

Запчасти Case IH 1660 (2-52) - ENGINE RAILS AND SUPPORTS, DT466B ENGINE (01) - ENGINE

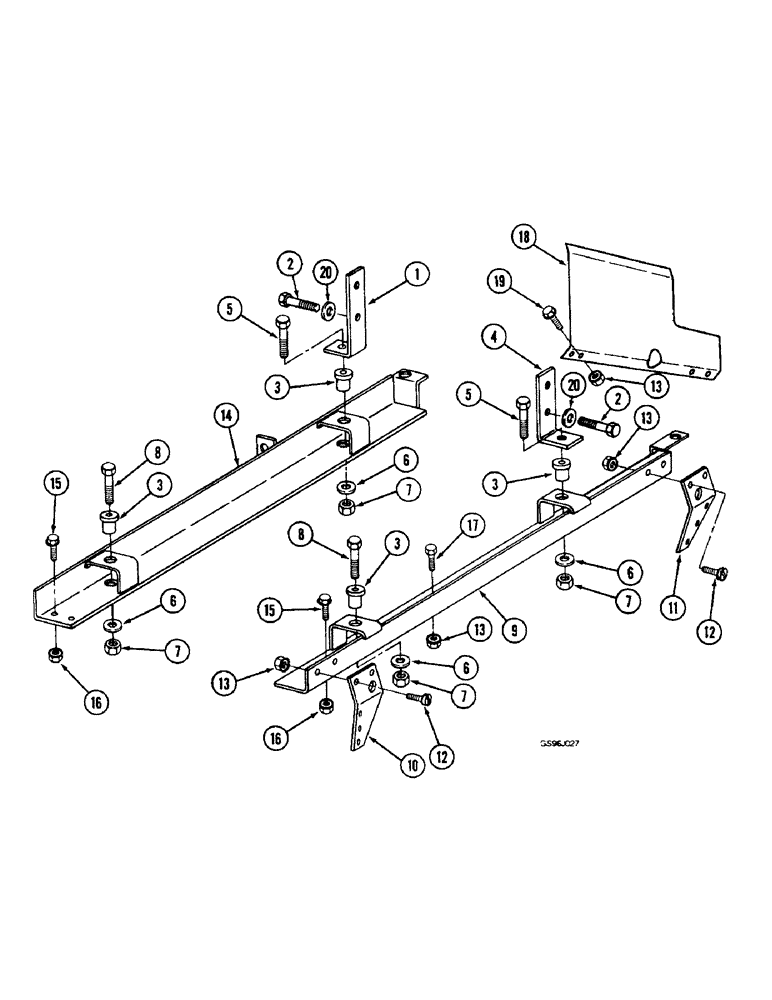

Схема запчастей Case IH 1660 - (2-52) - ENGINE RAILS AND SUPPORTS, DT466B ENGINE (01) - ENGINE
1
10
5
16
3
18
7
11
3
7
6
14
2
7
13
12
8
13
13
3
20
12
7
6
6
16
8
4
9
2
6
13
15
5
20
3
17
15
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

191365C1

SUPPORT

- engine, front left-hand

1шт.

2

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

2шт.

2

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

2шт.

3

194915C2

ISOLATOR,13.72mm ID x 45.97mm OD x 50.04mm L

INSULATOR - engine snubber, front and rear

4шт.

4

191364C1

SUPPORT

- engine, front, right-hand

1шт.

5

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

6

107813R1

WASHER

- flat, 21/32 x 2-1/2 x 11/64 inch

4шт.

7

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

8

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

- hex, 5/8 NC x 3-1/4 inch

2шт.

9

182957C3

RAIL ASSY.

RAIL - engine, right-hand

1шт.

10

182912C3

SUPPORT

- engine rail, left-hand

1шт.

11

182913C3

SUPPORT

- engine rail, right-hand

1шт.

13

231-5146

FLANGE NUT,3/8"-16

22шт.

14

182951C2

RAIL ASSY.

RAIL - engine, left-hand

1шт.

15

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

8шт.

16

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

17

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

8шт.

18

1327681C1

SUPPORT

- air deflector

1шт.

19

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

4шт.

20

495-81030

WASHER,21/32" x 2" x .179"

- flat, 21/32 x 2 x 11/64 inch

2шт.

12

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

10шт.
