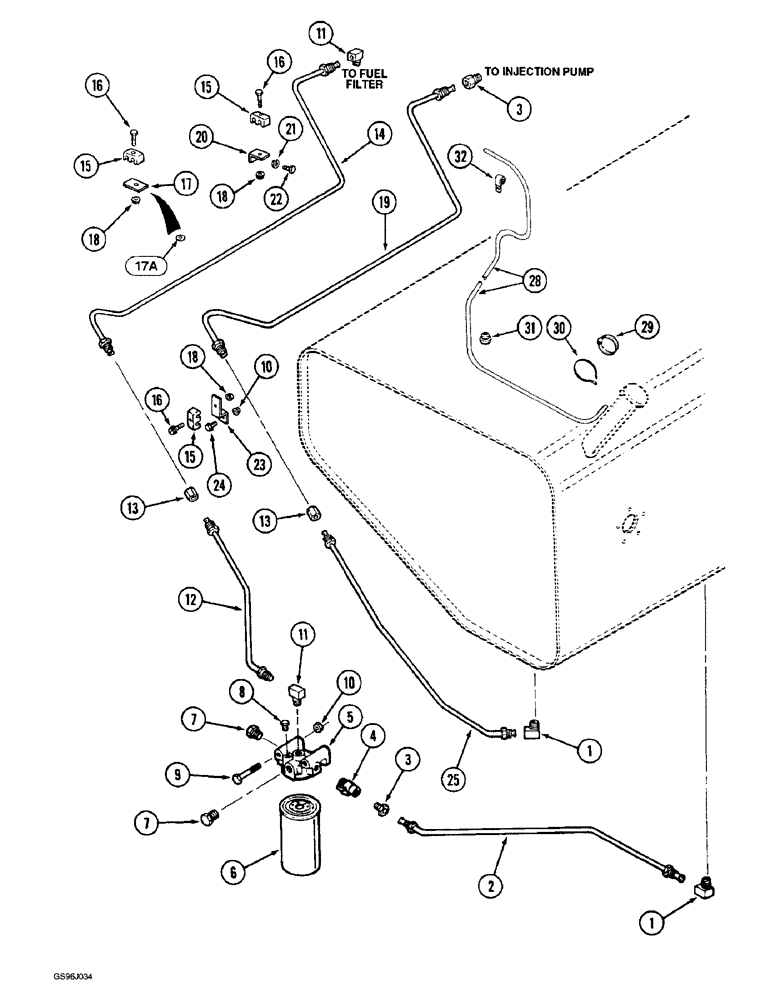

Запчасти Case IH 1660 (3-08) - FUEL LINES AND FUEL FILTER (02) - FUEL SYSTEM

1

144535R1

ELBOW

- 90 degree, special, 3/8 inch inverted flare, fuel line lower tubes

2шт.

2

1315507C1

FUEL TUBE,0.375" OD, 662.9, 292.1 mm Length

TUBE - fuel line, filter base to tank

1шт.

3

222-1016

HYD CONNECTOR,5/8"-18 Inv Fl x 1/4" NPT

CONNECTOR, HYD., 5/8"-18 Inv Fl x 1/4" NPT

2шт.

4

217-94

SHUT-OFF VALVE

VALVE - fuel shutoff

1шт.

5

612277C2

FILTER HEAD

BASE - fuel filter

1шт.

If dealer is looking for a pump that goes on top of Ref. 5, look in the 1620 book. May have been added.

1шт.

6

A184776

FUEL FILTER

FILTER - fuel (Replaces filter 702255C1)

1шт.

7

221-841

PLUG

- hex socket, 1/4 inch PT

2шт.

8

217-84

PLUG,Hex Hd, 1/8"-27, Brass

- hex, 1/8 inch PT

1шт.

9

413-564

BOLT,Hex, 5/16" - 18 x 4", Gr 5

- hex, 5/16 NC x 4 inch

2шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

11

222-1026

ELBOW,90 Degree, 5/8"-18 Inv Fl x 1/4" NPT

2шт.

12

1315506C1

FUEL TUBE

TUBE - fuel supply, lower

1шт.

13

222-1055

HYD CONNECTOR,3/8" Inv Fl

COUPLING - 5/8-18 inch inverted flare

2шт.

14

198009C1

FUEL TUBE

TUBE - fuel line pressure upper

1шт.

15

183825C1

CLAMP

- fuel line tube

3шт.

17

198462C1

PLATE

- fuel line upper tubes support, no longer used, order item 17A

1шт.

17a

495-81121

WASHER,.344" x 1 1/2" x .060"

- flat, 11/32 x 1-1/2 x 1/16 inch

1шт.

18

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

19

198008C1

FUEL TUBE

TUBE - fuel line return upper

1шт.

20

196518C1

SUPPORT TUBE

ANGLE - fuel line upper tubes support

1шт.

21

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

22

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW, SELF TAPPING, hex head, 5/16 NC x 3/4" (Replaces bolt 172455)

1шт.

23

196517C1

SUPPORT TUBE

SUPPORT - fuel line lower tubes

1шт.

24

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

1шт.

25

183653C2

FUEL TUBE

TUBE - fuel return, lower

1шт.

28

NSS

NOT SOLD SEPARAT

HOSE - fuel vent, 125 inch (3175 mm) long, cut from bulk hose 74813C1 below

1шт.

29

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adjustable, 1/4 - 5/8 inch diameter, if equipped

1шт.

30

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

31

195803C1

GROMMET

- 3/8 inch ID, if equipped

1шт.

32

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type, if equipped

3шт.

74813C1

TUBE,7.09mm ID x 15240mm L

HOSE - bulk, 50 foot (15240 mm) long, sold by the foot

1шт.

16

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

3шт.
