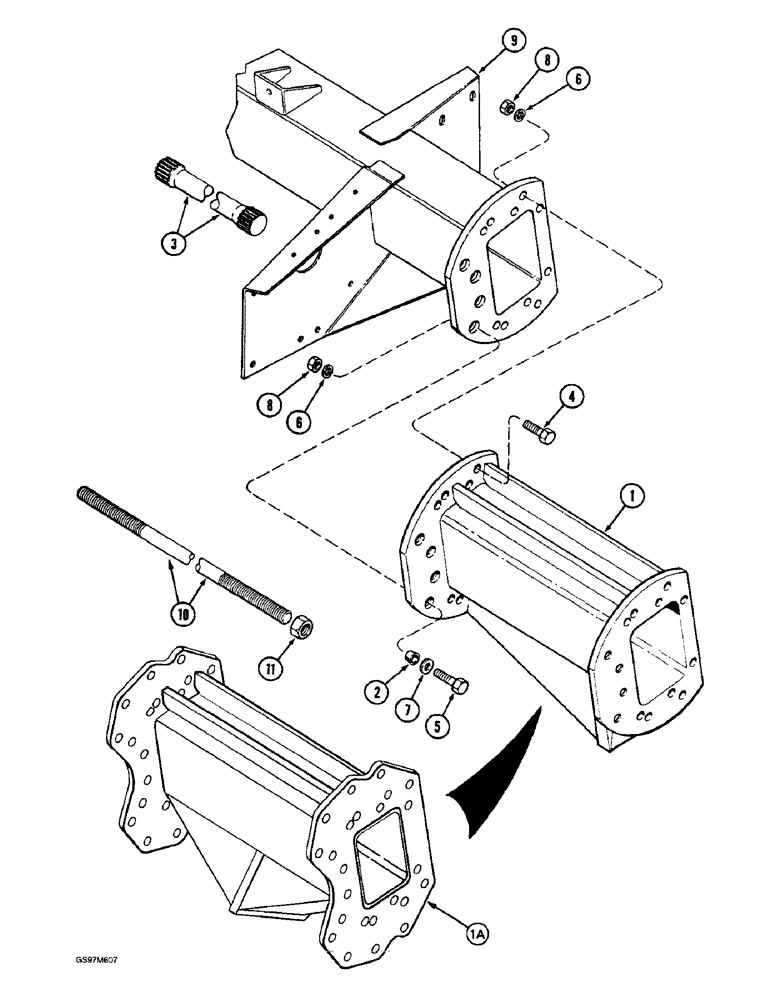

Запчасти Case IH 1660 (6-72) - AXLE EXTENSION, DUAL WHEEL, EXTRA WIDE SINGLE WHEEL (03) - POWER TRAIN

1

184364C1

EXTENSION

AXLE - extension, left-hand, no longer available, order axle 241106A1, item 1A

1шт.

1

184365C1

EXTENSION

AXLE - extension, right-hand

1шт.

1a

241106A1

EXTENSION ASSY.

AXLE - extension, left hand, 18 in.

1шт.

2

163909C1

BUSHING,19.15mm ID x 28.57mm OD x 12.7mm L

- tapered

8шт.

3

184375C1

SHAFT

- axle drive, left-hand

1шт.

3

184376C1

SHAFT

- axle drive, right-hand

1шт.

4

426-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

- hex, 3/4 NC x 2-1/4 inch, grade 8

12шт.

5

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, grade 8

4шт.

6

492-11075

LOCK WASHER,3/4"

3/4"

16шт.

7

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

8шт.

8

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8

16шт.

9

REF

INSTRUCTION

AXLE - drive, See Figure 6-70

1шт.

10

184358C1

ROD

- reinforcement, extension

1шт.

11

232-41320

LOCK NUT,1 1/4"-7, GC

NUT, LOCK, 1 1/4"-7, GC

4шт.
