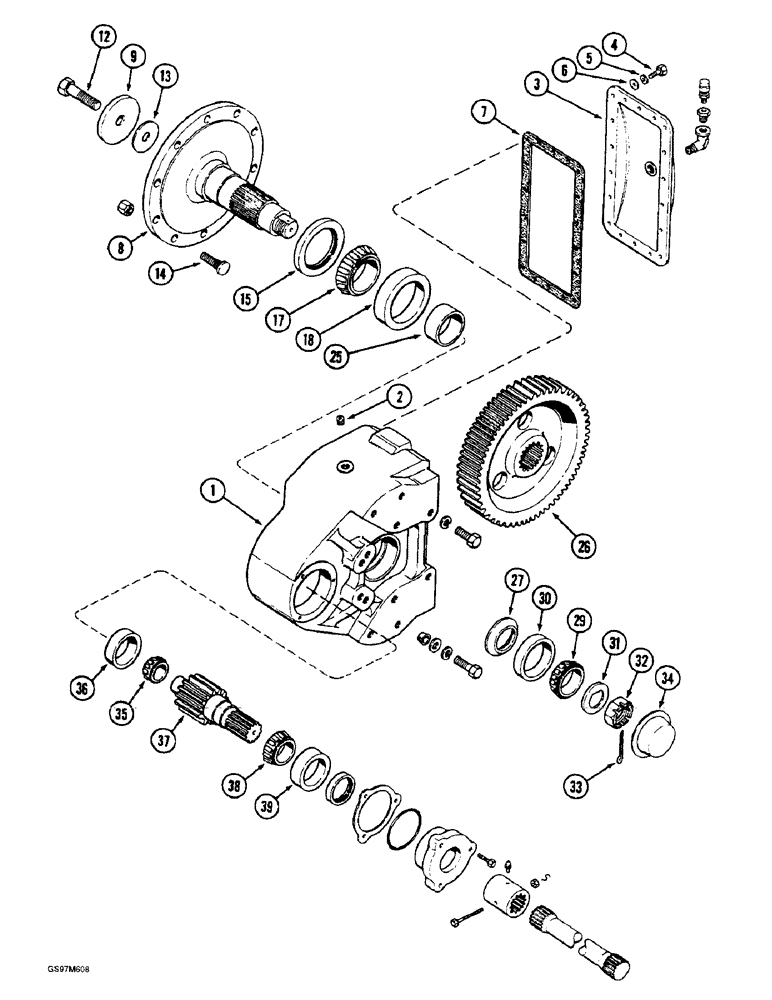

Запчасти Case IH 1660 (6-74) - FINAL DRIVE, PRIOR TO P.I.N. JJC0103800 (03) - POWER TRAIN

92769C93

DRIVE ASSY.

DRIVE ASSEMBLY - final, no longer available as an assembly, order components, Includes: Ref. 1 - 39 and 40 - 49 on Figure 6-76

2шт.

Prior to P.I.N. JJC0041095.

1шт.

1342938C1

DRIVE ASSY.

DRIVE ASSEMBLY - final, Includes: Ref. 1 - 39 and 40 - 49 on Figure 6-76

2шт.

P.I.N. JJC0041095 through JJC0103799.

1шт.

1342937C1R

REMAN-GEAR ASSY

Final Drive; For N.A. only

2шт.

1342937C1C

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

1

86851C2

HOUSING

HOUSING - final drive

1шт.

2

221-887

PLUG

PLUG - square socket, 3/4 inch PT

2шт.

3

86839C2

COVER

COVER - housing

1шт.

4

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

BOLT, Hex, 1/2"-13 x 1 1/2", G8, Full Thd

12шт.

4

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

BOLT, Hex, 3/8"-16 x 1 1/4", G8, Full Thd

6шт.

5

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

18шт.

6

396-21053

WASHER,17/32" x 1 1/16" x .134"

WASHER, , Hardened 17/32" x 1 1/16" x .134"

12шт.

6

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

WASHER - flat, 13/32 x 13/16 x 3/32 inch, hardened

6шт.

7

196435C2

GASKET

GASKET - housing cover

1шт.

8

1315484C91

SHAFT

SHAFT - final drive

1шт.

9

1277033C1

WASHER

WASHER - final drive shaft, if used

1шт.

12

28103R1

BOLT,Hex, 1" - 8 x 3 3/4", Gr 8

BOLT - hex, 1 NC x 3-3/4 inch, grade 8, if used

1шт.

13

1277039C1

SHIM

SHIM - final drive shaft, 0.015 inch, if used

1шт.

13

1277040C1

DISC

SHIM - final drive shaft, 0.018 inch, if used

1шт.

13

1277041C1

SHIM

SHIM - final drive shaft, 0.021 inch, if used

1шт.

14

565130R3

BOLT,3/4" - 16 x 2 5/8", Class 8

BOLT - wheel

10шт.

14

184430C1

BOLT

BOLT - wheel, dual

10шт.

15

401905R91

OIL SEAL,98.93mm ID x 152.58mm OD x 15.88mm Thk

SEAL - oil, outer bearing

1шт.

283445C91

BEARING ASSY,85.03mm ID x 150.09mm OD x 44.4.5mm W

BEARING ASSEMBLY - two-piece, includes cone and cup, Includes: Ref. 17 & 18

1шт.

17

NSS

NOT SOLD SEPARAT

BEARING - tapered roller, outer, 3-11/32 inch ID, order bearing assembly

1шт.

18

NSS

NOT SOLD SEPARAT

CUP - bearing, outer, 5-29/32 inch OD, order bearing assembly

1шт.

25

401906R1

SPACER

SPACER - gear

1шт.

26

401907R1

GEAR

GEAR - drive, 66 tooth

1шт.

Prior to P.I.N. JJC0041095.

1шт.

26

1349052C1

GEAR

GEAR - drive, 75 tooth

1шт.

P.I.N. JJC0041095 through JJC0103799.

1шт.

27

401908R2

SPACER

SPACER - gear

1шт.

66116R91

BEARING ASSY,66.67mm ID x 112.71mm OD x 30.16mm W

BEARING ASSEMBLY - two-piece, includes cone and cup, Includes: Ref. 29 & 30

1шт.

29

NSS

NOT SOLD SEPARAT

BEARING - tapered roller, inner, 4-7/16 inch OD, order bearing assembly

1шт.

30

NSS

NOT SOLD SEPARAT

CUP - bearing, inner, 2-5/8 inch ID, order bearing assembly

1шт.

31

403896R1

WASHER

WASHER - final drive

1шт.

32

147030R1

SLOTTED NUT

NUT - hex, slotted, special

1шт.

33

432-840

COTTER PIN,1/8" x 2 1/2"

1/8" x 2 1/2"

1шт.

34

403895R1

COVER

CAP - main shaft

1шт.

35

401911R91

BEARING ASSY,44.45mm ID x 31.75mm W

BEARING - tapered roller, 1-3/4 inch ID, pinion shaft outer

1шт.

36

61012R1

BEARING, CUP,93.66mm OD x 25.4mm W

CUP - tapered roller bearing, 3-11/16 inch OD, pinion shaft outer

1шт.

37

401912R1

SHAFT

SHAFT - pinion

1шт.

Prior to P.I.N. JJC0041095.

1шт.

37

1342994C1

SHAFT

SHAFT - pinion

1шт.

P.I.N. JJC0041095 through JJC0103799.

1шт.

38

M53320

BEARING ASSY

BEARING - tapered roller, 2-1/4 inch ID, pinion shaft inner

1шт.

39

1968292C1

BEARING

CUP - tapered roller bearing, 4-1/8 inch OD, pinion shaft inner

1шт.
