Запчасти Case IH 1660 (5-06) - STEERING SYSTEM, SUPPLY AND RETURN, P.I.N. JJC0103800 AND AFTER (04) - STEERING

1

REF

INSTRUCTION

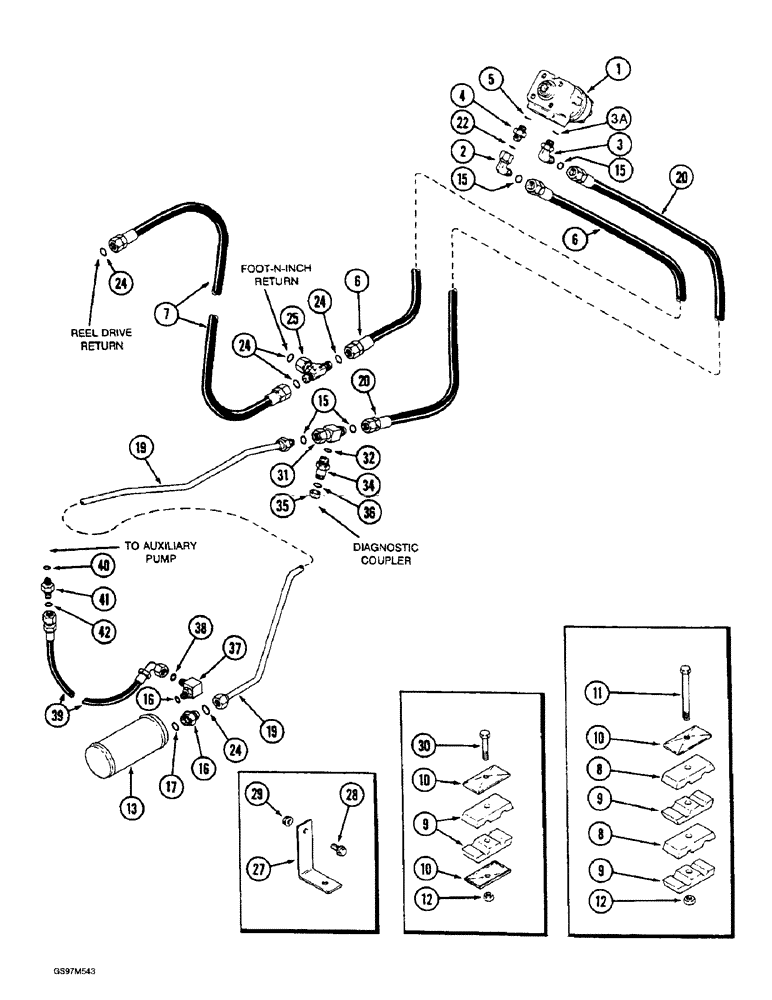

PUMP ASSEMBLY - steering, parts list Figure 5-10

1шт.

2

201-319

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

- 90 degree, 11/16-16 inch face seal x swivel face seal, Incl Ref 3A

1шт.

3

201-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

- 90 degree, 11/16-16 face seal x 3/4-16 inch adjustable O-ring boss, Includes: Ref. 3A

1шт.

3a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

ADAPTER - straight, 11/16-16 face seal x 3/4-16 inch O-ring boss, Includes: Ref. 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

1989505C1

HOSE

- steering hand pump return, 990 mm (39 inch) long

1шт.

7

1989506C1

HOSE

- steering return, 1385 mm (54-1/2 inch) long

1шт.

8

1347072C1

CLAMP

- 3/4 inch OD

2шт.

9

1541538C1

CLAMP

- two-piece (Replaces clamp 1989362C1)

3шт.

10

1347127C1

PLATE

- clamp

4шт.

11

424-564

BOLT,Hex, 5/16" - 18 x 4", Gr 2

- hex, 5/16 NC x 4 inch, grade 2

2шт.

12

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

3шт.

13

1994631C2

LIMITER, TRAVEL

ATTENUATOR - 0.7 liter

1шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

16

201-126

HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB

ADAPTER - straight, 13/16-16 face seal x 9/16-18 inch O-ring boss, Includes: Ref. 17

1шт.

19

1989287C2

HYD TUBE

TUBE - steering pressure

1шт.

20

1989504C1

HOSE

- steering hand pump, supply, 2185 mm (86 inch) long

1шт.

22

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

24

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

5шт.

25

201-411

TEE,13/16"-16 ORFS x 13/16"-16 Sw Br

- 13/16-16 inch swivel face branch x face x face

1шт.

27

1989343C1

ANGLE BAR

ANGLE - tube support

1шт.

28

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

29

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

30

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

1шт.

31

1541791C1

TEE

ASSEMBLY - special, steering diagnostic, Includes: Ref. 32

1шт.

34

1541849C1

COUPLING

ASSEMBLY - diagnostic, Includes: Ref. 35 & 36

1шт.

35

H434163

DUST CAP

CAP - dust

1шт.

37

1541627C1

ELBOW

- special, restrictor

1шт.

38

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

39

1989363C2

HOSE

- steering pressure, 1100 mm (43-5/16 inch) long

1шт.

40

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

41

201-126

HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB

ADAPTER - straight, 13/16-16 face seal x 9/16-18 inch O-ring boss, Includes: Ref. 42

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

32

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

36

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

42

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
