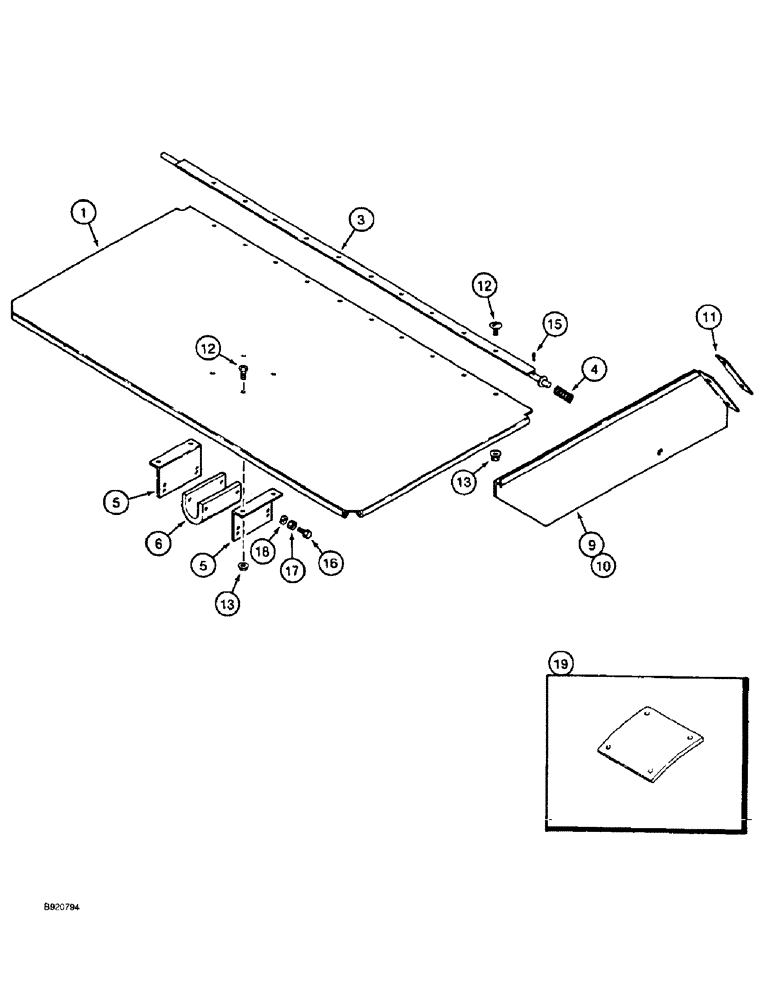

Запчасти Case IH 1660 (5-41A) - STEERING AXLE SHIELD, STATIONARY, EXTENDED LENGTH CLEANING (04) - STEERING

1

1325596C2

SHIELD

- steering axle

1шт.

3

195450C2

SUPPORT ASSY.

SUPPORT - axle shield

1шт.

4

203942C1

SPRING

- shield pivot

1шт.

5

183093C1

BRACKET

ANGLE - shield support

2шт.

6

183094C1

CUSHION

STRIP - shield support

1шт.

9

1325374C3

COVER

PLATE - hood extension, left-hand

1шт.

10

1325375C3

COVER

PLATE - hood extension, right-hand

1шт.

11

1325376C1

PLATE

BRACKET - hood extension retaining

2шт.

12

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4" (Replaces screw 632227R1)

16шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC (Replaces nut 938017R1)

16шт.

15

38-1814

LOCK PIN,1/8" x 7/8", Slotted

Pin, (Replaces pin 17271R1) 1/8" x 7/8", Slotted

1шт.

16

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 x 3/4 inch

4шт.

17

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

4шт.

18

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

19

1345126C1

CUSHION

- axle shield

1шт.

20

1968976C1

SEALING STRIP

SEAL - shield, not shown

2шт.
