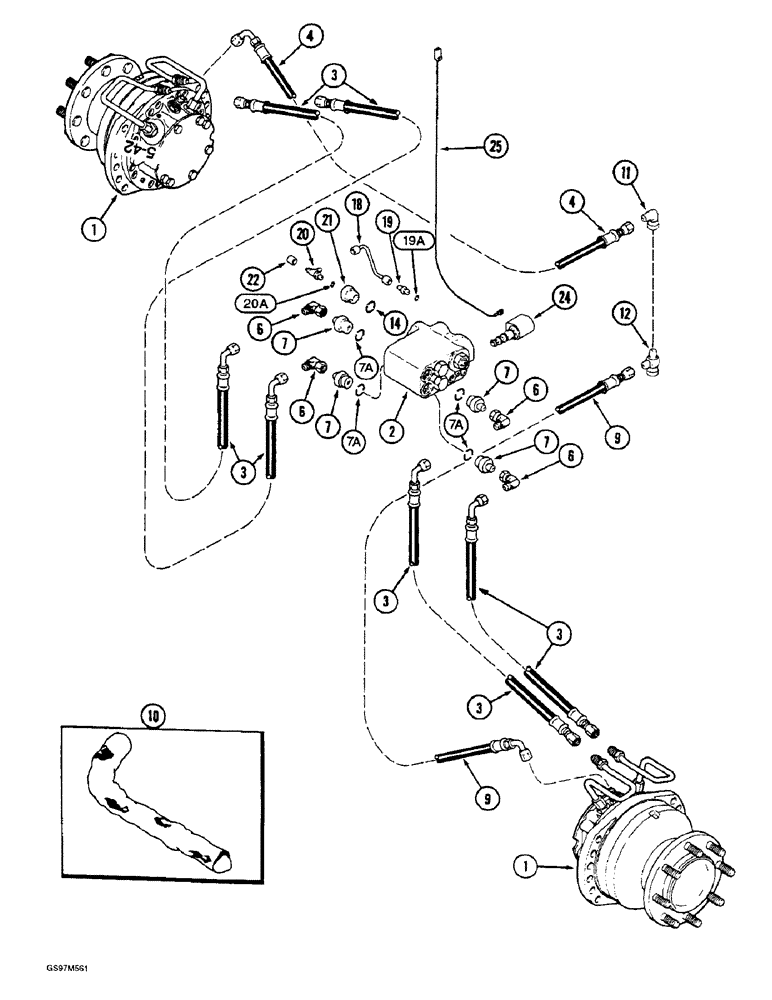

Запчасти Case IH 1660 (5-44) - AXLE HYDRAULIC MOTOR SYSTEM, POWER GUIDE AXLE (04) - STEERING

1

121436A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - drive, parts list Figure 5-62

2шт.

87300716R

REMAN-HYDROSTAT MOTO

1660 - CASE IH AXIAL-FLOW COMBINE (S/N JJC0038346 & AFTER) - 1/86-12/92, Reman For New P/N's 121436A1 & 87300716

2шт.

87300716C

CORE-HYDROSTAT MOTOR

Return Number

1шт.

2

1978000C1

VALVE

ASSEMBLY - selector, parts list Figure 5-60

1шт.

3

1970387C1

HOSE

- pressure, motor drain, 1448 mm (57 inch) long

4шт.

4

1970388C1

HOSE

- pressure, motor drain, 1702 mm (67 inch) long

1шт.

6

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 degree swivel, 3/4-16 inch flare (Replaces elbow 9410255)

4шт.

7

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 3/4-16 flare x 1-1/16-12 inch O-ring boss, Includes: Ref. 7A

4шт.

7a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

4шт.

9

1970389C1

HOSE

- motor drain, 1549 mm (61 inch) long

1шт.

10

1970108C1

PROTECTIVE COVER

SLEEVE - nylon, 60 (2-3/8) ID x 1219 mm (48 inch) long

2шт.

11

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel

1шт.

12

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x swivel

1шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

18

1970140C1

TUBE,4.78 mm ID

- pressure, charge

1шт.

19

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER - straight, 7/16-20 flare x O-ring boss, Incl. Ref. 19A

1шт.

19a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

20

218-5289

TEE,7/16" - 20 Male JIC x 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 7/16-20 inch flare branch x flare x adjustable O-ring boss, Includes: Ref. 20A

1шт.

20a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

21

1970176C1

PLUG

- hex, special, hydraulic

1шт.

22

218-752

CAP,37 Degree, 7/16"-20

Hex 37º, 7/16"-20

1шт.

24

REF

INSTRUCTION

SOLENOID ASSEMBLY - spool, charge pressure, parts list Figure 5-60

1шт.

25

1964572C2

WIRE HARNESS

CABLE - power, solenoid

1шт.
