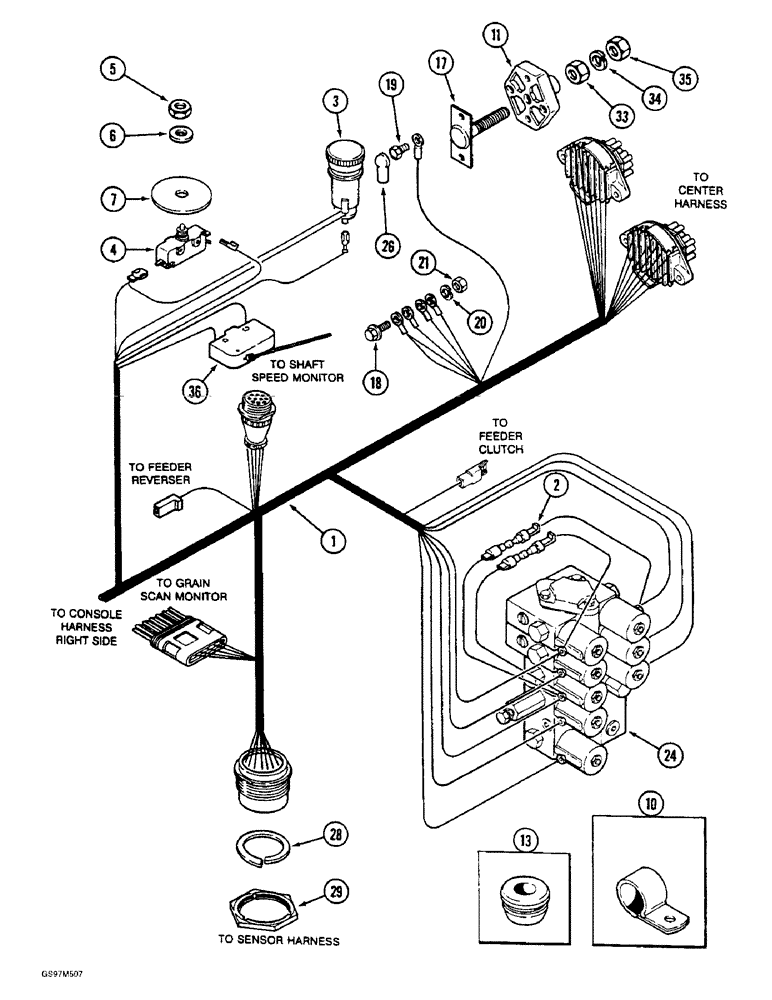

Запчасти Case IH 1660 (4-12) - CONSOLE HARNESS, LEFT-HAND SIDE, PRIOR TO P.I.N JJC0103800 (06) - ELECTRICAL

1

1345237C1

HARNESS

- console

1шт.

2

548239R2

RECTIFIER

DIODE - nonlocking, console harness

2шт.

3

1964773C1

CIGAR LIGHTER

LIGHTER - cigar, 12 volt (Replaces lighter 245576C1)

1шт.

3

A177447

LIGHTER, CIGARETTE

ELEMENT - pop up, lighter, cigarette, purchase locally (Replaces element 378781R1)

1шт.

4

1983341C1

SWITCH

- parking brake warning lamp

1шт.

5

A39888

NUT

- 3/8-32, hex, special, lamp switch (Replaces nut 68107H)

1шт.

6

166817C2

WASHER

- special, lamp switch

1шт.

7

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened, If used

1шт.

7

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

- flat, 17/32 x 1 x 1/16 inch, if used

1шт.

10

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type, front

1шт.

11

468647C2

BLOCK ASSY.

BLOCK - junction

1шт.

261-2478

SELF-TAP SCREW,1/4 -20x1/2 F Pan

SCREW - self-tapping, pan Phillips, 1/4 NC x 1/2 inch

1шт.

13

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

- rubber, 3/8 inch ID, console harness

1шт.

17

1964561C1

BAR

- junction block buss

1шт.

18

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

2шт.

19

326-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

2шт.

20

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

24

REF

INSTRUCTION

VALVE ASSEMBLY - control, parts list Figure 8-56 or 8-60

1шт.

26

399470R1

BOOT

- cable

1шт.

28

490691C1

LOCK WASHER,#18 Shell

- lock, harness connector

1шт.

29

490692C1

LOCK NUT,#18 Shell

- hex, 1-1/2 inch, harness connector

1шт.

33

329-146

JAM NUT,Jam, 3/8"-16, G5

1шт.

34

492-11038

LOCK WASHER,3/8"

1шт.

35

425-106

NUT,3/8"-16, Cl 5

1шт.
